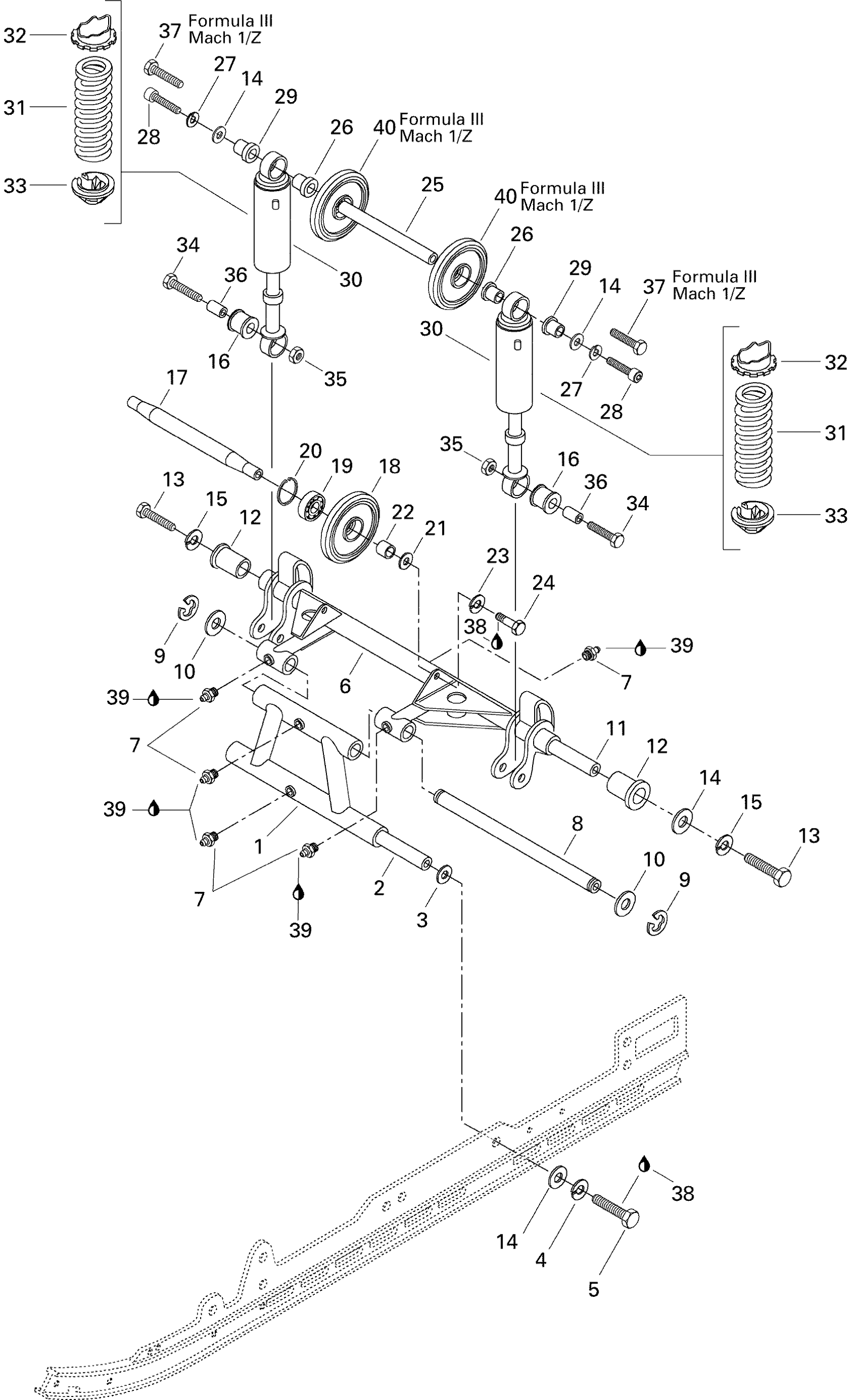

Ski-Doo Formula III, 1996 08- Rear Arm Form III Diagram

#

Description
Price

1

Rear Arm Pivot

503137700

Unavailable

2

Rear Shackle Lower Axle

503087200

Unavailable

3

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

4

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

5

Hex. Screw M10 X 35

207103544

$1.58

6

Rear Arm

503141100

Unavailable

7

Grease Fitting

408200700

$3.49

8

Upper Axle

503139000

Unavailable

9

Circlip

371907000

Unavailable

10

Washer

503145400

Unavailable

11

Upper Axle

503142100

Unavailable

12

CUSHION - Call your local BRP dealership

414530000

Unavailable

13

Hex. Screw M10 X 55

207005544

$2.22

14

Flat Washer 10 mm

234001410

$1.26

15

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

16

Cushion

414942300

Unavailable

17

Axle

503150000

Unavailable

18

Idler Wheel 102

570029100

Unavailable

19

Ball Bearing

405404600

$25.99

20

Cirplip

371907600

Unavailable

21

Hardened Washer

503004400

Unavailable

22

Spacer

503135800

Unavailable

23

Lock Washer 8 mm

234181401

$0.92

24

Hex. Screw M8 X 35

207083544

$1.15

25

Shock Pivot

503140000

Unavailable

26

Pad

414796900

Unavailable

27

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

28

Not Available As Spare Parts

XXX

Unavailable

29

Spacer

503142900

Unavailable

30

Rear Shock

414953500

Unavailable

31

Spring

415013900

Unavailable

32

Adjustment Cam

505073625

$12.99

33

Spring Stopper

503149700

Unavailable

34

Hex. Screw M10 X 45

207004544

$1.69

35

Elastic Locking Nut M10 X 1.5

233601416

$1.69

36

Spacer

503163700

Unavailable

37

Hex. Screw M10 X 35

207103544

$1.58

38

Loctite 271, 10 ml

293800005

$26.99

39

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

40

Protector

414771100

Unavailable
