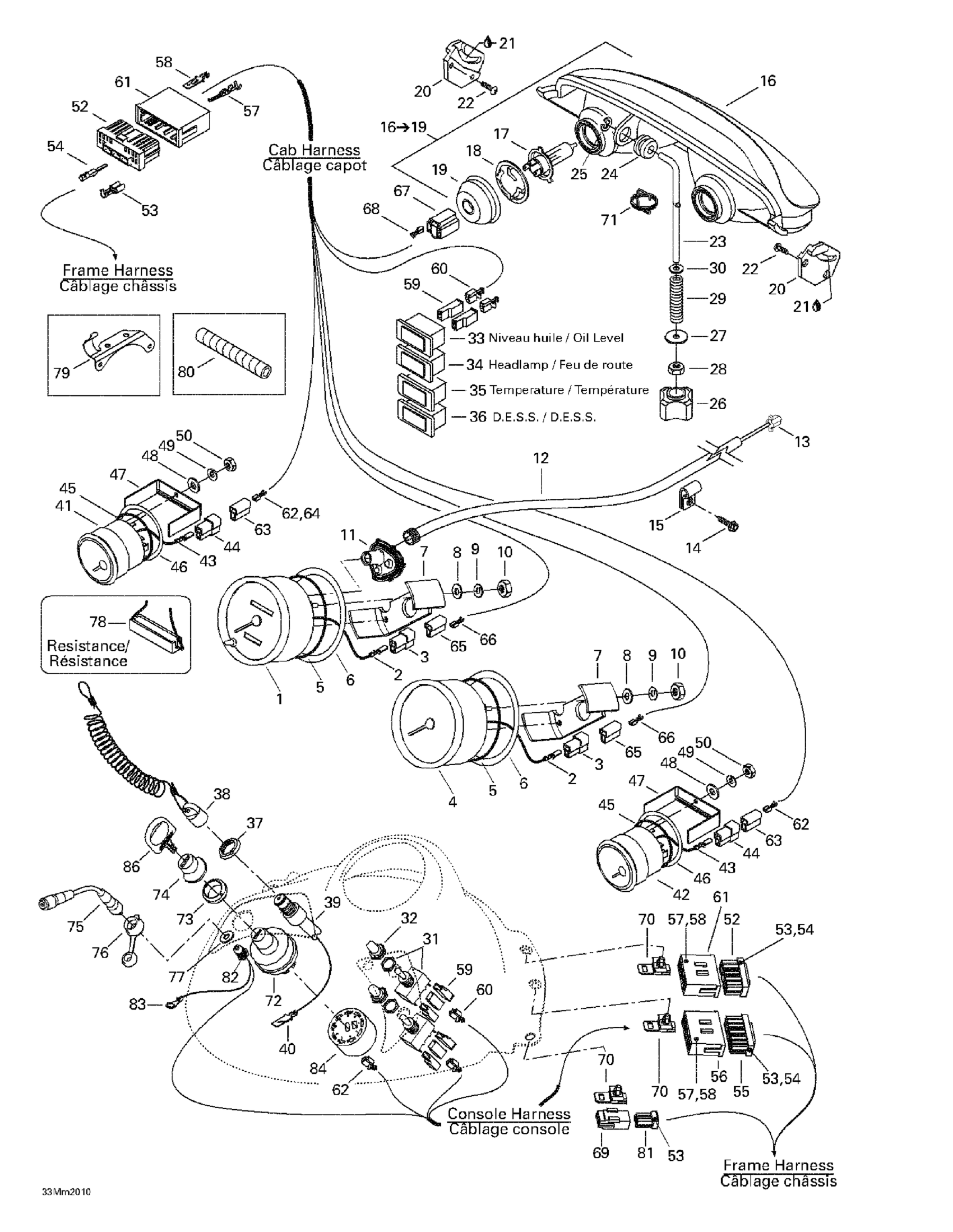

Ski-Doo Formula Deluxe 600/700, 2000 Electrical System Diagram
#
1
Speedometer, Kmh
515175335
Unavailable
Speedometer, Mph
515175336
Unavailable
2
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
3
MALE HOUSING - Call your local BRP dealership
409204500
Unavailable
4
Tachometer
515175340
Unavailable
5
O-Ring
414807100
Unavailable
6
Washer
517258500
Unavailable
7
Case Holder
414806500
Unavailable
9
Lock Washer
414806700
Unavailable
10
Nut
414806900
Unavailable
11
Drive Angle
515175400
Unavailable
12
Speedometer Cable
415101500
Unavailable
13
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
14
Not Available As Spare Part - Friction Washer
Unavailable
16
Halogen Headlamp Ass'y | Includes 4 to 7
515176311
Unavailable
17
Halogen Bulb, 60/55 W, 12 V ( H4 )
515176274
Unavailable
19
PROTECTOR CAP - Call your local BRP dealership
410607100
Unavailable
20
RH Support
517289300
Unavailable
LH Support
517289400
Unavailable
21
Grease Tube Lmz, 400 G
413707500
Unavailable
22
Headlamp Screw
732601315
Unavailable
23
ADJUSTER ROD - Call your local BRP dealership
517295800
Unavailable
24
Grommet - Call your local BRP dealership
415100800
Unavailable
25
Push Nut
732610072
Unavailable
26
Handle - Call your local BRP dealership
515175548
Unavailable
27
Washer
224060251
Unavailable
28
Elastic Stop Nut M6
232561414
Unavailable
29
SPRING - Call your local BRP dealership
415100600
Unavailable
30
Flat Washer 6 mm
234061410
Unavailable
33
Pilot Lamp (Red)
410109500
Unavailable
34
Pilot Lamp (Blue)
410109600
Unavailable
35
Pilot Lamp, Engine Temperature | SUV 600
410109700
Unavailable
36
Pilot Lamp, Dess | 600 SUV
410113300
Unavailable
38
DESS
515178284
Unavailable
39
DESS SWITCH - Call your local BRP dealership
515175145
Unavailable
41
Temperature Gauge
515175342
Unavailable
42
FUEL GAUGE - Call your local BRP dealership
515175343
Unavailable
43
MALE TERMINAL - Call your local BRP dealership
409210000
Unavailable
45
O-RING - Call your local BRP dealership
414807200
Unavailable
46
WASHER - Call your local BRP dealership
517258600
Unavailable
47
Case Holder
415099800
Unavailable
48
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
49
Lock Washer | SE Models
414833700
Unavailable
50
NUT - Call your local BRP dealership | SE Models
414833600
Unavailable
Tie Wrap 142 mm
293750002
Unavailable
Tie-Rap 173 mm
293750009
Unavailable
52
Female Terminal Housing, 13 Circuits
515175350
Unavailable
53
Female Terminal
515175231
Unavailable
55
FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership
515175349
Unavailable
56
MALE TERMINAL HOUSING, 15 CIRCUITS - Call your local BRP dealership
515175351
Unavailable
58
MALE TERMINAL - Call your local BRP dealership
515175273
Unavailable
62
Female Terminal
561503100
Unavailable
63
Female Housing
409204300
Unavailable
64
Female Terminal
561503100
Unavailable
65
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership
409204600
Unavailable
66
Female Terminal
561503100
Unavailable
67
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership
409202700
Unavailable
68
FEMALE TERMINAL - Call your local BRP dealership
515175320
Unavailable
71
SPRING - Call your local BRP dealership | Europe
515175324
Unavailable
72
IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.
410111300
Unavailable
74
Switch Boot
570013700
Unavailable
75
EXTENSION - Call your local BRP dealership
515175971
Unavailable
78
Resistance
515175241
Unavailable
79
Cable Support
515175254
Unavailable
80
TUBING 6 MM - Call your local BRP dealership
515175442
Unavailable
82
Not Available As Spare Part - Friction Washer
Unavailable
83
Not Available As Spare Part - Friction Washer
Unavailable
84
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership
572150700
Unavailable
85
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
86
Blank Key
415129350
Unavailable
