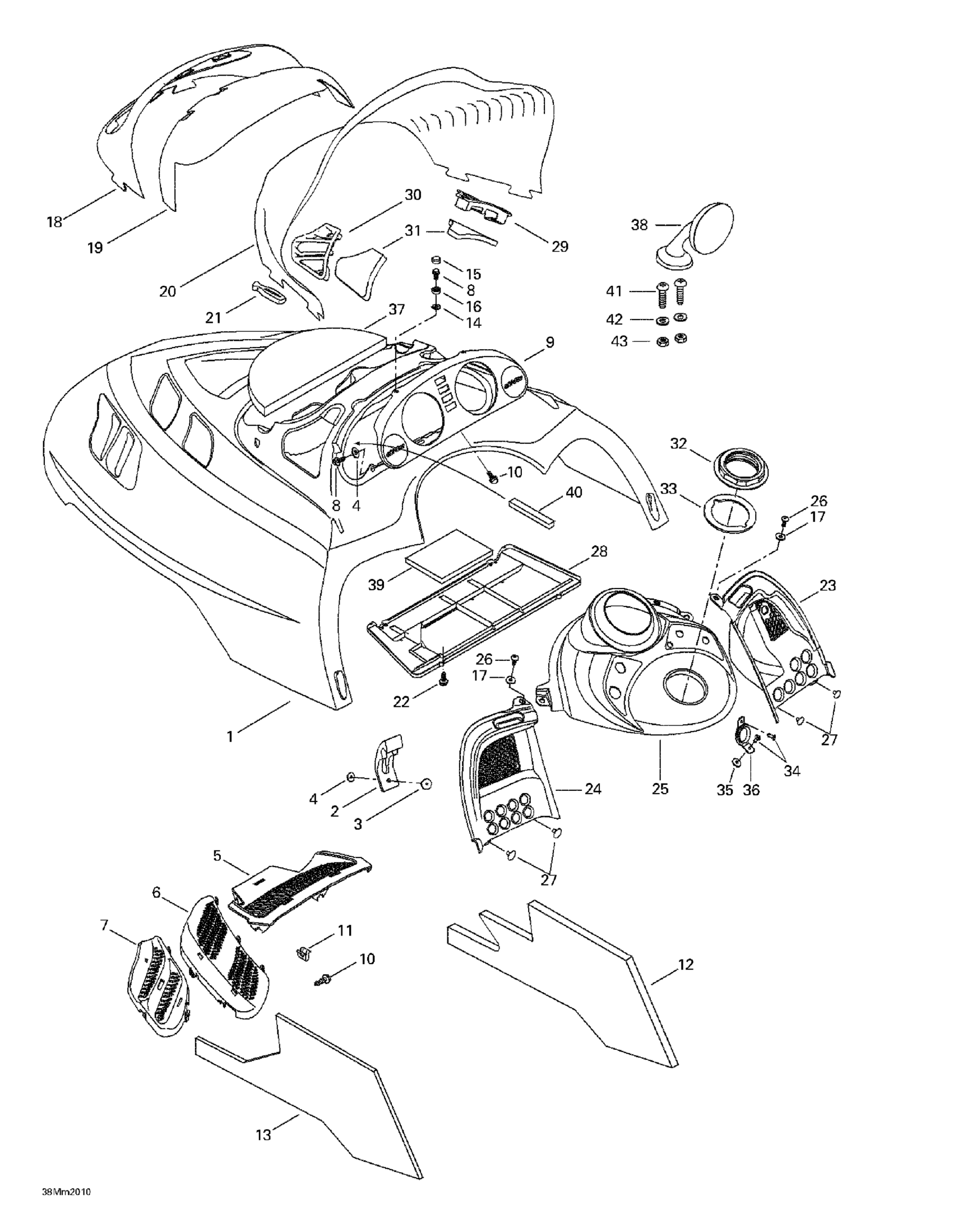

Ski-Doo Formula Deluxe 600/700, 2000 Cab, Console Diagram

#

Description
Price

1

Hood (Pearl Cloud)

517302337

Unavailable

2

Hood Latch

570027100

Unavailable

3

Pop Rivet 3/16"

390906800

Unavailable

4

Washer

517124300

Unavailable

5

CENTER GRILL, BLACK - Call your local BRP dealership

517302026

Unavailable

6

RH Intermediate Grill, Black | Grand Touring 500.

517302028

Unavailable

LH Intermediate Grill, Black | Grand Touring 500.

517302031

Unavailable

7

RH Side Grille

517302034

Unavailable

LH Side Grille

517302036

Unavailable

8

Screw K40 X 10

241140060

$1.25

9

Indicator Support | Formula Deluxe 600.

572098606

Unavailable

Gauge Support

572098600

Unavailable

10

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

11

Edge Clip

517302785

Unavailable

12

RH Side Foam

517302371

Unavailable

13

LH Side Foam

517302372

Unavailable

14

Flat Washer 4 mm, Stainless

234042600

Unavailable

15

BLACK SNAP CAP - Call your local BRP dealership

414436900

Unavailable

16

RETAINER CAP - Call your local BRP dealership

414436800

$2.42

17

Washer | DS 650 X

391301600

Unavailable

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

Unavailable

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Medium Windshield | OPT on LEG 550F, GT 550F, 380F, GT 380F

517302022

Unavailable

21

Windshield Latch

570023800

Unavailable

22

Hex. Plastic Screw M4.8 X 16

243141630

Unavailable

23

RH Console

517302434

Unavailable

24

LH CONSOLE - Call your local BRP dealership

517302006

Unavailable

25

Center Console (Black)

517302344

Unavailable

26

Forming Screw M5 x 16

250000676

$0.83

27

Pop Rivet 3/16"

390406500

Unavailable

28

Air Intake Plate

517302413

Unavailable

29

RH AIR INTAKE GRILL - Call your local BRP dealership

517302024

Unavailable

30

LH AIR INTAKE GRILL - Call your local BRP dealership

517302025

Unavailable

31

Air Intake Foam

517302151

Unavailable

32

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

33

Gasket

293250029

Unavailable

34

RIVET_POP 5/32 X ,400 BLACK - Call your local BRP dealership | Europe

390409400

Unavailable

35

Rubber Stopper

517302286

Unavailable

36

Rope Guide

517302129

Unavailable

37

CENTER FOAM - Call your local BRP dealership | FOR HOOD RIM

517302317

Unavailable

38

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

$37.66

39

Secondary Foam

517302425

Unavailable

40

Foam

517302420

Unavailable

41

Screw M4 x 16

208041641

Unavailable

42

WASHER - Call your local BRP dealership

417124300

Unavailable

43

Elastic Stop Nut M4

232541414

$0.48
