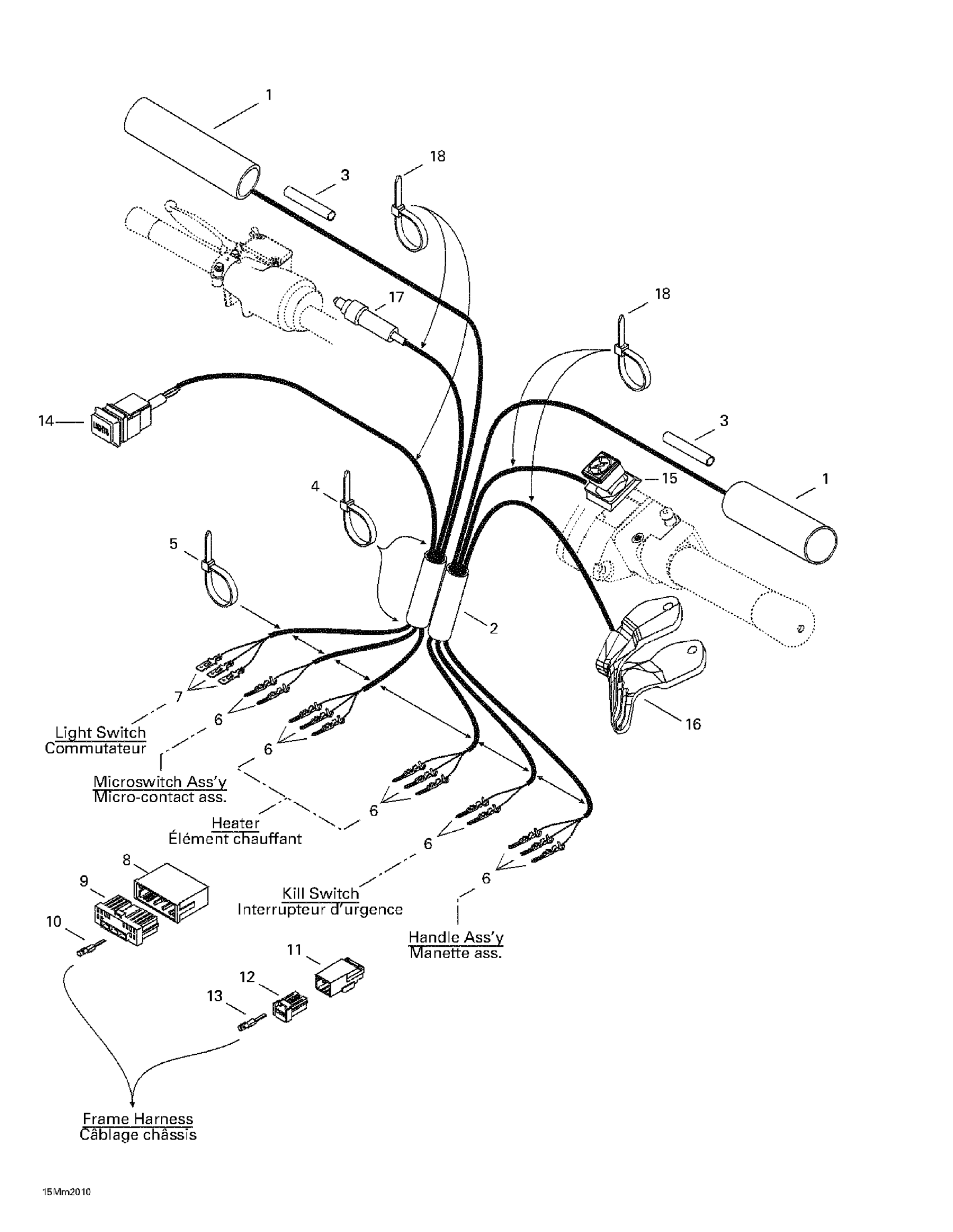

Ski-Doo Formula Deluxe 600/700, 2000 Steering System Diagram

#

Description
Price

1

Heating Grip

515175573

$59.20

2

GAINE LOW TEMP.VINYL - Call your local BRP dealership

515175314

Unavailable

3

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

4

Tie-Rap 180 mm

414115200

$0.09

5

Tie Wrap 142 mm

293750002

$0.88

6

Male Terminal

515175232

$1.49

7

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

8

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

Unavailable

9

Female Terminal Housing, 13 Circuits

515175350

$12.88

10

Female Terminal

515175231

$4.12

Female Terminal

515175282

$6.43

11

Male Housing, 3 Circuits

515175494

$15.35

12

Female Housing, 3 Circuits

515175495

$15.35

13

Female Terminal

515175231

$4.12

14

Light Switch | 500 F.

515175390

Unavailable

15

Kill Switch

515175410

Unavailable

16

Handle Ass'y 40 mm

512059204

Unavailable

17

Microswitch

507032366

$104.58

18

Tie Wrap 94 mm | 4X4

293750001

$0.83
