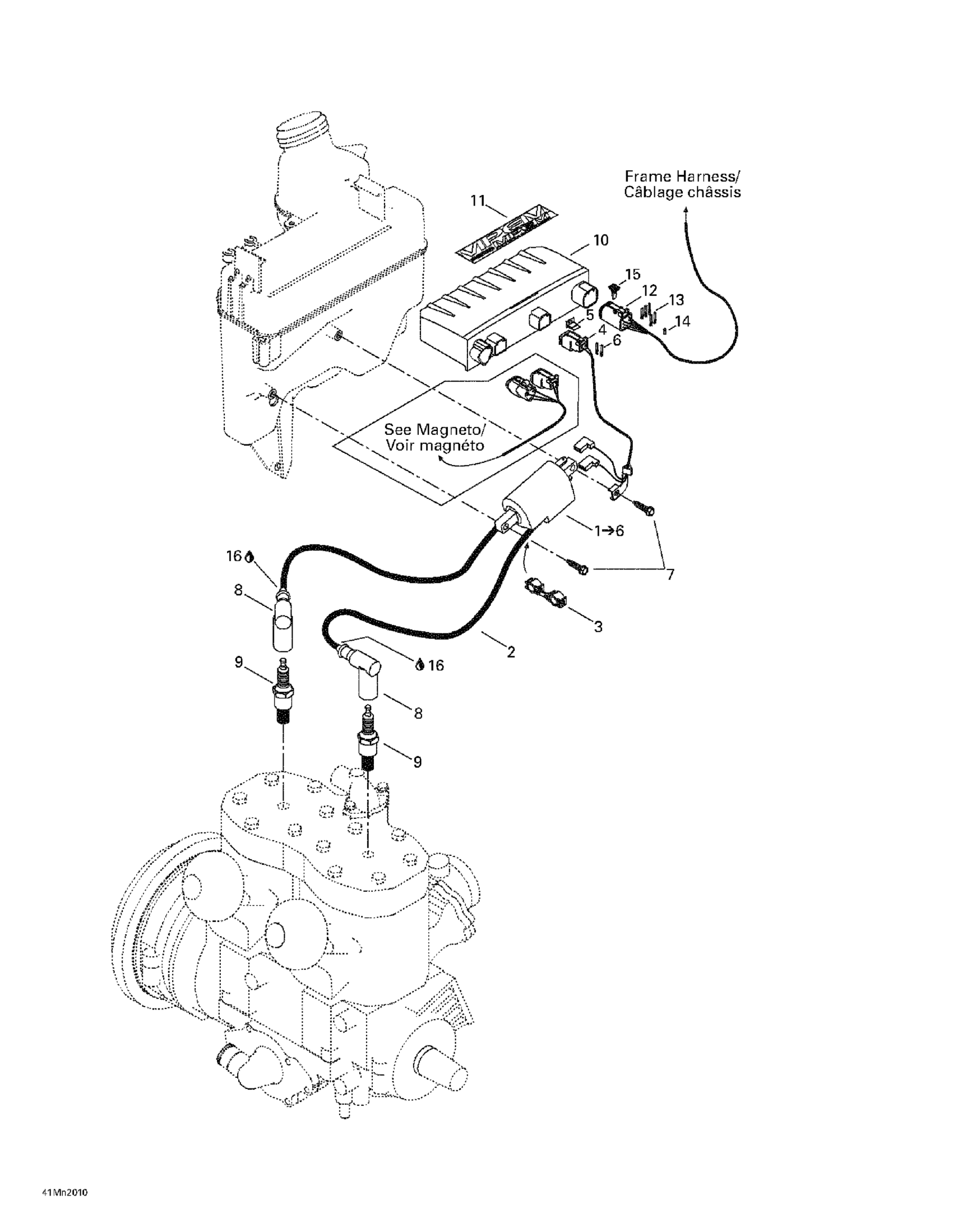

Ski-Doo Formula Deluxe 600/700, 2000 Ignition Diagram
#
Description
Price
1
IGNITION COIL - Call your local BRP dealership | Includes 3 - 8. Formula Deluxe 500.
512059039
Unavailable
2
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
3
Plastic Clip, Spark Plug Wire
410914600
Unavailable
5
FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership
409207100
Unavailable
6
Female Terminal
278000632
Unavailable
7
14 X 1 UNSL HX WSHR T/AB BLK ZINC - Call your local BRP dealership This part replaces 250000005.
296000365
Unavailable
8
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
9
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
10
Calibration Module | Formula Deluxe 500.
515175380
Unavailable
11
Electrical Box Decal
516000245
Unavailable
12
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
13
Female Terminal
278000632
Unavailable
14
Sealing Cap
293000052
Unavailable
15
MALE LOCK, 6 CIRCUITS - Call your local BRP dealership
278000737
Unavailable
16
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
