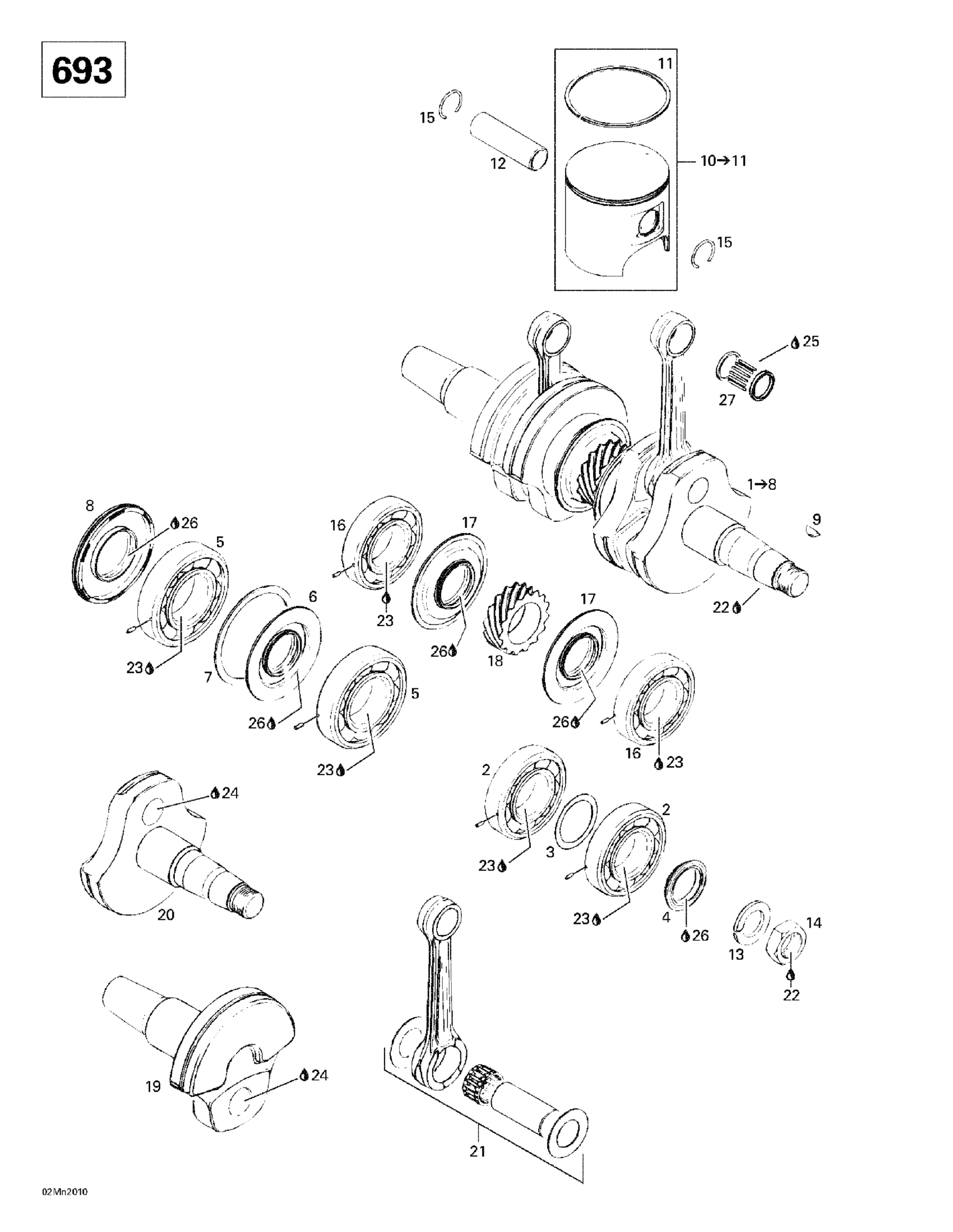

Ski-Doo Formula Deluxe 600/700, 2000 Crankshaft And Pistons 2 Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 9. Formula Deluxe 700.

420888282

Unavailable

2

Ball Bearing 6207 | With drive pin

420832575

$50.74

3

ADJUSTMENT WASHER - Call your local BRP dealership

420427502

Unavailable

4

Oil Seal

420931795

$16.89

5

Ball Bearing 6208 | With drive pin

420832600

$76.12

6

Oil Seal

420931910

$36.89

7

Washer

420926190

$9.37

8

Oil Seal

420931280

$49.20

9

Woodruff Key

420246015

$3.11

10

Piston Ass'y (1 Ring 77.88 mm) | Includes 10 - 11. Formula Deluxe 700.

420888293

Unavailable

11

Semi-Trapez Ring 78 mm | Formula Deluxe 700.

420815222

Unavailable

12

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

13

Lock Washer, 22 mm

420945759

$1.55

14

Hex. Nut, M22 X 1.5

420842239

$14.27

15

PISTON CIRCLIP - Call your local BRP dealership | Formula Deluxe 600.

420845102

Unavailable

16

Ball Bearing 6207 | With drive pin

420832575

$50.74

17

Oil Seal | Formula Deluxe 700.

290931455

Unavailable

18

CENTRAL GEAR - Call your local BRP dealership

420834355

Unavailable

19

Crankshaft (PTO side) | Formula Deluxe 700.

420818706

Unavailable

20

Crankshaft (MAG side) | Formula Deluxe 700.

420818736

Unavailable

21

Rod Repair Kit (MAG side) | Formula Deluxe 700.

420888283

Unavailable

Rod Repair Kit (PTO side) | Formula Deluxe 700.

420888284

Unavailable

22

Loctite 243, 10 ml

293800060

$20.77

23

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

24

Sealant Loctite 648

219703000

$35.72

25

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$10.74

26

Petamo Grease, GHY133N, 400 g

420899271

$57.17

27

Needle Bearing

420832445

$26.12
