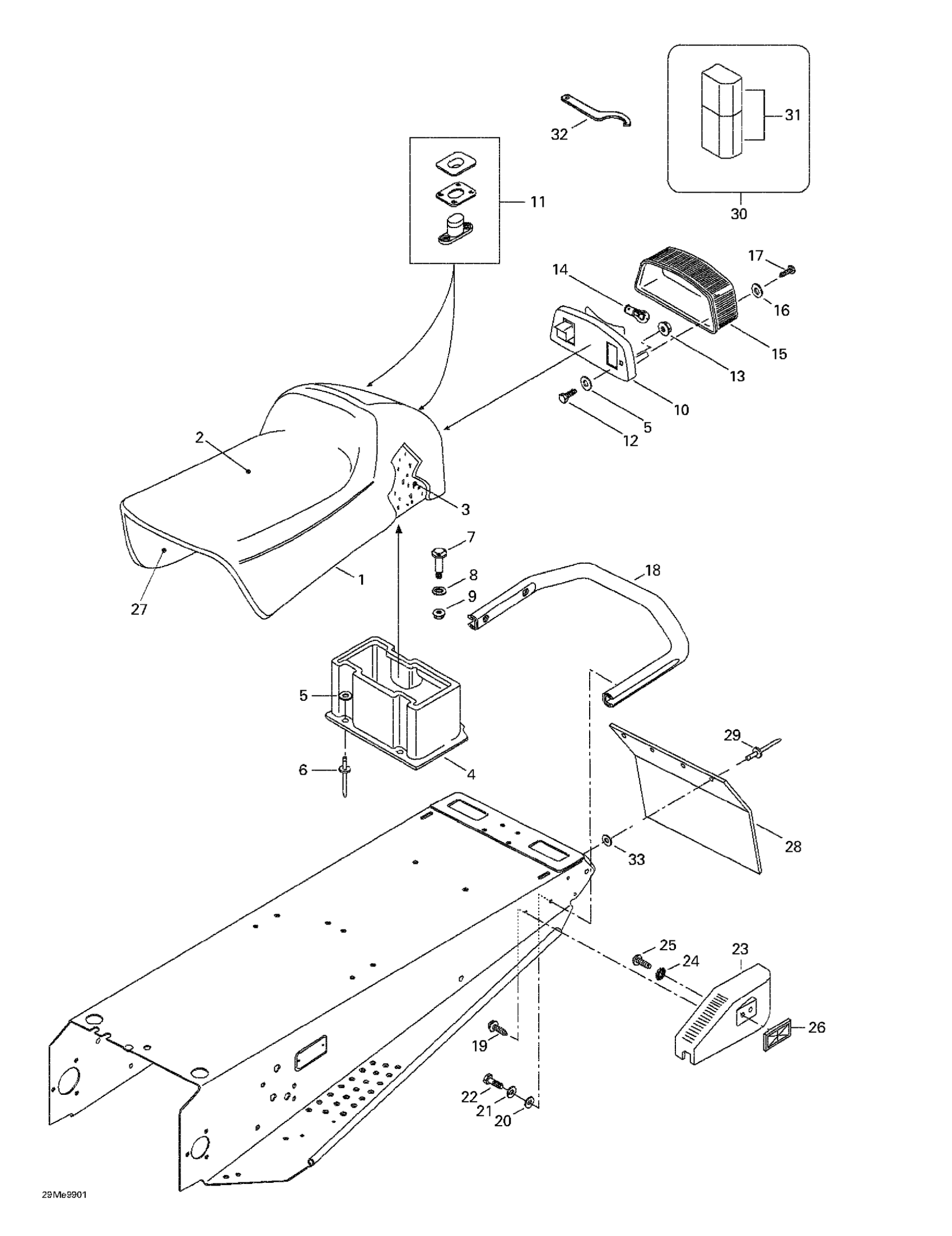

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 09- Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover | Formula Deluxe 500.

510003571

Unavailable

Seat Cover (1 pass.) | Formula Deluxe 583. Formula Deluxe 670.

510003574

Unavailable

3

Foam Seat

414837100

Unavailable

4

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

5

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

$2.19

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

10

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

11

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

12

Hex. Screw M5 X 30

207053044

$1.16

13

Hex. Flange Elastic Nut M5

233251414

$1.04

14

Bulb

520000758

$9.10

15

Lens

414513700

$28.99

16

Washer - Call your local BRP dealership

414516400

Unavailable

17

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

18

REAR BUMPER - Call your local BRP dealership

518314000

Unavailable

19

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

20

Flat Washer 8 mm

234081410

$0.83

21

Lock Washer 8 mm

234181401

$0.92

22

Hex. Screw M8 X 20

207182044

$0.74

23

RH Moulding Ass'y | Includes 26 - 29.

580642000

Unavailable

LH Moulding Ass'y

580642100

Unavailable

24

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

25

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

26

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

27

Sub Seat

510003596

Unavailable

28

Snow Guard | MX Z 380 F.

572099100

Unavailable

29

Pop Rivet 3/16"

293150100

$1.09

30

Tool Kit

529027900

Unavailable

31

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

32

Adjustment Wrench

529000035

$2.09

33

Flat Washer

517225900

$0.18
