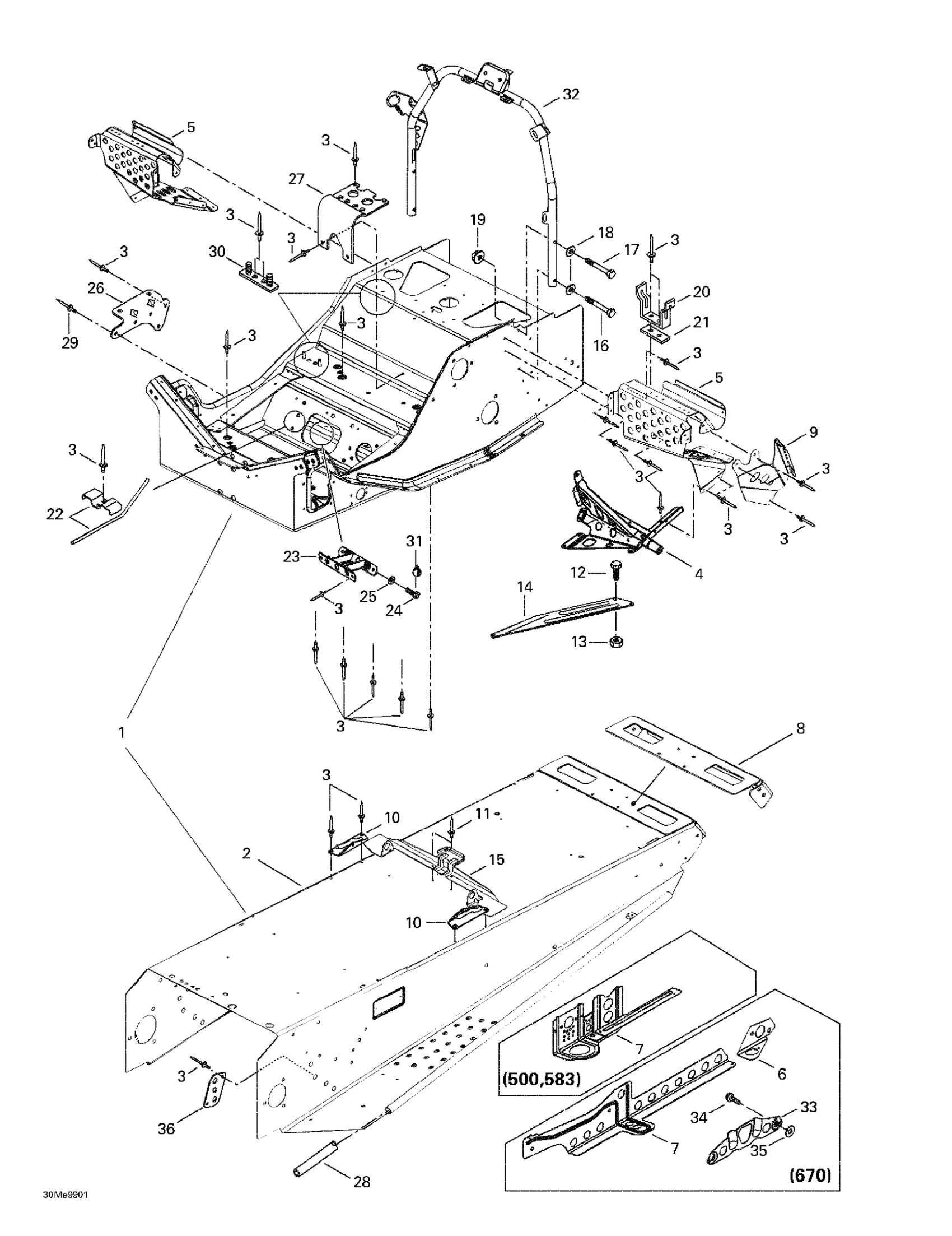

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Frame And Accessories Diagram
#
1
Frame Ass'y | Includes 1 - 15. Formula Deluxe 500 LC. Formula Deluxe 583.
518321640
Unavailable
Frame Ass'y | Formula Deluxe 670.
518321637
Unavailable
2
Forming Frame
518321663
Unavailable
3
Pop Rivet 3/16"
390402200
Unavailable
4
RH Footrest Support
518320506
Unavailable
LH SOOTREST SUPPORT - Call your local BRP dealership
518320507
Unavailable
5
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
6
RH Rear Reinforcement
518321472
Unavailable
LH Rear Reinforcement
518321473
Unavailable
7
Rear Bracket R.H
518321447
Unavailable
Rear Bracket L.H
518321448
Unavailable
Rear Bracket R.H | Formula Deluxe 670.
518321466
Unavailable
Rear Bracket L.H | Formula Deluxe 670.
518321467
Unavailable
8
Cap-End
518321301
Unavailable
9
Upper Plate R.H
518308715
Unavailable
Upper Plate L.H
518308714
Unavailable
10
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
11
Pop Rivet 3/16"
390402200
Unavailable
Pop Rivet 3/16"
390402400
Unavailable
12
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
13
Hex. Flange Elastic Nut M5
233251414
Unavailable
14
RH Reinforcement Plate
518316709
Unavailable
LH Reinforcement. Plate
518316710
Unavailable
15
Seat Bracket
518317506
Unavailable
16
Hex. Screw M6 X 40
207064044
Unavailable
17
Hex. Flange Screw M6 X 35
207063544
Unavailable
18
Flat Washer 6 mm
234061410
Unavailable
19
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
20
Belt Guard Bracket
518202100
Unavailable
21
REINFORCEMENT - Call your local BRP dealership
518207500
Unavailable
22
Guide Rope
518313700
Unavailable
23
Reinf. Plate
518304741
Unavailable
24
Hex. Screw M8 X 20
207182044
Unavailable
25
Lock Washer 8 mm
234181401
Unavailable
26
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
27
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
28
FOOTREST REINFORCEMENT - Call your local BRP dealership
518304746
Unavailable
29
Pop Rivet 3/16"
390402200
Unavailable
30
Support Plate
518315300
Unavailable
31
Loctite 271, 10 ml
293800005
Unavailable
32
Handle Steering Support
518321428
Unavailable
33
Protector Tunnel | Formula Deluxe 670.
518321673
Unavailable
34
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
35
Flat Washer 6 mm
234061410
Unavailable
36
REINFORCEMENT PLATE - Call your local BRP dealership
518201321
Unavailable
