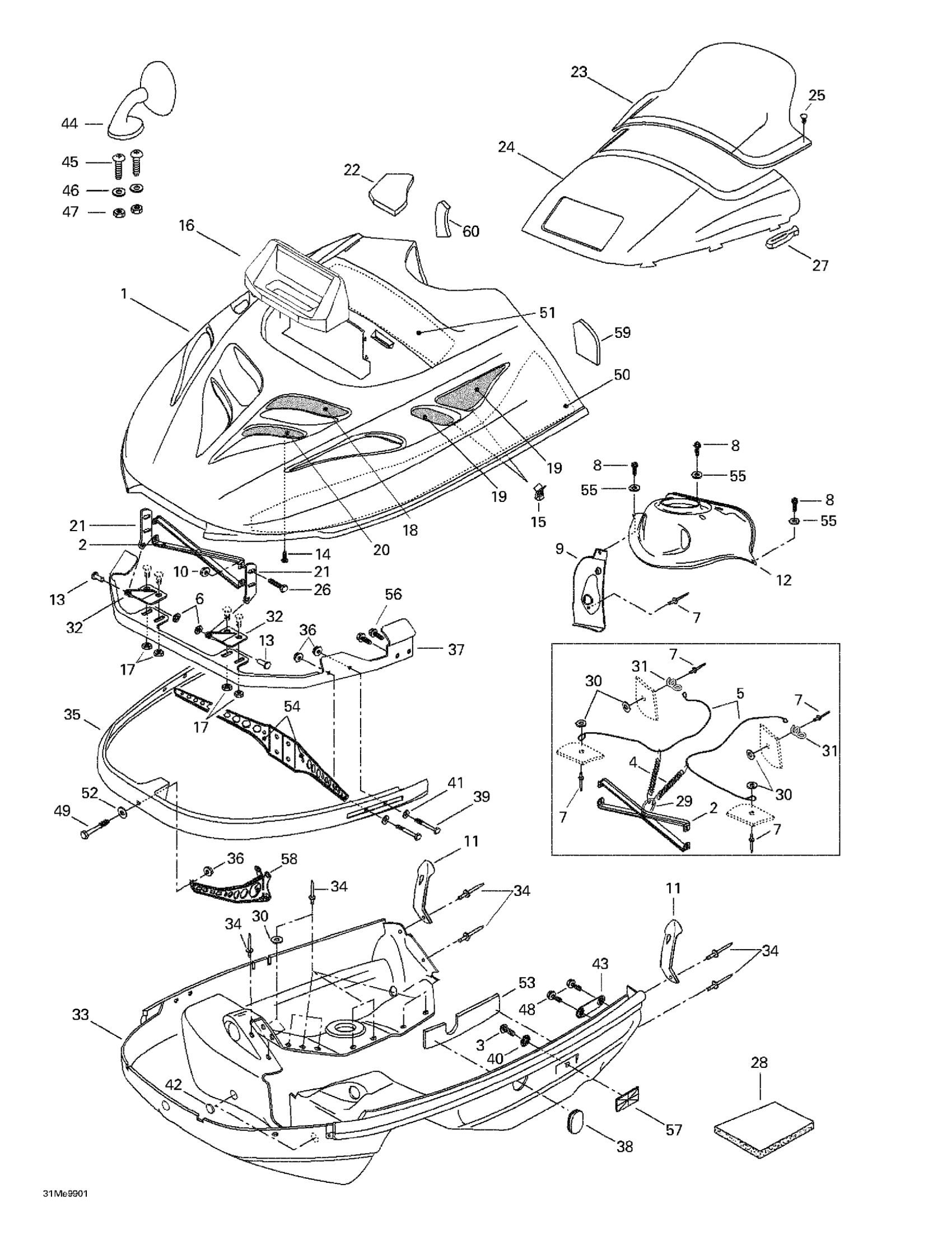

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Cab, Console Diagram
#
1
Cab (Red)
517302198
Unavailable
2
Hood Reinforcement
517278100
Unavailable
3
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership
208651041
Unavailable
4
Spring
414763300
Unavailable
5
RETAINER CABLE - Call your local BRP dealership
415093900
Unavailable
6
Push Nut
389804300
Unavailable
7
Pop Rivet 3/16" | DS 650 X
293150104
Unavailable
8
Forming Screw M5 x 16
250000676
Unavailable
9
Dash-Handle | Formula DLX 500 LC.
572052100
Unavailable
10
Hex. Flange Elastic Nut M5
233251414
Unavailable
11
Hood Latch
570027100
Unavailable
12
Dash-Switch | Formula DLX 500 LC.
517302100
Unavailable
13
FLAT HEAD STEEL RIVET - Call your local BRP dealership
390906200
Unavailable
14
HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership
732601210
Unavailable
15
Edge Clip
517302785
Unavailable
16
Sealing Foam | Skandic 600.
415044800
Unavailable
17
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
18
RH Upper Grill Ass'y
517298400
Unavailable
LH Upper Grill Ass'y
517298500
Unavailable
19
Side Grill (Black)
517280200
Unavailable
20
RH Lower Grill
517298600
Unavailable
LH Lower Grill
517298700
Unavailable
21
UPPPER HINGE - Call your local BRP dealership
517261100
Unavailable
22
Upper Foam
414975000
Unavailable
23
Medium Windshield
415050500
Unavailable
24
Windshield Support
572101800
Unavailable
25
Dart
414939500
Unavailable
26
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
27
Windshield Latch
570023800
Unavailable
28
Acoustic Foam
414632400
Unavailable
Acoustic Foam
414631900
Unavailable
29
RING - Call your local BRP dealership
415058300
Unavailable
30
Washer
517124300
Unavailable
31
Bracket
517262800
Unavailable
32
Welded Lower Hinge
517289900
Unavailable
33
Bottom Pan (Black)
572076207
Unavailable
34
Pop Rivet 3/16"
390906800
Unavailable
35
Front Bumper
517265400
Unavailable
36
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
37
Hinge Bracket
517296600
Unavailable
38
BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.
570053702
Unavailable
39
Hex. Screw M6 X 30
207063044
Unavailable
40
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership
224151101
Unavailable
41
Flat Washer
224061121
Unavailable
42
CAP - Call your local BRP dealership
572072100
Unavailable
43
Side Bracket
517267100
Unavailable
44
RH MIRROR - Call your local BRP dealership
414971910
Unavailable
LH MIRROR - Call your local BRP dealership
414972010
Unavailable
45
Machined Screw M4 x 16
222841665
Unavailable
46
Washer
517124300
Unavailable
47
Elastic Stop Nut M4
232541414
Unavailable
48
Hex. Flange Screw M6 X 16
210261650
Unavailable
49
Hex. Screw M6 X 40
207064044
Unavailable
50
LH Lower Foam
414883500
Unavailable
RH Lower Foam
415048700
Unavailable
51
Center Foam
414985100
Unavailable
52
Flat Washer
224061201
Unavailable
53
Foam # 6
414931600
Unavailable
54
LH Support
517295000
Unavailable
RH Support
517295100
Unavailable
55
Washer | DS 650 X
391301600
Unavailable
56
HEX. SCREW 12 X 3/4 - Call your local BRP dealership
365901100
Unavailable
57
REFLECTOR, AMBER - Call your local BRP dealership
414510200
Unavailable
58
Front Support
517294500
Unavailable
59
LH Rear Foam
414883700
Unavailable
60
R.H Rear Foam
414883800
Unavailable
