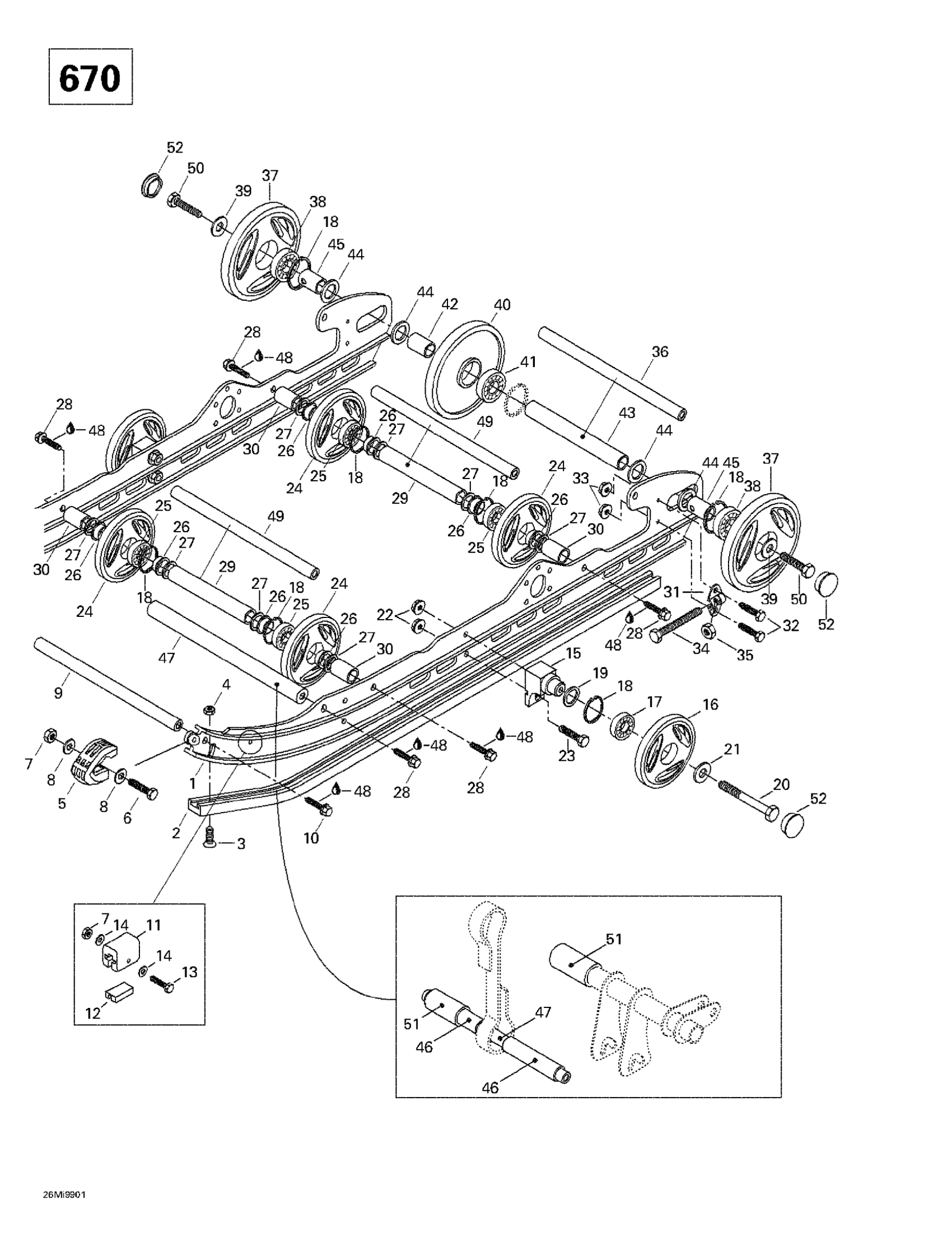

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Rear Suspension (670) Diagram
#
1
Runner | Formula Deluxe 670.
503179000
Unavailable
2
Shoe Runner | Formula Deluxe 670.
503188953
Unavailable
3
Phillips Screw M6 X 25
208562560
Unavailable
4
Elastic Stop Nut M6
232561414
Unavailable
5
RUNNER PROTECTOR - Call your local BRP dealership
572075400
Unavailable
6
SCREW-HEX.CAP DIN.933 - Call your local BRP dealership
222052565
Unavailable
7
Elastic Stop Nut M5
232551414
Unavailable
8
Washer | DS 650 X
391301600
Unavailable
9
Axle
503151600
Unavailable
10
Hex. Flange Screw M8 X 25
207682534
Unavailable
11
Rubber Stopper
570063000
Unavailable
12
Reinforcement Stopper
572084800
Unavailable
13
SCREW-HEX.CAP DIN.931 - Call your local BRP dealership
222054065
Unavailable
14
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
15
SUPPORT - Call your local BRP dealership
503190389
Unavailable
16
Wheel 135, Yellow
503190785
Unavailable
17
Ball Bearing
293350115
Unavailable
18
CIRCLIP - Call your local BRP dealership
371901700
Unavailable
19
WASHER - Call your local BRP dealership
503173700
Unavailable
20
HEX. SCREW M8 X 85 - Call your local BRP dealership
207088544
Unavailable
21
Washer
503183100
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
Hex. Screw M8 X 25
207182544
Unavailable
24
Wheel 135
503191029
Unavailable
25
Ball Bearing
293350115
Unavailable
26
Cushion
503189534
Unavailable
27
WASHER - Call your local BRP dealership
503154000
Unavailable
28
Hex. Flange Screw M10 X 30
207603044
Unavailable
29
Spacer
503153100
Unavailable
30
SPACER - Call your local BRP dealership
503188800
Unavailable
31
Tensioner
503155300
Unavailable
32
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
33
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
34
Hex. Screw M10 x 110 | Formula Deluxe 670.
732601017
Unavailable
35
Elastic Locking Nut M10 X 1.5
233601416
Unavailable
36
Rear Axle
503167900
Unavailable
37
Wheel 180 Ass'y, Yellow | Includes 35 to 36
503190800
Unavailable
38
Ball Bearing
293350115
Unavailable
39
Washer
503183300
Unavailable
40
Wheel 180
503190799
Unavailable
41
Ball Bearing
293350115
Unavailable
42
Inner Spacer
503182900
Unavailable
43
CENTRAL SPACER - Call your local BRP dealership
503183000
Unavailable
44
Washer
503180400
Unavailable
45
Outer Spacer
503189809
Unavailable
46
Spacer | Formula Deluxe 670.
572102300
Unavailable
47
Axle | Formula Deluxe 670.
503181100
Unavailable
48
Loctite 271, 10 ml
293800005
Unavailable
49
WHEEL AXLE - Call your local BRP dealership
503188700
Unavailable
50
Hex. Screw With Nylon
250000019
Unavailable
51
Spacer | Formula Deluxe 670.
503189215
Unavailable
52
Wheel Cap
570063600
Unavailable
