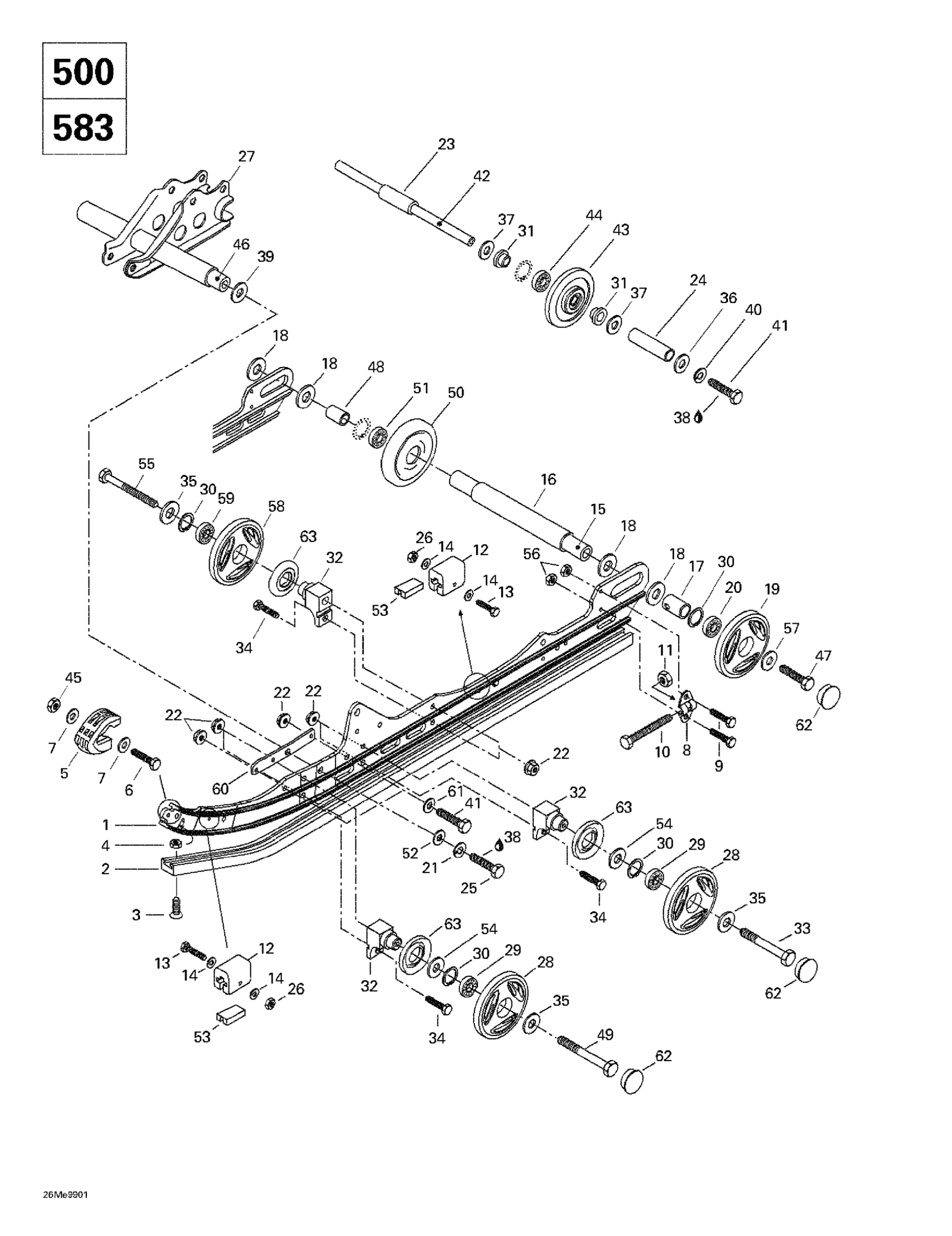

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Rear Suspension (500LC, 583) Diagram

#

Description
Price

1

Runner (121")

503188960

Unavailable

2

Runner Shoe

560103300

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

Unavailable

10

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

Unavailable

12

Rubber Stopper

570063000

Unavailable

13

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Rear Axle

503167900

Unavailable

16

CENTRAL SPACER - Call your local BRP dealership

503183000

Unavailable

17

Outer Spacer

503189809

Unavailable

18

Washer

503180400

Unavailable

19

Wheel 165 mm Yellow

503190817

Unavailable

20

Ball Bearing

293350115

Unavailable

21

Lock Washer 12 mm

224721218

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Spacer

503153100

Unavailable

24

External Spacer

503188951

Unavailable

25

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

26

Elastic Stop Nut M5

232551414

Unavailable

27

Welded Shock Support | Formula Deluxe 500 LC.

503185000

Unavailable

Welded Shock Support

503188976

Unavailable

28

Wheel 135, Yellow

503190785

Unavailable

29

Ball Bearing

293350115

Unavailable

30

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

31

Cushion

503189534

Unavailable

32

SUPPORT - Call your local BRP dealership

503190389

Unavailable

33

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

Unavailable

34

Hex. Screw M8 X 25

207182544

Unavailable

35

Washer

503183100

Unavailable

36

Yellow, Washer

503183200

Unavailable

37

WASHER - Call your local BRP dealership

503154000

Unavailable

38

Loctite 271, 10 ml

293800005

Unavailable

39

Hardened Washer

503175400

Unavailable

40

Lock Washer 8 mm

234181401

Unavailable

41

Hex. Screw M8 X 30

207183044

Unavailable

42

Wheel Support Axle

503160000

Unavailable

43

IDLER WHEEL - Call your local BRP dealership | Includes 43 - 44.

572018900

Unavailable

44

Ball Bearing

293350115

Unavailable

45

Elastic Stop Nut M5

232551414

Unavailable

46

Lower Axle

503174900

Unavailable

47

Hex. Screw With Nylon

250000019

Unavailable

48

Inner Spacer

503182900

Unavailable

49

Hex. Screw M8 X 90

207089044

Unavailable

50

Wheel 165" | Includes 670 to 670b

503194127

Unavailable

51

Ball Bearing

293350115

Unavailable

52

Flat Washer 12 mm

234021410

Unavailable

53

Reinforcement Stopper

572084800

Unavailable

54

WASHER - Call your local BRP dealership

503173700

Unavailable

55

Hex. Screw M8 X 80

207088044

Unavailable

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

57

Washer

503183300

Unavailable

58

Wheel 135

503191029

Unavailable

59

Ball Bearing

293350115

Unavailable

60

Reinforcement Plate

503189060

Unavailable

61

Flat Washer 8 mm

234081410

Unavailable

62

Wheel Cap

570063600

Unavailable

63

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable
