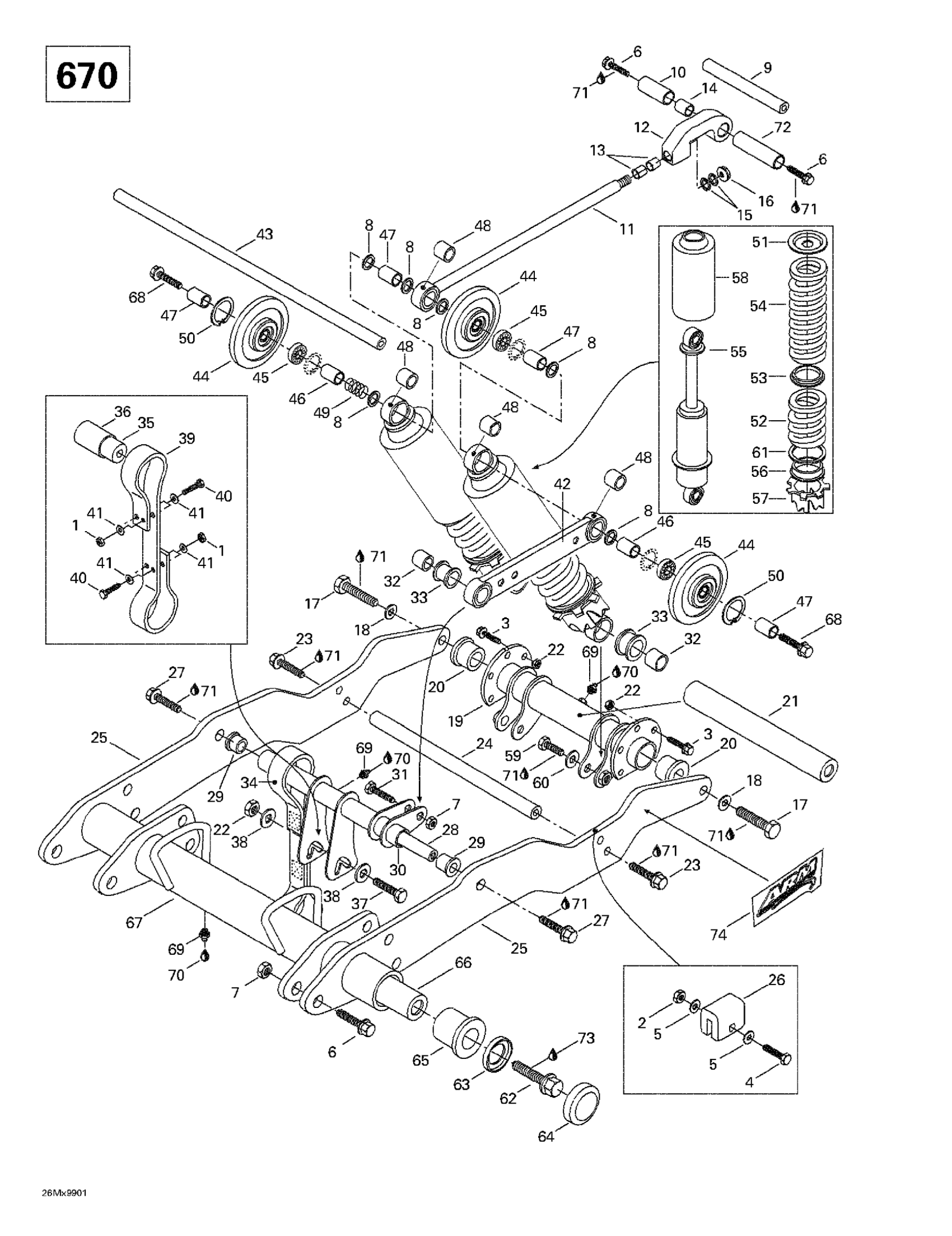

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Rear Suspension 2 (670) Diagram
#
1
Elastic Stop Nut M6
232561414
Unavailable
2
Elastic Stop Nut M5
232551414
Unavailable
3
Hex. Flange Screw M8 X 25
207682534
Unavailable
4
SCREW-HEX.CAP DIN.931 - Call your local BRP dealership
222054065
Unavailable
5
FLAT WASHER - Call your local BRP dealership | 4X4
250200081
Unavailable
6
Hex. Flange Screw M10 X 30
207603044
Unavailable
7
Elastic Locking Nut M10 X 1.5
233601416
Unavailable
8
Washer
503180400
Unavailable
9
Shaft | Formula Deluxe 670.
503180500
Unavailable
10
Spacer | Formula Deluxe 670.
572102400
Unavailable
11
Rear Arm | Formula Deluxe 670.
503183900
Unavailable
12
Rear Arm Stopper | Formula Deluxe 670.
503184000
Unavailable
13
Bushing | Formula Deluxe 670.
503184100
Unavailable
14
Bushing | Formula Deluxe 670.
503184200
Unavailable
15
Washer | Formula Deluxe 670.
572104100
Unavailable
16
Hex. Flange Elastic Nut M10
233201414
Unavailable
17
Hex. Screw M14 x 50 | Formula Deluxe 670.
222075065
Unavailable
18
Spring Washer 14 mm
250200006
Unavailable
19
Shock Support | Formula Deluxe 670.
503179200
Unavailable
20
Cushion | Formula Deluxe 670.
503179900
Unavailable
21
Shaft | Formula Deluxe 670.
503179300
Unavailable
22
Hex. Elastic Stop Nut M8
232581414
Unavailable
23
Hex. Flange Screw M12 x 30 | Formula Deluxe 670.
732601304
Unavailable
24
Axle | Formula Deluxe 670.
503189200
Unavailable
25
Arm | Formula Deluxe 670.
503178900
Unavailable
26
Rubber Stopper | Formula Deluxe 670.
570067600
Unavailable
27
SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership | Formula Deluxe 670.
732601283
Unavailable
28
Shaft | Formula Deluxe 670.
503179500
Unavailable
29
Cushion | Formula Deluxe 670.
503180900
Unavailable
30
Pivot | Formula Deluxe 670.
503180000
Unavailable
31
Hex. Screw M10 X 45
207004544
Unavailable
32
Spacer | Formula Deluxe 670.
503180100
Unavailable
33
CUSHION - Call your local BRP dealership | Formula Deluxe 670.
503181300
Unavailable
34
Belt | Formula Deluxe 670.
503181200
Unavailable
35
Spacer | Formula Deluxe 670.
503180300
Unavailable
36
Cushion | Formula Deluxe 670.
572102100
Unavailable
37
Hex. Screw M8 X 80
207088044
Unavailable
38
Yellow, Washer
503183200
Unavailable
39
Rubber Belt | Formula Deluxe 670.
570068400
Unavailable
40
Hex. Screw M6 X 25
207162544
Unavailable
41
Washer | Formula Deluxe 670.
503185100
Unavailable
42
Arm | Formula Deluxe 670.
503179400
Unavailable
43
Shaft | Formula Deluxe 670.
503178800
Unavailable
44
IDLER WHEEL 100 - Call your local BRP dealership | Includes 44 - 45. Formula Deluxe 670.
572091700
Unavailable
45
Ball Bearing
293350115
Unavailable
46
Spacer | Formula Deluxe 670.
503178500
Unavailable
47
Spacer | Formula Deluxe 670.
503178600
Unavailable
48
Cushion | Formula Deluxe 670.
503184800
Unavailable
49
Axle Spring | Formula Deluxe 670.
415088900
Unavailable
50
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
51
Spring Guide
503182300
Unavailable
52
Spring | Formula Deluxe 670.
415090300
Unavailable
53
Spring Spacer | Formula Deluxe 670.
572103200
Unavailable
54
Spring | Formula Deluxe 670.
415090400
Unavailable
55
Rear Shock | Formula Deluxe 670.
503189250
Unavailable
56
Guide Ressort | Formula Deluxe 670.
503185500
Unavailable
57
Cam
503189205
Unavailable
58
Protector | Formula Deluxe 670.
570067800
Unavailable
59
Hex. Screw M10 X 45
207004544
Unavailable
60
Washer
503183800
Unavailable
61
Washer | Formula Deluxe 670.
503185600
Unavailable
62
Hex. Flange Screw M12 x 30 | Formula Deluxe 670.
732601304
Unavailable
63
Protector Support | Formula Deluxe 670.
503185300
Unavailable
64
CAP - Call your local BRP dealership
572045900
Unavailable
65
Cushion | Formula Deluxe 670.
503179800
Unavailable
66
Shaft | Formula Deluxe 670.
503179700
Unavailable
67
Upper Tube | Formula Deluxe 670.
503179600
Unavailable
68
Hex. Flange Screw M12 x 30 | Formula Deluxe 670.
732601287
Unavailable
69
Grease Fitting
408200700
Unavailable
70
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
71
Loctite 271, 10 ml
293800005
Unavailable
72
Spacer | Formula Deluxe 670.
572102500
Unavailable
73
Loctite 243, 10 ml
293800060
Unavailable
74
Warning Label
516000221
Unavailable
ARM" Decal L.H`Formula Deluxe 670.``
516000222
Unavailable
