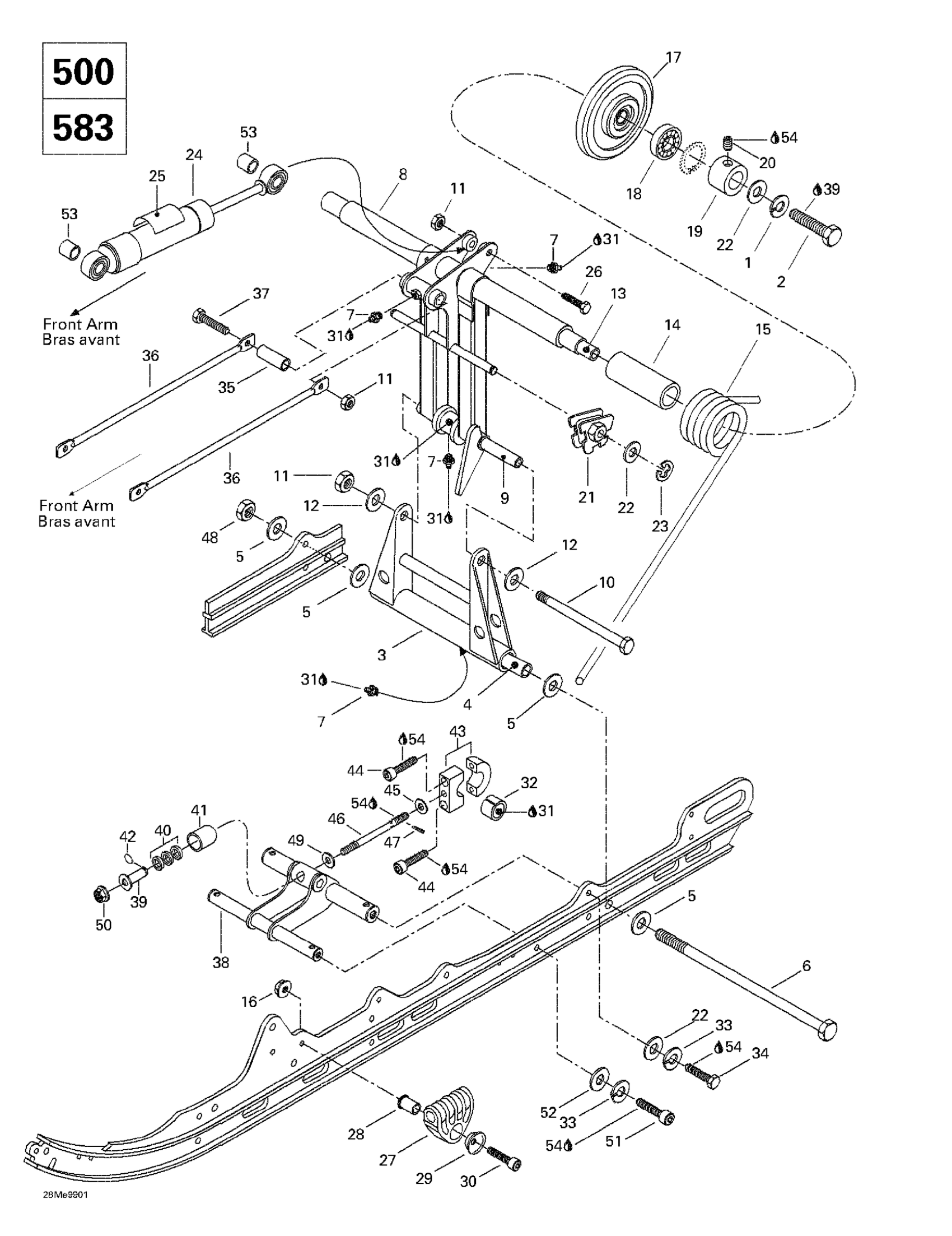

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Rear Arm, Rear Suspension (500lc,583) Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

2

Hex. Screw M10 X 35

207103544

Unavailable

3

Pivot Welded Arm

503169200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

Unavailable

7

Grease Fitting

408200700

Unavailable

8

Welded Rear Arm

503189230

Unavailable

Rear Arm

503188961

Unavailable

9

Upper Axle, Pivot Arm

503144300

Unavailable

10

Bolt M8, Short

732601197

Unavailable

11

Hex. Elastic Stop Nut M8

232581414

Unavailable

12

Flat Washer 8 mm

234081410

Unavailable

13

Rear Cross Shaft

503168700

Unavailable

14

Bushing

572080700

Unavailable

15

RH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010500

Unavailable

RH Spring (Europe) | Formula Deluxe 500 LC.

414944200

Unavailable

LH Spring | Formula Deluxe 500 LC. Formula Deluxe 583.

415010600

Unavailable

LH SPRING (EUROPE) - Call your local BRP dealership | Formula Deluxe 500 LC.

414944300

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

Unavailable

17

Idler Wheel | Includes 17 - 18.

572091400

Unavailable

18

Ball Bearing

293350115

Unavailable

19

Retaining Ring

503168800

Unavailable

20

Socket Set Screw M6 X 8

206260844

Unavailable

21

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

22

Flat Washer 10 mm

234001410

Unavailable

23

e Circlip

371907100

Unavailable

24

Rear Shock

503189172

Unavailable

Rear Shock (Europe) | Formula Deluxe 500 LC.

503189257

Unavailable

Rear Shock | Formula Deluxe 583.

415094900

Unavailable

25

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

26

Hex. Screw M8 X 50

207085044

Unavailable

27

Spring Support

503189657

Unavailable

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

Unavailable

31

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

32

CUSHION - Call your local BRP dealership

415027800

Unavailable

33

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

34

Hex. Screw M10 X 30

207103044

Unavailable

35

Tie Rod Shaft

503158600

Unavailable

36

Tie Rod

503187100

Unavailable

37

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

38

Bracket

503188969

Unavailable

39

Bushing

503172900

Unavailable

40

RUBBER STOPPER - Call your local BRP dealership

570049600

Unavailable

41

Cup

503103600

Unavailable

42

Circlip

371910700

Unavailable

43

Pivot Block Ass'y | Includes 45 - 49.

503189044

Unavailable

44

Socket Head Screw M8 X 30

205083044

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Rolled Pin M3 x 18

732804011

Unavailable

48

Hex. Flange Elastic Nut M8

233281414

Unavailable

49

WASHER - Call your local BRP dealership

503183400

Unavailable

50

Hex. Flange Elastic Nut M10

233201414

Unavailable

51

Socket Screw M10 X 35

205003544

Unavailable

52

Hardened Washer 10 mm

503176700

Unavailable

53

CUSHION - Call your local BRP dealership

414802600

Unavailable

54

Loctite 271, 10 ml

293800005

Unavailable
