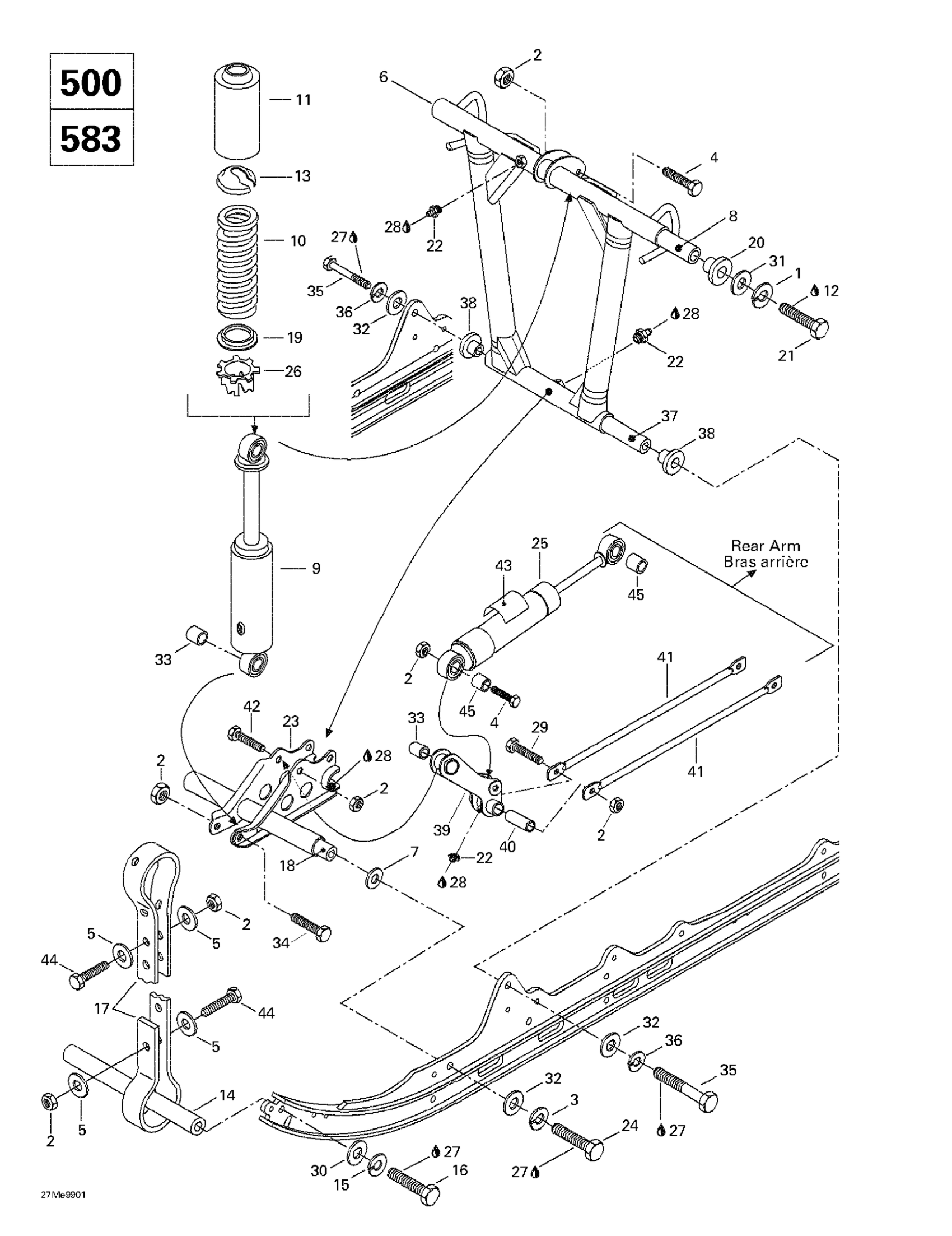

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Front Arm, Rear Suspension (500LC, 583) Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

Unavailable

3

Lock Washer 12 mm

224721218

Unavailable

4

Hex. Screw M8 X 40

207084044

Unavailable

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm | Formula Deluxe 500 LC. Formula Deluxe 583.

503189217

Unavailable

7

Hardened Washer

503175400

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock Central

503189173

Unavailable

Shock | Formula Deluxe 583.

415094700

Unavailable

10

Shock Spring

415070400

Unavailable

11

Protector

503193663

Unavailable

12

Loctite 243, 10 ml

293800060

Unavailable

13

Spring Stopper

706200881

Unavailable

14

Axle

503151600

Unavailable

15

Lock Washer 8 mm

234181401

Unavailable

16

Hex. Screw M8 X 30

207183044

Unavailable

17

Stopper Strap | Formula Deluxe 500 LC.

503189181

Unavailable

Stopper Strap

570069300

Unavailable

18

Lower Axle

503174900

Unavailable

19

Spring Guide

572092600

Unavailable

20

Bushing

503189324

Unavailable

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

Unavailable

23

Welded Shock Support | Formula Deluxe 500 LC.

503185000

Unavailable

Welded Shock Support

503188976

Unavailable

24

SCREW-HEX.CAP M12 X 35 - Call your local BRP dealership

222023565

Unavailable

25

Rear Shock

503189172

Unavailable

Rear Shock (Europe) | Formula Deluxe 500 LC.

503189257

Unavailable

Rear Shock | Formula Deluxe 583.

415094900

Unavailable

26

Cam

503169000

Unavailable

27

Loctite 271, 10 ml

293800005

Unavailable

28

LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.

413706100

Unavailable

29

HEX. SCREW M8 X 75 - Call your local BRP dealership

207087544

Unavailable

30

Flat Washer 8 mm

234081410

Unavailable

31

Flat Washer 10 mm

234001410

Unavailable

32

Flat Washer 12 mm

234021410

Unavailable

33

Cushion

414917900

Unavailable

34

Hex. Screw M8 X 55

207085544

Unavailable

35

Hex. Screw M12 x 60 | Formula Deluxe 500 LC. Formula Deluxe 583.

222026065

Unavailable

36

Lock Washer 12 mm

224721218

Unavailable

37

Shaft

503182000

Unavailable

38

Cushion

503188940

Unavailable

39

Lever

503158500

Unavailable

40

Tie Rod Shaft

503158600

Unavailable

41

Tie Rod

503187100

Unavailable

42

Hex. Screw M8 X 50

207085044

Unavailable

43

Shock Decal | Formula Deluxe 500.

516000181

Unavailable

HPG Decal (Europe)

516000182

Unavailable

44

Hex. Screw M8 X 25

207182544

Unavailable

45

Urethane Bushing

503189117

Unavailable

46

Bushing | Includes 240d to 240d1

503189282

Unavailable
