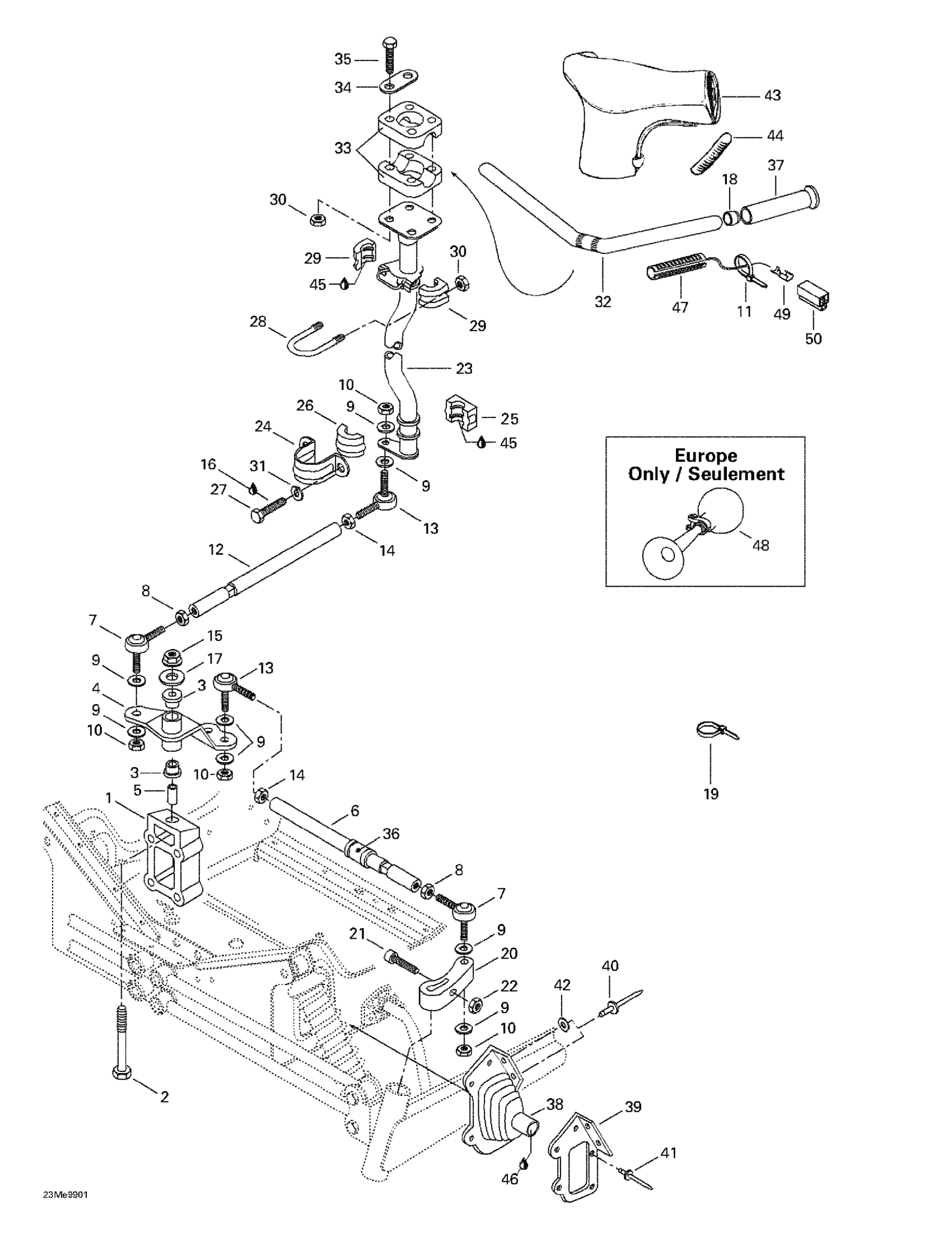

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Steering System Diagram
#
1
Block
506121400
Unavailable
2
Screw M12 x 85
222028565
Unavailable
3
CUSHION - Call your local BRP dealership
415041100
Unavailable
4
Pivot Arm
506133800
Unavailable
5
Pivot
415038000
Unavailable
6
Tie Rod
506136000
Unavailable
7
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
8
RH Threaded Hex. Jam Nut M10
732610010
Unavailable
9
Washer
503175800
Unavailable
10
Elastic Flange Nut M10
232501416
Unavailable
11
Tie Wrap 94 mm | 4X4
293750001
Unavailable
12
Tie Rod
506110800
Unavailable
13
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
14
LH Threaded Hex. Jam Nut M10
250100016
Unavailable
15
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership
232521414
Unavailable
16
Loctite 271, 10 ml
293800005
Unavailable
17
FLAT WASHER - Call your local BRP dealership
506136400
Unavailable
18
HANDLEBAR END - Call your local BRP dealership
572081900
Unavailable
19
Tie Wrap 94 mm | 4X4
293750001
Unavailable
20
RH Steering Arm
506144800
Unavailable
LH Steering Arm
506144900
Unavailable
21
Allen Screw M8 x 35
222983565
Unavailable
22
Hex. Flange Elastic Nut M8
233281414
Unavailable
23
Main Tube
506151125
Unavailable
24
Retainer Support
517126200
Unavailable
25
Bushing
572064400
Unavailable
26
BUSHING - Call your local BRP dealership
572064500
Unavailable
27
Hex. Screw M8 X 20
207182044
Unavailable
28
U-clamp | X
506060600
Unavailable
29
HALF-BUSHING - Call your local BRP dealership
572067100
Unavailable
30
Hex. Elastic Stop Nut M8
232581414
Unavailable
31
Lock Washer 8 mm
234181401
Unavailable
32
Handlebar
506125900
Unavailable
33
STEERING CLAMP - Call your local BRP dealership
277000142
Unavailable
34
Stiffner
709400509
Unavailable
35
Hex. Screw M8 X 55
207085544
Unavailable
36
BUSHING - Call your local BRP dealership
572036500
Unavailable
37
RH Grip 6-1/2"
506151530
Unavailable
38
RH Tie Rod Cap
570024800
Unavailable
LH TIE ROD CAP - Call your local BRP dealership
570024900
Unavailable
39
RH Cap Plate
517241200
Unavailable
LH CAP PLATE - Call your local BRP dealership
517241300
Unavailable
40
Pop Rivet 3/16"
390906800
Unavailable
41
Pop Rivet 3/16"
390402200
Unavailable
42
Washer
517124300
Unavailable
43
Steering Padding
572084100
Unavailable
44
Key Way
572072400
Unavailable
45
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
46
Grease, Super Lube
293550030
Unavailable
47
Heating Grip
515175573
Unavailable
48
Horn
549011291
Unavailable
49
Female Terminal
561503100
Unavailable
50
Female Housing
409204300
Unavailable
