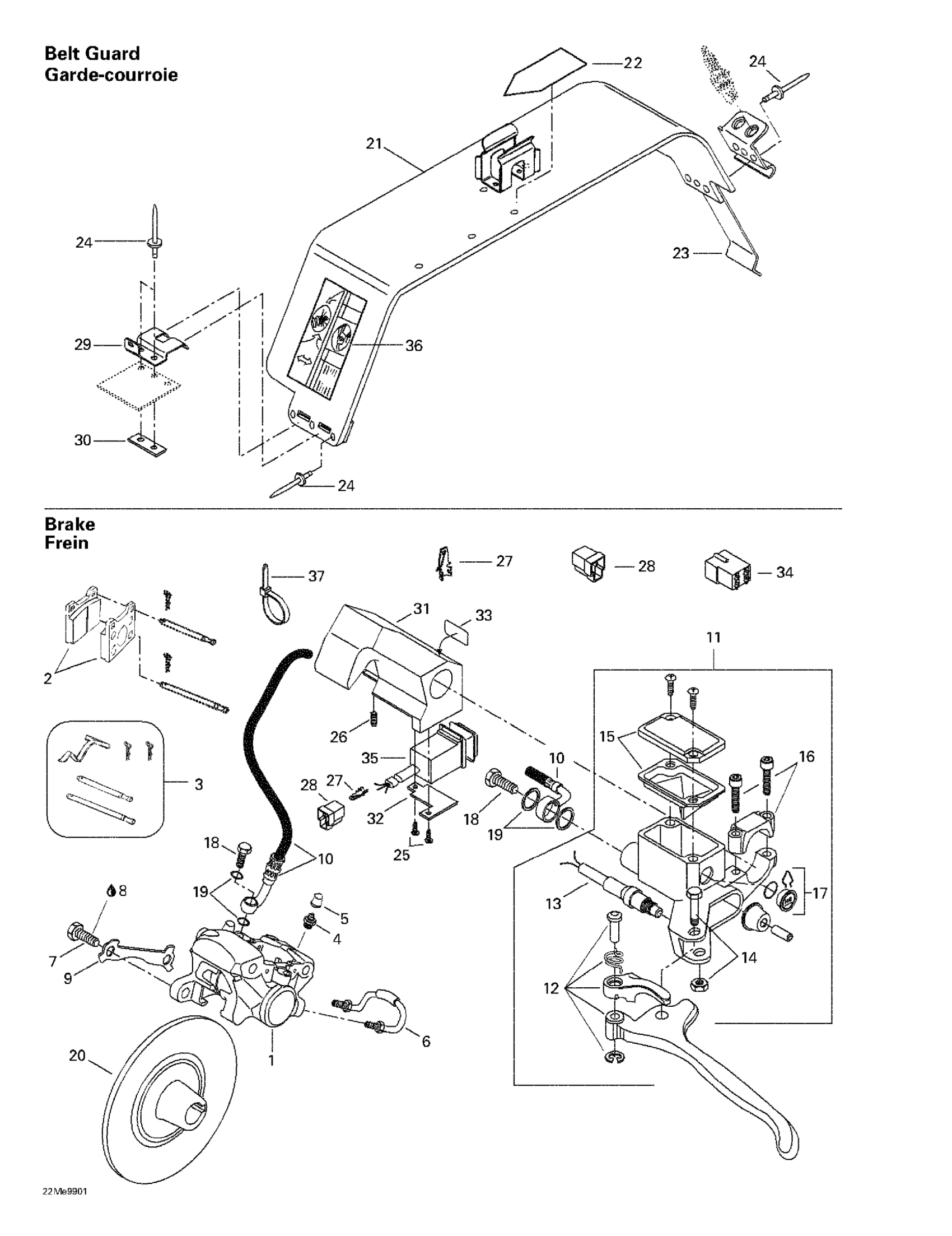

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

Caliper | Includes 10 - 15.

414920000

Unavailable

2

Brake Pad Kit

415129172

Unavailable

Brake Pad Kit

415084600

Unavailable

3

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

4

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

5

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

6

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

7

Hex. Screw M10 X 35

207103544

Unavailable

8

Loctite 243, 10 ml

293800060

Unavailable

9

Locking Tab

507029900

Unavailable

10

HOSE - Call your local BRP dealership This part replaces 507032212.

507032568

Unavailable

11

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

Unavailable

12

LEVER - Call your local BRP dealership

507032428

Unavailable

13

Microswitch

507032366

Unavailable

14

Pin Ass'y

415030000

Unavailable

15

Cap

415029900

Unavailable

16

Clamp And Screw Kit

507032477

Unavailable

17

WINDOW - Call your local BRP dealership

414990600

Unavailable

18

Banjo Bolt

414920500

Unavailable

19

Washer

414920600

Unavailable

20

Brake Disk

507032203

Unavailable

BRAKE DISK - Call your local BRP dealership

507031300

Unavailable

21

Belt Guard Ass'y | Includes 21 - 24.

417300025

Unavailable

22

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

23

Tool Box Spring

414941800

Unavailable

24

Pop Rivet 3/16"

390402200

Unavailable

25

Screw

414473200

Unavailable

26

Socket Set Screw M8 X 10

414440800

Unavailable

27

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

28

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

29

Pulley Guard Bracket

518314200

Unavailable

30

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

31

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

32

Plate | SWT 550

517283800

Unavailable

33

Switch Decal

415025500

Unavailable

34

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

35

Dimmer Switch

515175293

Unavailable

36

Rear Suspension Adjustment Decal

418001708

Unavailable

Rear Suspension Adjustment Decal | Formula Deluxe 670.

418001714

Unavailable

37

Tie-Rap 180 mm

414115200

Unavailable
