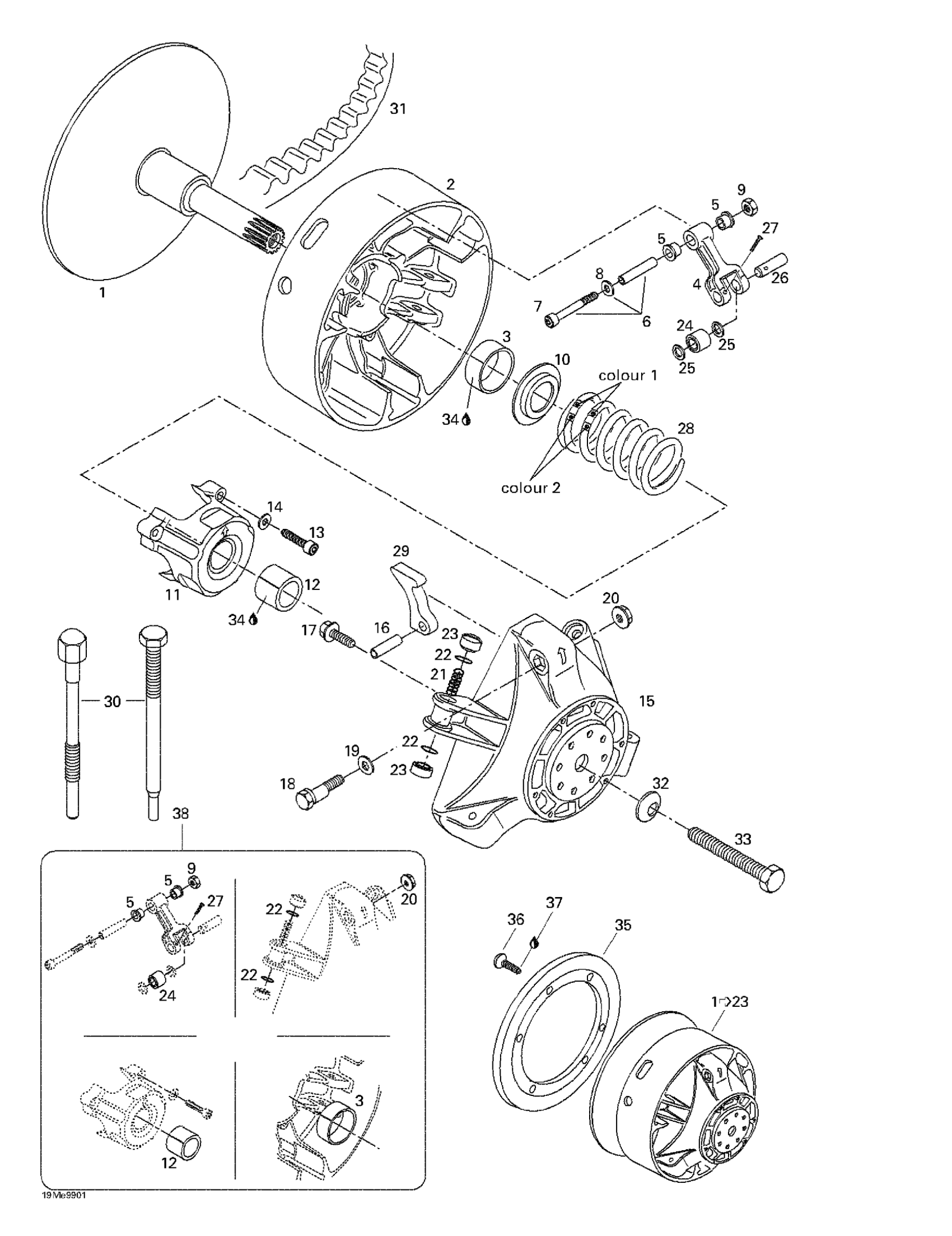

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Drive Pulley Diagram
#
1
Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500 LC. Formula Deluxe 670.
417222154
Unavailable
Drive Pulley Ass'y | Includes 1 - 23. Formula Deluxe 500.
417222120
Unavailable
1
Fixed Flange
417222411
Unavailable
Fixe Flange | Formula DLX 500.
417222071
Unavailable
2
OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.
417222049
Unavailable
3
Bushing
417004201
Unavailable
4
LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.
417003801
Unavailable
5
Bushing
417004305
Unavailable
6
SCREW ASSY - Call your local BRP dealership | Includes 12 to 13
417004800
Unavailable
7
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership
205065044
Unavailable
8
Flat Washer 6 mm
234061410
Unavailable
9
Elastic Stop Nut M6
232561414
Unavailable
10
Spring Seat
417222044
Unavailable
11
Spring Cover Ass'y | Includes 9 - 10.
417222157
Unavailable
12
Bushing
417004501
Unavailable
13
Allen Screw M6 x 40
222964066
Unavailable
14
WASHER - Call your local BRP dealership
420245370
Unavailable
15
Gouvernor Cup Ass'y
417004700
Unavailable
16
Pin M8 X 24
732804009
Unavailable
17
Hex. Locking Screw M6 x 18 | Formula Deluxe 500.
732601249
Unavailable
18
CALIBRATION SCREW - Call your local BRP dealership
417222955
Unavailable
19
Washer
417005600
Unavailable
20
Hex. Flange Nut M6
233061414
Unavailable
21
Spring
417005700
Unavailable
22
O-Ring
732401030
Unavailable
23
Slider Shoe This part replaces 420460045.
417223021
Unavailable
24
Roller
413222042
Unavailable
25
Stopper Washer
417004302
Unavailable
26
Pin
417004309
Unavailable
Pin
417004308
Unavailable
27
Cotter Pin
250400060
Unavailable
28
Spring, Violet/blue
415034900
Unavailable
Spring, Violet/yellow This part replaces 415128608.
415015300
Unavailable
29
Ramp (286) | Formula DLX 500 LC.
417005286
Unavailable
30
Puller Inner Half
529007900
Unavailable
Puller This part replaces 529022400.
529000064
Unavailable
31
Drive Belt
414860700
Unavailable
Drive Belt | Formula Deluxe 700.
417300067
Unavailable
32
Spring Washer 14 mm
250200006
Unavailable
Conical Spring Washer M12
250200005
Unavailable
33
Drive Pulley Bolt
417120000
Unavailable
Bolt, Drive Pulley | Formula Deluxe 583.
417120100
Unavailable
34
Loctite 609, 10 ml
413703100
Unavailable
35
Ring Gear (86 tooth) | Skandic 500F. Skandic 500F (SWT).
415043100
Unavailable
36
Hex. Screw M8 X 16
236281684
Unavailable
37
Loctite 271, 10 ml
293800005
Unavailable
38
Clutch Repair Kit
417006100
Unavailable
