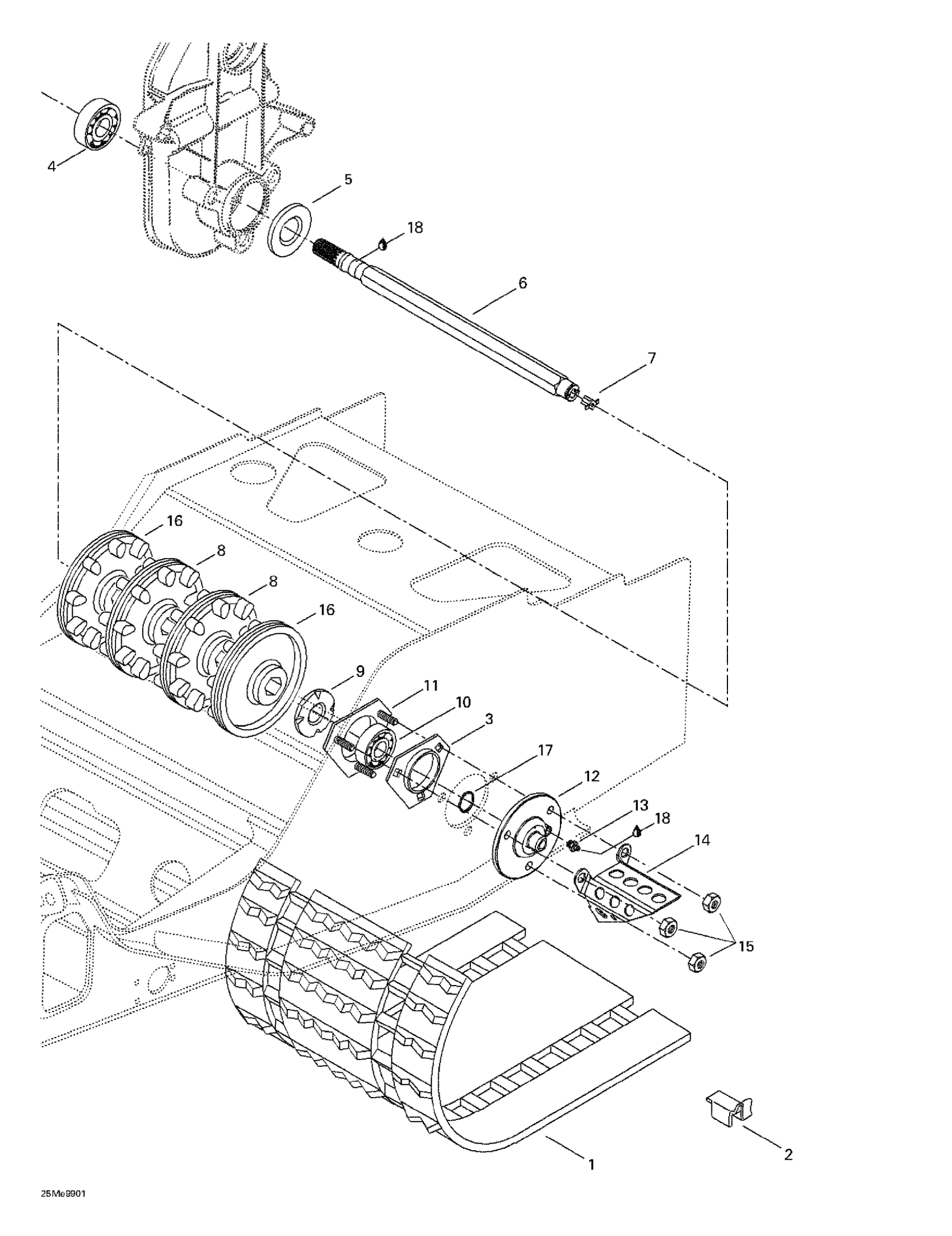

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Drive Axle And Track Diagram
#
Description
Price
1
Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10
504152485
Unavailable
Track Ass'y(Europe) | Includes 1 - 2. Formula S.
570211600
Unavailable
Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10
504152485
Unavailable
Track (Canada) | Formula Deluxe 583.
570212400
Unavailable
2
Track Guide | Track Width 16''
415129528
Unavailable
3
FLANGE - Call your local BRP dealership
501025000
Unavailable
4
Ball Bearing 6206 | Formula 500 LC.
405403900
Unavailable
5
OIL SEAL - Call your local BRP dealership
504151925
Unavailable
6
Drive Axle
501026500
Unavailable
7
SPEEDO DRIVE INSERT - Call your local BRP dealership
572010100
Unavailable
8
9 Tooth Sprocket
414663900
Unavailable
9
BEARING PROTECTOR - Call your local BRP dealership
501017400
Unavailable
10
Ball Bearing
293350060
Unavailable
11
BEARING HOUSING - Call your local BRP dealership
504151860
Unavailable
12
Speedometer Flange
572094000
Unavailable
13
Grease Fitting
408200700
Unavailable
14
CABLE PROTECTOR - Call your local BRP dealership
517290100
Unavailable
15
Hex. Elastic Stop Nut M8
232581414
Unavailable
16
9 Tooth Half Sprocket
414990800
Unavailable
17
CIRCLIP - Call your local BRP dealership
371910200
Unavailable
18
LITHIUM GREASE, 400 GR - Call your local BRP dealership | Skandic WT LC.
413706100
Unavailable
