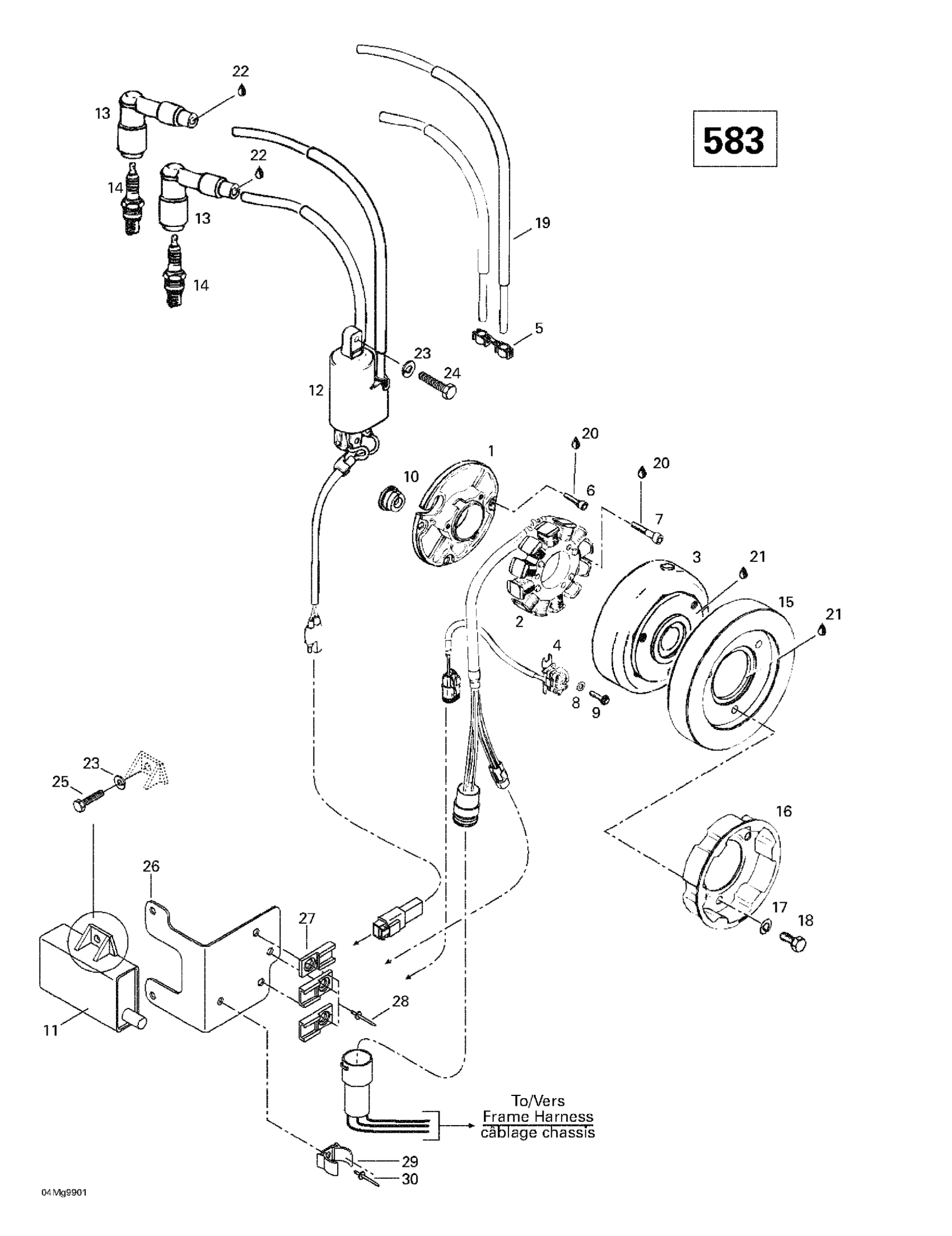

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Magneto 12V 220W (583) Diagram
#
Description
Price
1
Armature Plate | Formula Deluxe 583.
420810262
Unavailable
2
Magneto Ass'y 12V 220W | Includes 2 - 4. Formula Deluxe 583.
410922400
Unavailable
2
Stator Ass'y | Formula Deluxe 583.
410922100
Unavailable
3
Magneto Flywheel | Formula Deluxe 583.
410922500
Unavailable
4
Pick Up Ass'y | Formula Deluxe 583.
410921100
Unavailable
5
Plastic Clip, Spark Plug Wire
410914600
Unavailable
6
SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership
420941540
Unavailable
7
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.
420840887
Unavailable
8
WASHER - Call your local BRP dealership
420827800
Unavailable
9
Taptite Screw M5 X 16
420941928
Unavailable
10
Cable Grommet
420860965
Unavailable
11
Ignition Module | Includes 36 - 47.
512058927
Unavailable
12
IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.
415085400
Unavailable
13
SPARK PLUG CAP - Call your local BRP dealership
278000237
Unavailable
14
Spark Plug NGK BR9ES This part replaces 414961100.
219703120
Unavailable
15
Flywheel | Formula Deluxe 583.
420866759
Unavailable
16
Starting Pulley | Formula Deluxe 700.
420852411
Unavailable
17
Washer-Lock Din.128
420945832
Unavailable
18
Hex. Screw M8 X 20
207182044
Unavailable
19
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.
278002198
Unavailable
20
Loctite 243, 10 ml
293800060
Unavailable
21
Sealant Loctite 648
219703000
Unavailable
22
Dielectric Grease, 150 g This part replaces 413701700.
293550004
Unavailable
23
Lock Washer M6, Black
234161471
Unavailable
24
Hex. Screw M6 X 20 | XT Models
207162044
Unavailable
25
Hex. Screw M6 X 16
207161644
Unavailable
26
Cable Support
515175107
Unavailable
27
Clip
270000141
Unavailable
28
Pop Rivet 3/16"
390402400
Unavailable
29
Clip
415089700
Unavailable
30
RIVET_POP 1/8 - Call your local BRP dealership
390402500
Unavailable
