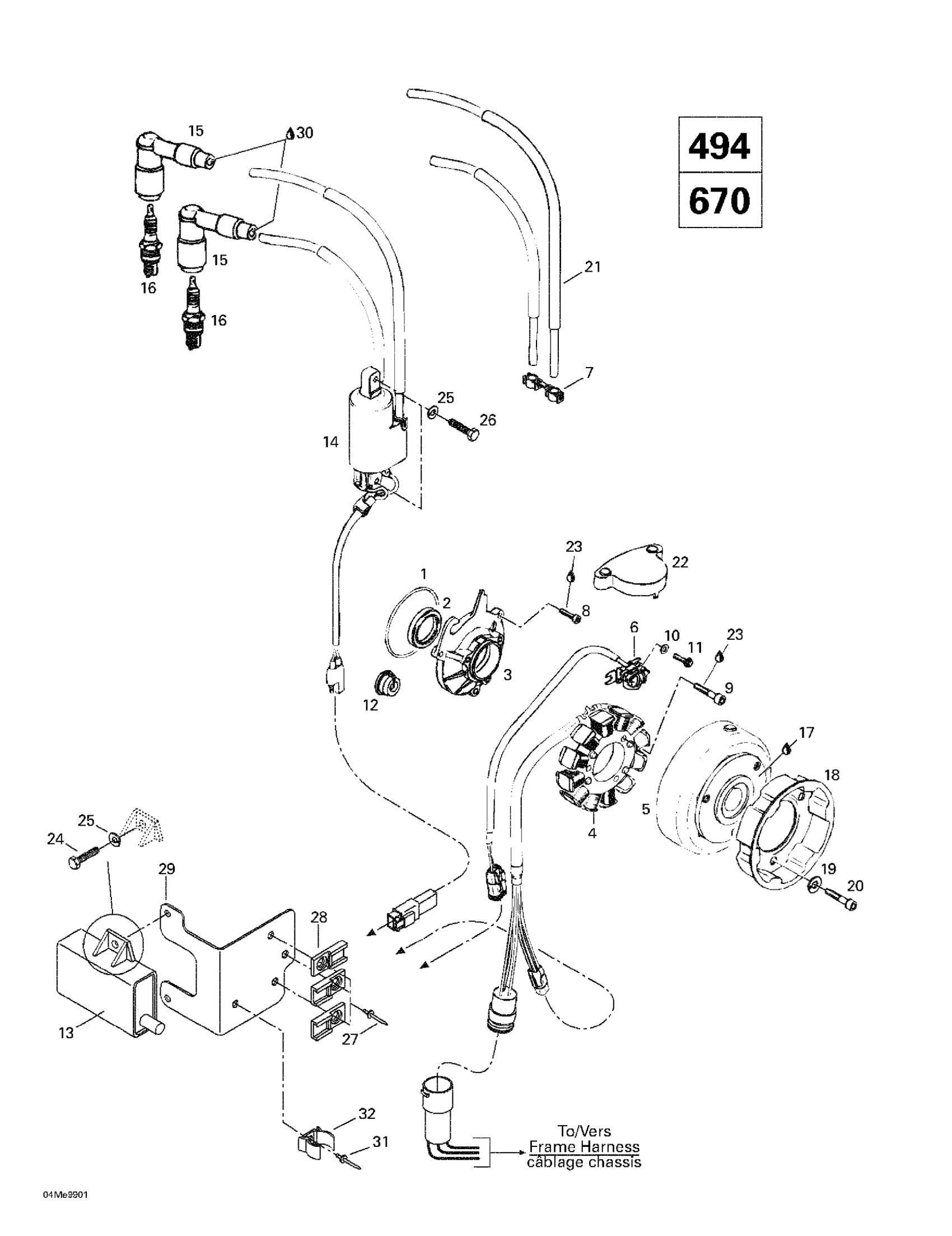

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Magneto 12V 220W (494, 670) Diagram

#

Description
Price

1

O-RING - Call your local BRP dealership

420850430

Unavailable

2

SEAL-OIL - Call your local BRP dealership

420930695

Unavailable

3

Armature Plate

420810265

Unavailable

4

Magneto Ass'y 12V 220W | Includes 4 - 6. Formula Deluxe 500 LC. Formula Deluxe 670.

410922904

Unavailable

4

Stator Plate Ass'y | Includes 4 - 7.

410922905

Unavailable

5

Magneto Flywheel

410922906

Unavailable

6

Pick Up Ass'y

420965642

Unavailable

7

Plastic Clip, Spark Plug Wire

410914600

Unavailable

8

SCREW-ALLEN M5X20 DIN.6912 - Call your local BRP dealership

420941540

Unavailable

9

SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886.

420840887

Unavailable

10

WASHER - Call your local BRP dealership

420827800

Unavailable

11

Allen Screw M5 x 16

420840514

Unavailable

12

Cable Grommet

420860965

Unavailable

13

Ignition Module | Includes 36 - 47.

512058927

Unavailable

14

IGNITION COIL - Call your local BRP dealership | Includes 14 - 19.

415085400

Unavailable

15

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

16

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

17

Sealant Loctite 648

219703000

Unavailable

18

Starting Pulley

420852590

Unavailable

19

Washer-Lock Din.128

420945832

Unavailable

20

Socket Head Screw M8 X 12

420841520

Unavailable

21

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

22

Pick-Up Cover

420810700

Unavailable

23

Loctite 243, 10 ml

293800060

Unavailable

24

Hex. Screw M6 X 16

207161644

Unavailable

25

Lock Washer M6, Black

234161471

Unavailable

26

Hex. Screw M6 X 20 | XT Models

207162044

Unavailable

27

Pop Rivet 3/16"

390402400

Unavailable

28

Clip

270000141

Unavailable

29

Cable Support

515175107

Unavailable

30

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

31

RIVET_POP 1/8 - Call your local BRP dealership

390402500

Unavailable

32

Clip

415089700

Unavailable
