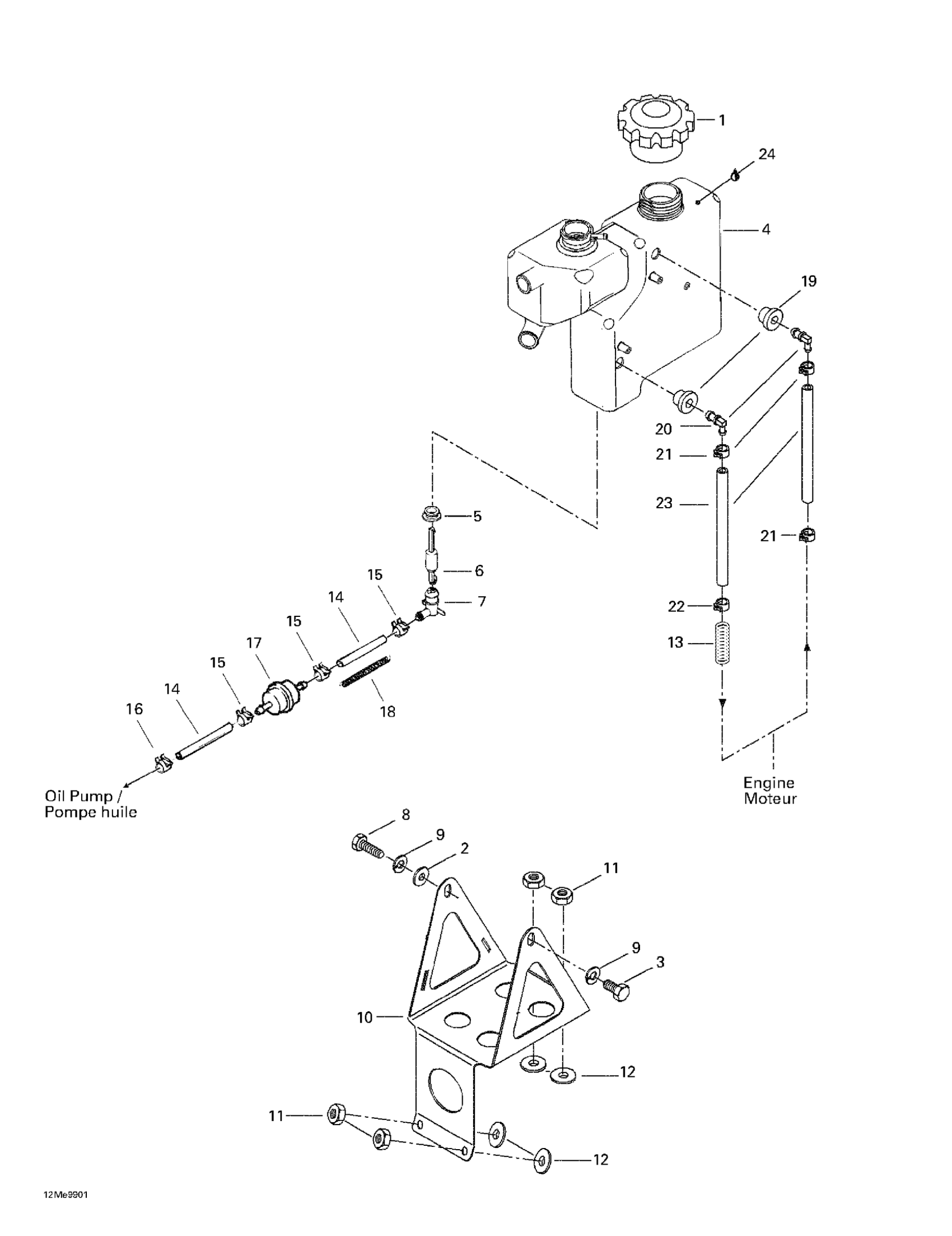

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Oil Tank And Support Diagram
#
Description
Price
1
CAP - Call your local BRP dealership
519000044
Unavailable
2
Flat Washer
224061121
Unavailable
3
HEX. SCREW M6 X 10 - Call your local BRP dealership
207161044
Unavailable
4
Coolant Tank
519000014
Unavailable
5
Insulating Ring
570023000
Unavailable
6
Float
414681900
Unavailable
7
LEVEL SWITCH - Call your local BRP dealership | Canada / U.S.A
414681800
Unavailable
8
HEX. SCREW M6 X 12 - Call your local BRP dealership
207161244
Unavailable
9
Lock Washer M6, Black
234161471
Unavailable
10
Oil Reservoir Support
517278900
Unavailable
11
Elastic Stop Nut M6
232561414
Unavailable
12
Rubber Spacer
414454400
Unavailable
13
Spring
415044100
Unavailable
14
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
15
Spring Clamp
414415200
Unavailable
16
Spring Clamp
414420700
Unavailable
17
Filter
414536500
Unavailable
18
SPRING_COMPRESSION - Call your local BRP dealership
414940300
Unavailable
19
Grommet | Europe
707800347
Unavailable
20
Elbow Fitting
414523600
Unavailable
21
Spring Clamp
414655700
Unavailable
22
SPRING CLIP - Call your local BRP dealership
408801100
Unavailable
23
OIL LINE - Call your local BRP dealership
414644800
Unavailable
24
OIL PRE-MIX 12 X 500ML - Call your local BRP dealership This part replaces 413803100.
293600120
Unavailable
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
2T Snowmobile Premium Mineral Oil This part replaces 413803000.
779120
Unavailable
OIL 2T 3X1G SYNTH - Call your local BRP dealership This part replaces 293600046.
293600133
Unavailable
OIL 2T E-TEC SYNTHETIC 55 GAL/205L This part replaces 293600047.
779130
Unavailable
SYNTHETIC INJECTION OIL, 12 X 1 LITER - Call your local BRP dealership
413710500
Unavailable
