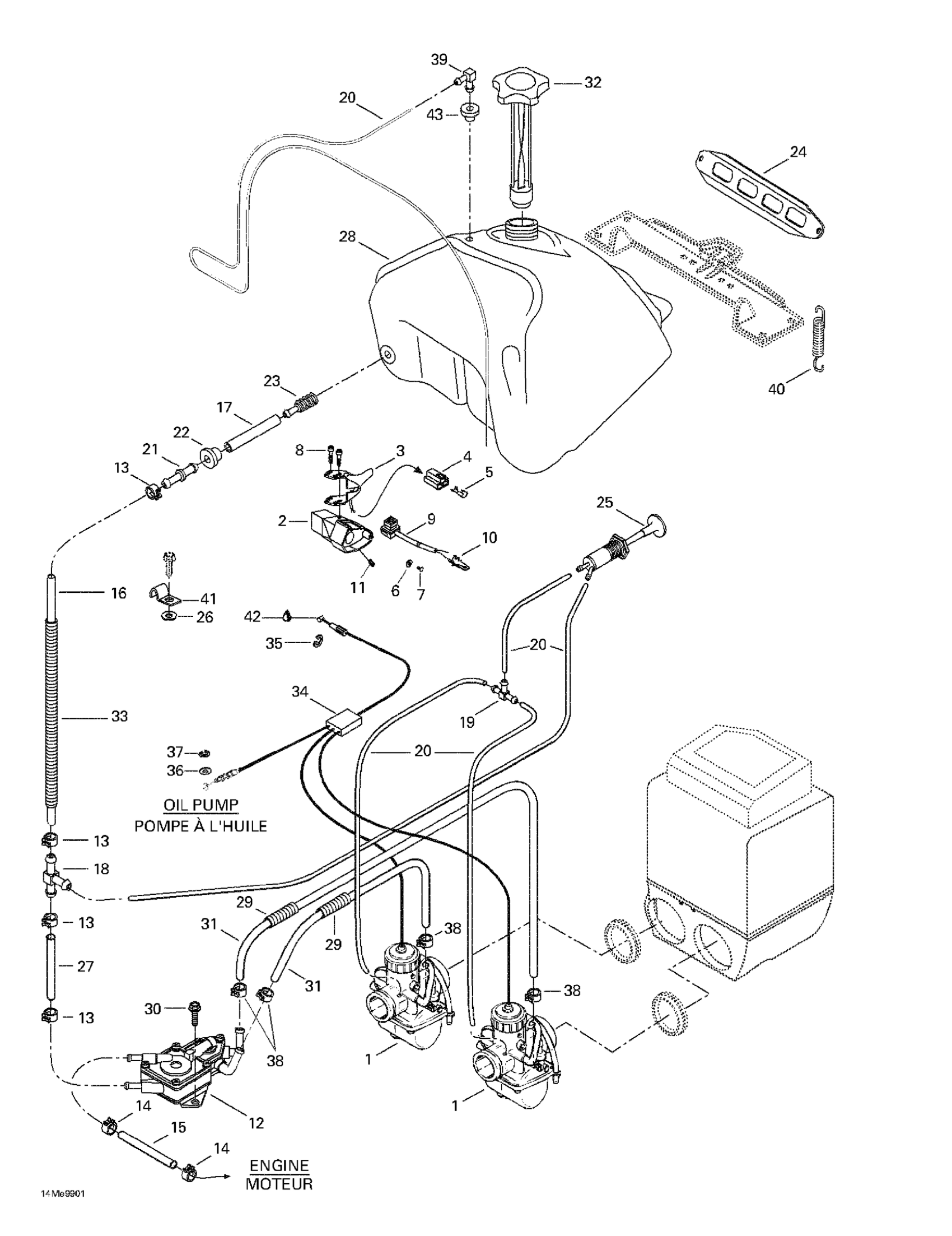

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 02- Fuel System Diagram

#

Description
Price

1

Carburetor VM 38-408 (PTO) | Formula Deluxe 500 LC.

403138527

Unavailable

Carburetor VM 38-409 (MAG) | Formula Deluxe 500 LC.

403138528

Unavailable

Carburetor VM 38-416 (PTO) | Formula Deluxe 583.

403138511

Unavailable

Carburetor VM 38-417 (MAG) | Formula Deluxe 583.

403138512

Unavailable

Carburetor VM 40-109 (PTO) | Formula Deluxe 670.

403138513

Unavailable

Carburetor VM 40-110 (MAG) | Formula Deluxe 670.

403138514

Unavailable

2

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

3

Handle Ass'y

512059348

$93.99

Heat Throttle Handle Ass'y (40 mm) | Formula Deluxe 670.

572057000

Unavailable

4

Female Terminal Housing (3 circuits)

409008500

Unavailable

5

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

6

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

7

Screw

414473200

Unavailable

8

Flange Screw

732601143

$4.12

9

Emergency Stop Switch | Includes 91 to 91a

515177362

$86.99

10

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

11

Socket Set Screw M8 X 10

414440800

$4.12

12

FUEL PUMP ASS'Y - Call your local BRP dealership

403801100

Unavailable

Fuel Pump Ass'y | Formula Deluxe 583. Formula Deluxe 670.

513032919

Unavailable

13

Spring Clamp

414554800

$0.88

Spring Clamp

414655700

$0.72

14

Spring Clamp

414415200

$0.88

15

Hose

219704549

$50.99

16

Polyurethane Hose 10000Mm Long

219704410

$56.99

FUEL LINE 10000MM LONG - Call your local BRP dealership

219704411

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

Hose

415005700

$11.58

18

T-fitting

414222500

$1.69

T-Fitting

415119300

$3.17

19

T-Fitting

414222400

$1.69

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

21

Male Connector

414518500

$4.23

Male Connector

414872700

$1.90

22

Grommet

570045500

$6.69

Grommet | Europe

707800347

$10.49

23

Fuel Filter

414865700

$10.99

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Fuel Tank Bracket

517249200

Unavailable

25

Primer

415060500

$34.99

26

Flat Washer

224061121

$0.53

27

Polyurethane Hose 10000Mm Long

219704410

$56.99

Formed Tube | Formula Deluxe 583. Formula Deluxe 670.

415111400

Unavailable

28

Fuel Tank

572109000

Unavailable

29

Tubing 10 MM 1000MM Long

219704407

$2.79

30

Hex. Screw M6 x 12

732601120

Unavailable

31

Tube

415117800

Unavailable

32

Fuel Tank Cap

513033025

$24.49

33

Tubing 10 MM 1000MM Long

219704407

$2.79

Tubing 16 Mm 1000Mm Long

219704408

$7.49

34

Throttle Cable and Housing (38 mm)

414968801

Unavailable

Throttle Cable and Housing (40 mm) | Formula Deluxe 670.

414966201

Unavailable

35

Circlip

414274500

$0.90

36

Flat Washer 8 mm, Nylon

234081100

$1.39

37

Circlip

414753500

$0.71

38

Spring Clamp

414420700

$0.72

39

Male Connector

414814100

$2.22

40

SPRING - Call your local BRP dealership

517182100

Unavailable

41

CLIP - Call your local BRP dealership

415018200

Unavailable

42

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

43

Grommet

709200285

$9.69
