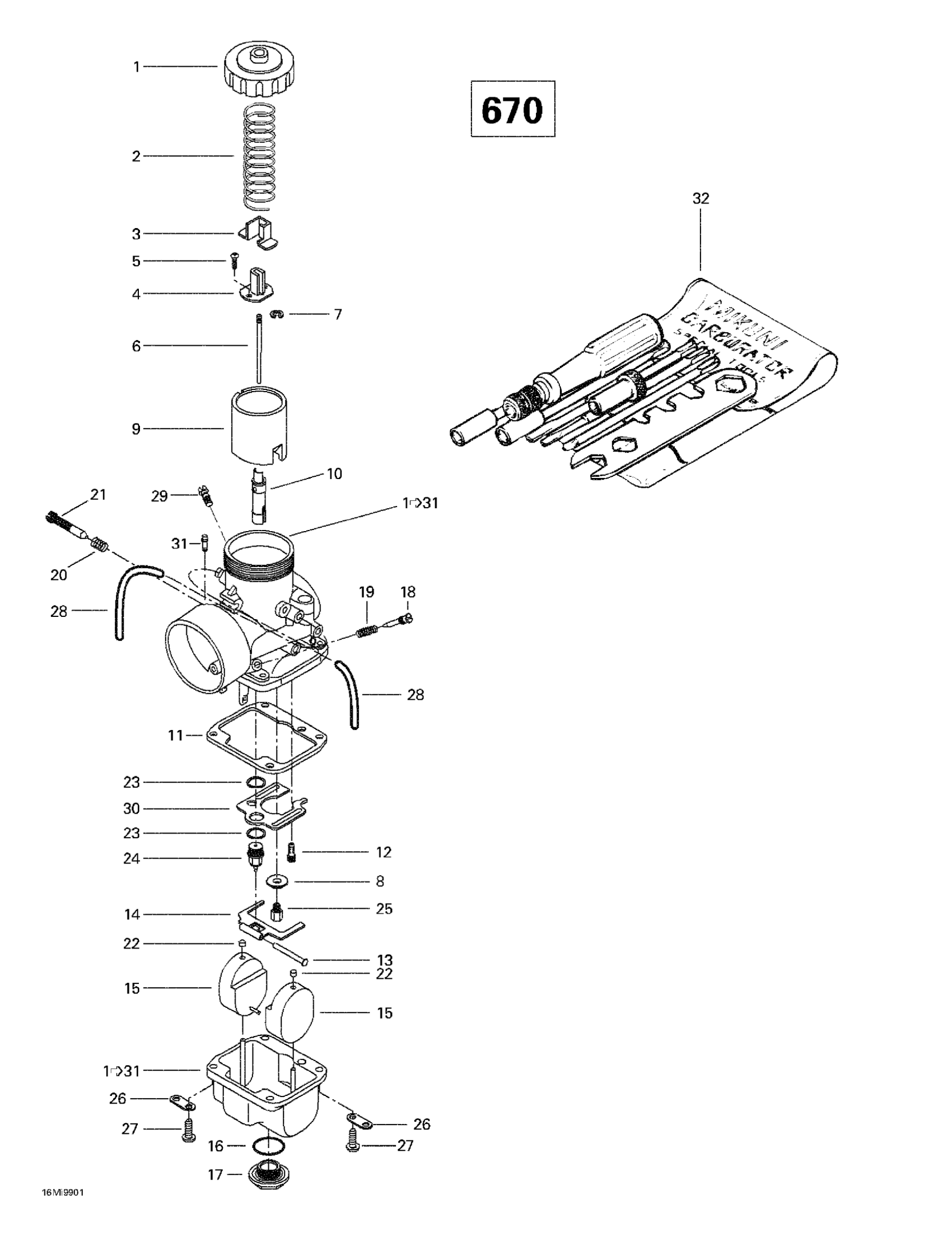

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Carburetors (670) Diagram
#
1
Carburetor VM 40-109 (PTO) | Formula Deluxe 670.
403138513
Unavailable
Carburetor VM 40-110 (MAG) | Formula Deluxe 670.
403138514
Unavailable
1
Cover
404126800
Unavailable
2
Spring
404156500
Unavailable
3
Cover
404128100
Unavailable
4
CONNECTOR - Call your local BRP dealership
404160800
Unavailable
5
Screw With Washer
404121300
Unavailable
6
Jet Needle J8 7EDY1 | Formula Deluxe 670.
404156700
Unavailable
7
E-Ring
404152200
Unavailable
8
Washer
404116700
Unavailable
9
Piston Valve CA 2.5
404132300
Unavailable
10
Needle Jet 224-AA-3 | Formula Deluxe 670.
404151800
Unavailable
11
GASKET - Call your local BRP dealership
404104700
Unavailable
12
Pilot Jet PJ 60 | Formula Deluxe 670.
404121000
Unavailable
13
Lever Pin
404103300
Unavailable
14
FLOAT LEVER - Call your local BRP dealership
404105000
Unavailable
15
FLOAT - Call your local BRP dealership
404105400
Unavailable
16
Washer | Formula Deluxe 500.
404112800
Unavailable
17
Drain Plug Screw | Formula Deluxe 500.
404112900
Unavailable
18
AIR SCREW - Call your local BRP dealership
404149000
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
20
Spring
404101700
Unavailable
21
THROTTLE SCREW - Call your local BRP dealership
404125200
Unavailable
22
Cap
404105800
Unavailable
23
Seat Washer
404101600
Unavailable
24
Needle Valve 1.5
404147400
Unavailable
25
Main Jet MJ 310 (MAG) | Skandic 600.
404107800
Unavailable
Main Jet 290 This part replaces 404162139.
404101100
Unavailable
26
PLATE - Call your local BRP dealership
404103000
Unavailable
27
Screw With Lock Washer
404102000
Unavailable
28
Air Vent Tube
404161802
Unavailable
29
Nipple
404153400
Unavailable
30
Baffle
404112700
Unavailable
31
Filter | Formula Deluxe 380.
404158900
Unavailable
32
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
33
Hight Altitude Kit, (Not Shown) | Formula Deluxe 670.
861767100
Unavailable
