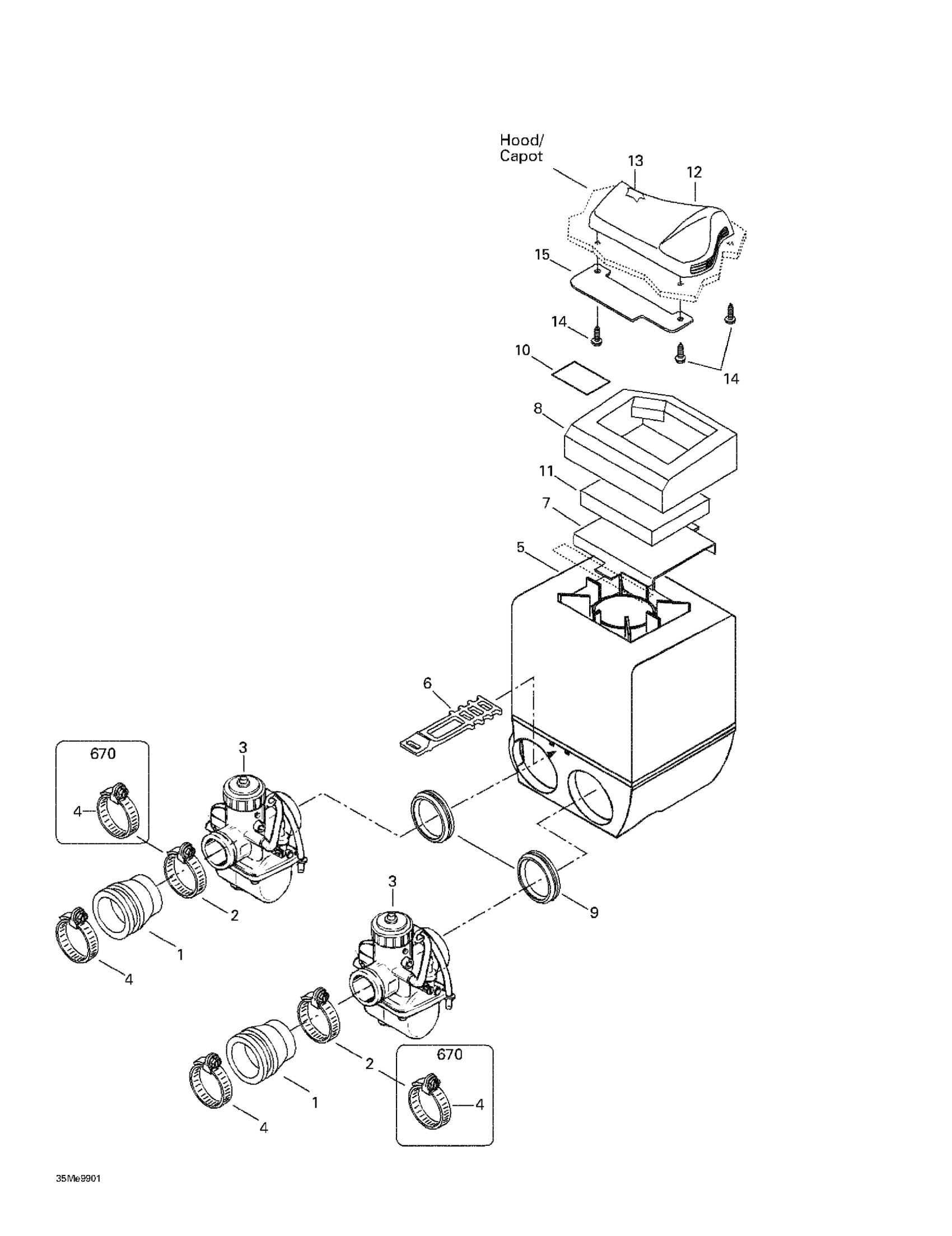

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 02- Air Intake System Diagram
#
Description
Price
1
Adaptor Caburetor (38 mm)
570048100
Unavailable
Adaptor Caburetor | Formula Deluxe 670.
570048400
Unavailable
2
Clamp (50 mm)
415038400
Unavailable
3
Carburetor VM 38-408 (PTO) | Formula Deluxe 500 LC.
403138527
Unavailable
Carburetor VM 38-409 (MAG) | Formula Deluxe 500 LC.
403138528
Unavailable
Carburetor VM 38-416 (PTO) | Formula Deluxe 583.
403138511
Unavailable
Carburetor VM 38-417 (MAG) | Formula Deluxe 583.
403138512
Unavailable
Carburetor VM 40-109 (PTO) | Formula Deluxe 670.
403138513
Unavailable
Carburetor VM 40-110 (MAG) | Formula Deluxe 670.
403138514
Unavailable
4
Collar | Skandic 600.
414532800
Unavailable
5
Air Silencer Ass'y | Includes 5 - 11.
508000026
Unavailable
Air Silencer Ass'y | Formula Deluxe 670.
508000027
Unavailable
6
LATCH - Call your local BRP dealership
570069700
Unavailable
7
Grill Intake
517283900
Unavailable
8
Exterior Foam
415105900
Unavailable
9
Intake Adaptor VM 38
570048900
Unavailable
Intake Adaptor VM 40 | Formula Deluxe 670.
570049000
Unavailable
10
CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.
516002715
Unavailable
12
INTAKE COVER - Call your local BRP dealership
572077900
Unavailable
15
Deflector
517298800
Unavailable
