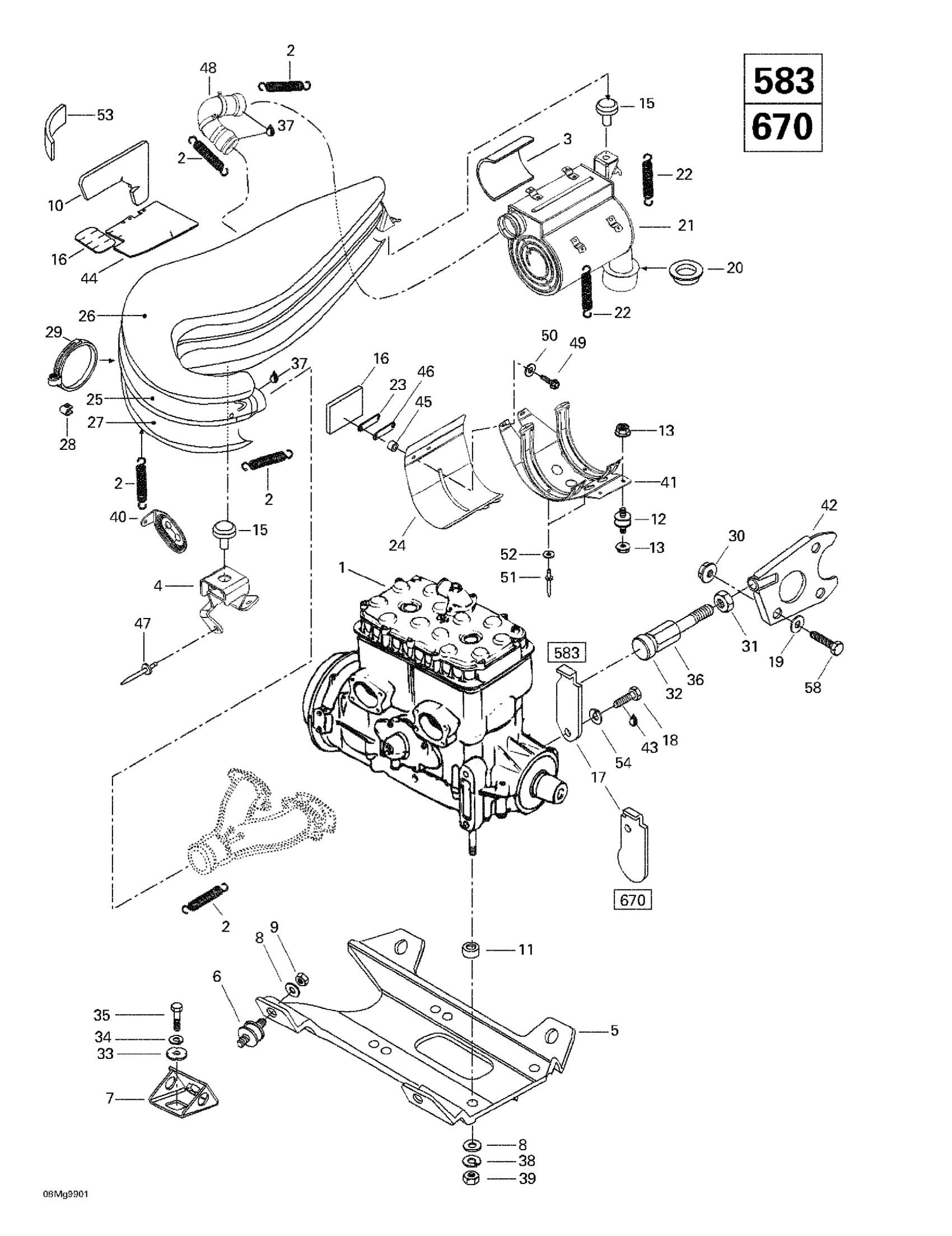

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Engine Support And Muffler (583, 670) Diagram

#

Description
Price

1

<<583>> Engine | Formula Deluxe 583.

400509704

Unavailable

<<670>> Engine | Formula Deluxe 670.

400604002

Unavailable

2

Spring

415107100

Unavailable

3

Reflection Sheet | MX Z 440 F. MX Z 500 F.

414746400

Unavailable

4

Pipe Support | Formula Deluxe 583. Formula Deluxe 670.

514044500

Unavailable

5

Engine Support

512054400

Unavailable

6

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

7

Engine Support

512050900

Unavailable

8

Flat Washer 10 mm

234001410

Unavailable

9

Elastic Locking Nut M10 X 1.5

233601416

Unavailable

10

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415014900

Unavailable

11

Spacer

503128100

Unavailable

12

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Hex. Screw M8 X 25

207182544

Unavailable

15

Rubber Bumper

514053654

Unavailable

16

Reflection Plate | Formula Deluxe 583. Formula Deluxe 670.

414706200

Unavailable

17

Stopper Plate | Formula Deluxe 583.

512049100

Unavailable

Stopper Plate

512052900

Unavailable

18

Hex. Screw M8 x 16

207181644

Unavailable

Hex. Screw M6 X 16

207161644

Unavailable

19

Flat Washer 8 mm

234081410

Unavailable

20

Exhaust Grommet | Formula Deluxe 583. Formula Deluxe 670.

570027300

Unavailable

21

Muffler | Formula Deluxe 583. Formula Deluxe 670.

514044400

Unavailable

22

Spring

414851600

Unavailable

23

Side Bracket

517267100

Unavailable

24

Heat Deflector | Formula Deluxe 583. Formula Deluxe 670.

514044300

Unavailable

25

Tuned Pipe Ass'y | Includes 25 - 29. Formula Deluxe 583. Formula Deluxe 670.

514052803

Unavailable

26

Upper Shell | Formula Deluxe 583. Formula Deluxe 670.

514052808

Unavailable

27

Lower Shell | Formula Deluxe 583. Formula Deluxe 670.

514052809

Unavailable

28

Cleat

514046503

Unavailable

29

Norma Clamp

514052924

Unavailable

30

Hex. Elastic Stop Nut M8

232581414

Unavailable

31

Nut Hexagonal RH.

232026414

Unavailable

32

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

33

Lock Washer

512056700

Unavailable

34

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

35

Hex. Screw M10 X 25

207102544

Unavailable

36

Screw | Formula Deluxe 500 LC.

512052400

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Hex. Nut M10 X 1.5

232006414

Unavailable

40

Pipe Bracket | Formula Deluxe 583. Formula Deluxe 670.

514045100

Unavailable

41

Support Ass'y | Formula Deluxe 583. Formula Deluxe 670.

514044200

Unavailable

42

Support Plate

512055600

Unavailable

43

Loctite 271, 10 ml

293800005

Unavailable

44

Reflection Sheet | Formula Deluxe 583. Formula Deluxe 670.

415049500

Unavailable

45

Rubber Spacer | Formula Deluxe 583. Formula Deluxe 670.

570049300

Unavailable

46

Reinforcement | Formula Deluxe 583. Formula Deluxe 670.

514045200

Unavailable

47

Pop Rivet 3/16"

390906800

Unavailable

48

Tail Pipe | Formula Deluxe 583. Formula Deluxe 670.

514044700

Unavailable

49

Hex. Flange Screw M6 X 30 | International

210263050

Unavailable

50

Flat Washer 6 mm

234061410

Unavailable

51

Pop Rivet 3/16"

390402200

Unavailable

52

Washer

517124300

Unavailable

53

Reflection Sheet (In Hood) | Formula Deluxe 583. Formula Deluxe 670.

415049100

Unavailable

54

Lock Washer 8 mm

234181401

Unavailable

Lock Washer M6, Black

234161471

Unavailable
