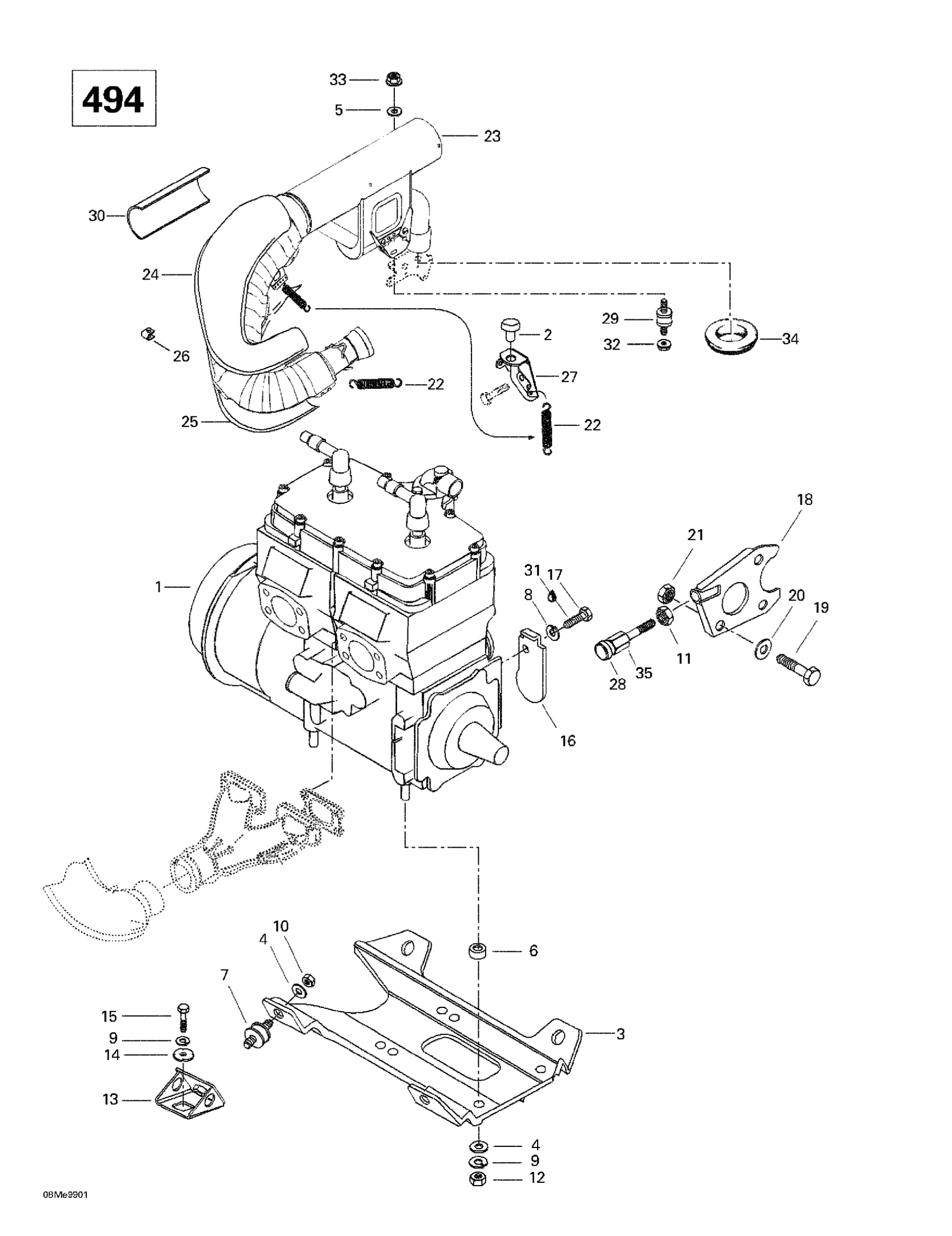

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Engine Support And Muffler (494) Diagram

#

Description
Price

1

<<494>> Engine | Formula Deluxe 500 LC.

400409405

Unavailable

2

Rubber Bumber

514048200

Unavailable

3

Engine Support

512054400

Unavailable

4

Flat Washer 10 mm

234001410

Unavailable

5

Flat Washer 8 mm

234082410

Unavailable

6

Spacer

503128100

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Lock Washer M6, Black

234161471

Unavailable

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

Unavailable

11

Nut Hexagonal RH.

232026414

Unavailable

12

Hex. Nut M10 X 1.5

232006414

Unavailable

13

Engine Support

512050900

Unavailable

14

Lock Washer

512056700

Unavailable

15

Hex. Screw M10 X 25

207102544

Unavailable

16

Stopper Plate

512052900

Unavailable

17

Hex. Screw M6 X 16

207161644

Unavailable

18

Support Plate

512055600

Unavailable

19

Hex. Screw M8 X 25

207182544

Unavailable

20

Flat Washer 8 mm

234081410

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

Unavailable

22

Spring

415107100

Unavailable

23

Muffler | Includes 23 - 26.

514048400

Unavailable

24

Upper Shell

514044020

Unavailable

25

Lower Shell

514048504

Unavailable

26

Cleat

514046503

Unavailable

27

Muffler Support

514048600

Unavailable

28

STOPPER - Call your local BRP dealership | Formula Deluxe 500 LC.

570045400

Unavailable

29

RUBBER MOUNT - Call your local BRP dealership

514052743

Unavailable

30

Reflection Sheet | Formula DLX 500 F.

415064900

Unavailable

31

Loctite 271, 10 ml

293800005

Unavailable

32

Hex. Flange Elastic Nut M8

233281414

Unavailable

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

34

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

35

Screw | Formula Deluxe 500 LC.

512052400

Unavailable
