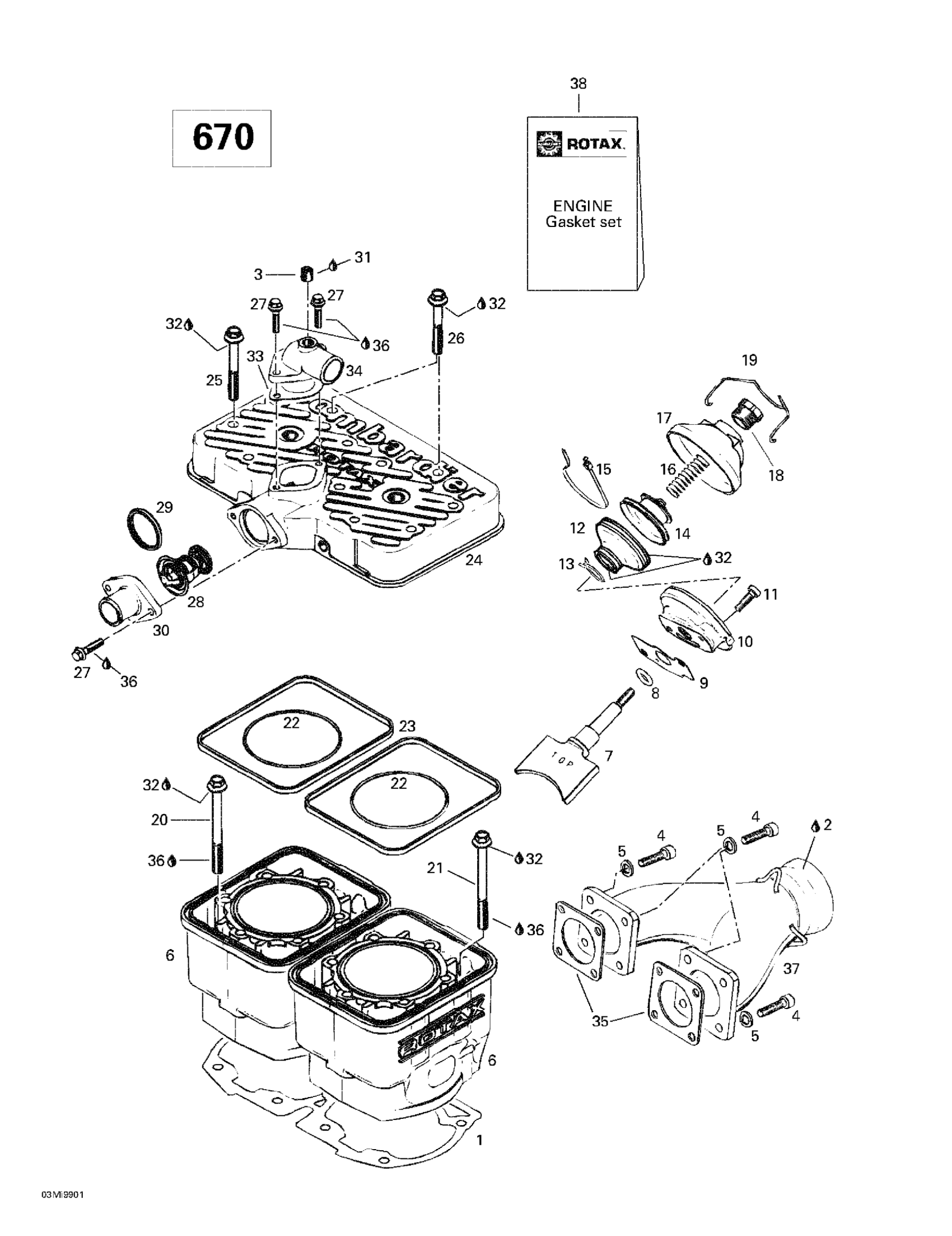

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Cylinder, Exhaust Manifold (670) Diagram

#

Description
Price

1

GASKET-DOUBLE 0.8 MM - Call your local BRP dealership | Formula Deluxe 670.

420931234

Unavailable

Gasket-Double 0.7 mm | Formula Deluxe 670.

420931236

Unavailable

Gasket-Double 0.6 mm | Formula Deluxe 670.

420931232

Unavailable

GASKET-DOUBLE 0.5 MM - Call your local BRP dealership | Formula Deluxe 670.

420931233

Unavailable

Gasket-Double 0.4 mm | Formula Deluxe 670.

420931231

Unavailable

Gasket-Double 0.3 mm | Formula Deluxe 670.

420931230

Unavailable

2

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

3

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

4

Socket Head Screw M6 X 25

205062544

Unavailable

5

Lock Washer M6, Black

234161471

Unavailable

6

Cylinder With Sleeve | Formula Deluxe 670.

420923198

Unavailable

7

Exhaust Valve | Formula Deluxe 670.

420854320

Unavailable

8

O-Ring

420430110

Unavailable

9

GASKET - Call your local BRP dealership | Formula Deluxe 583.

420230256

Unavailable

10

Valve Rod Housing | Formula Deluxe 583.

420253275

Unavailable

11

Socket Head Screw M6 x 16

420241237

Unavailable

12

Bellow

420260721

Unavailable

13

SPRING CLAMP - Call your local BRP dealership

420838190

Unavailable

14

Exhaust Valve This part replaces 290253257.

420854449

Unavailable

15

Clamp 77 mm | Formula Deluxe 583.

420251920

Unavailable

16

SPRING - Call your local BRP dealership

420239948

Unavailable

17

Valve Cover

420911552

Unavailable

18

Adjuster Screw

420241221

Unavailable

19

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

20

Hex. Screw M8 x 100 | Formula Deluxe 670.

420940126

Unavailable

21

Screw M8x105

420941518

Unavailable

22

O-RING - Call your local BRP dealership | Formula Deluxe 670.

420931220

Unavailable

23

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

24

Cylinder head (Violet) | Formula Deluxe 670.

420913547

Unavailable

25

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

Unavailable

26

Hex. Screw M8 X 56.5

420941627

Unavailable

27

Hex.Screw M6 X 20

420441311

Unavailable

28

Thermostat This part replaces 414834100.

420922519

Unavailable

29

SEALING RING - Call your local BRP dealership

420931270

Unavailable

30

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

31

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

32

Dow Corning 111, 150 g

413707000

Unavailable

33

Gasket

420850338

Unavailable

34

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

35

Gasket

420850552

Unavailable

36

Loctite 243, 10 ml

293800060

Unavailable

37

Exhaust Manifold | Formula Deluxe 583.

420973989

Unavailable

38

Gasket Set | Formula Deluxe 670.

420997801

Unavailable
