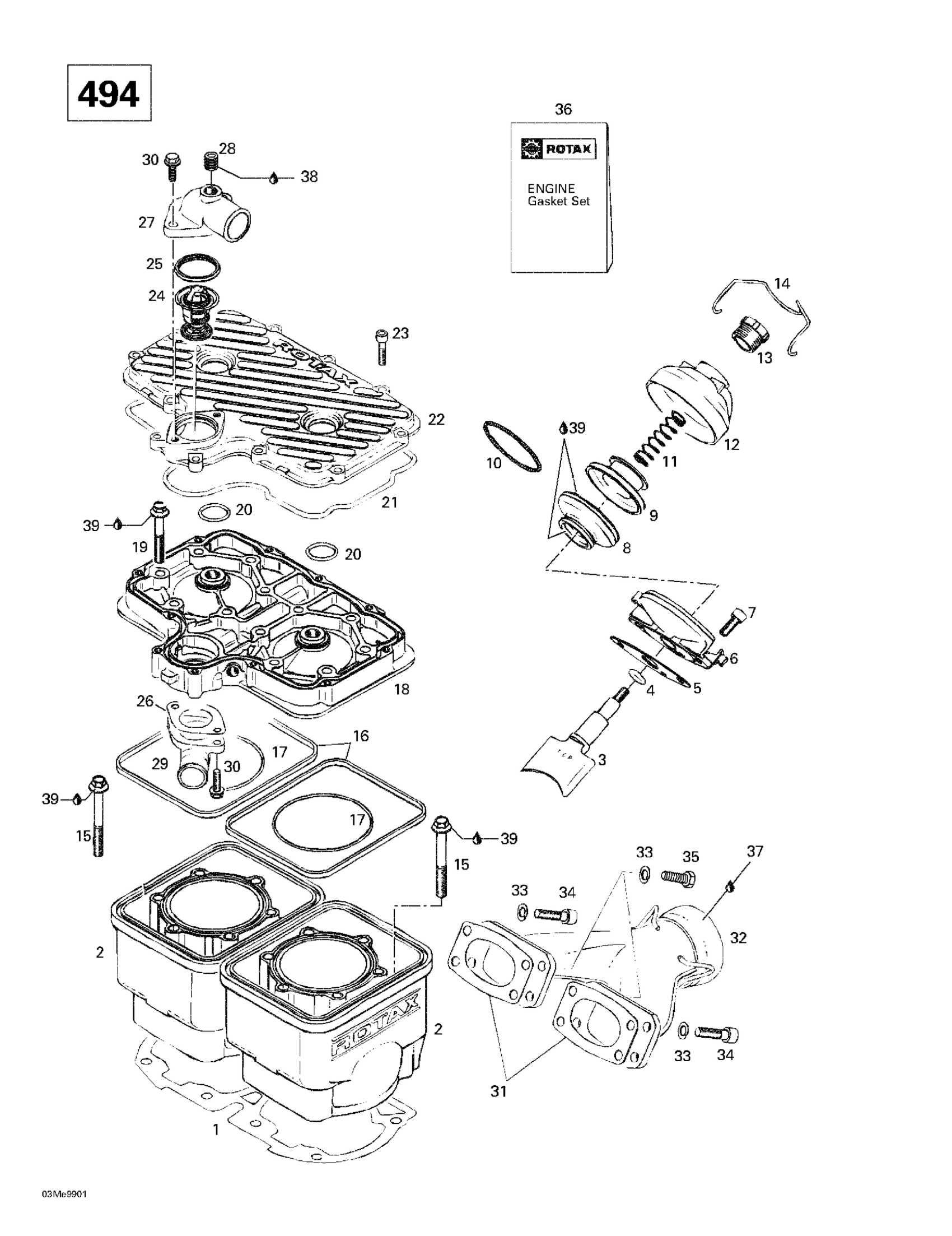

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Cylinder, Exhaust Manifold (494) Diagram

#

Description
Price

1

Gasket Double 0.4 mm

420931361

Unavailable

2

Cylinder With Sleeve Ass'y

420923617

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854300

Unavailable

4

O-Ring

420430110

Unavailable

5

Gasket

420250239

Unavailable

6

Valve Housing | Grand Touring 600.

420854265

Unavailable

7

Socket Head Screw M6 x 16

420241237

Unavailable

8

Exhaust Bellows

420260723

Unavailable

9

Exhaust Valve This part replaces 290253257.

420854449

Unavailable

10

Hose Spring This part replaces 420239048.

420939281

Unavailable

11

Spring This part replaces 420239944.

420239954

Unavailable

12

Valve Cover

420911552

Unavailable

13

Adjuster Screw

420241221

Unavailable

14

SPRING CLIP - Call your local BRP dealership

420838083

Unavailable

15

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

16

RUBBER RING - Call your local BRP dealership This part replaces 290850040.

420850040

Unavailable

17

O-Ring | Grand Touring 500.

420831792

Unavailable

18

Cylinder Head (Yellow) | Formula Deluxe 500 LC.

420923168

Unavailable

19

Hex. Flange Screw M8 X 53.5

420240326

Unavailable

20

O-Ring

420430782

Unavailable

21

O-Ring

420931260

Unavailable

22

Cylinder Head Cover (Yellow) | Formula Deluxe 500 LC.

420923622

Unavailable

23

Socket Head Screw M6 X 25

205062544

Unavailable

24

Thermostat This part replaces 414834100.

420922519

Unavailable

25

SEALING RING - Call your local BRP dealership

420931270

Unavailable

26

Gasket

420850338

Unavailable

27

BENT OUTLET SOCKET - Call your local BRP dealership

420922061

Unavailable

28

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

29

Bent Outlet Socket

420922480

Unavailable

30

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

31

Gasket

420850535

Unavailable

32

Exhaust Manifold

420973228

Unavailable

33

Lock Washer 8 mm

234181401

Unavailable

34

Socket Head Screw M8 X 30

205083044

Unavailable

35

Hex. Screw M8 X 25

207182544

Unavailable

36

Gasket Set | Formula Deluxe 500 LC.

420994226

Unavailable

37

Sealant, Loctite, 80 ml | DS 650

293800090

Unavailable

38

Sealant, 100 gr

413707100

Unavailable

39

Dow Corning 111, 150 g

413707000

Unavailable
