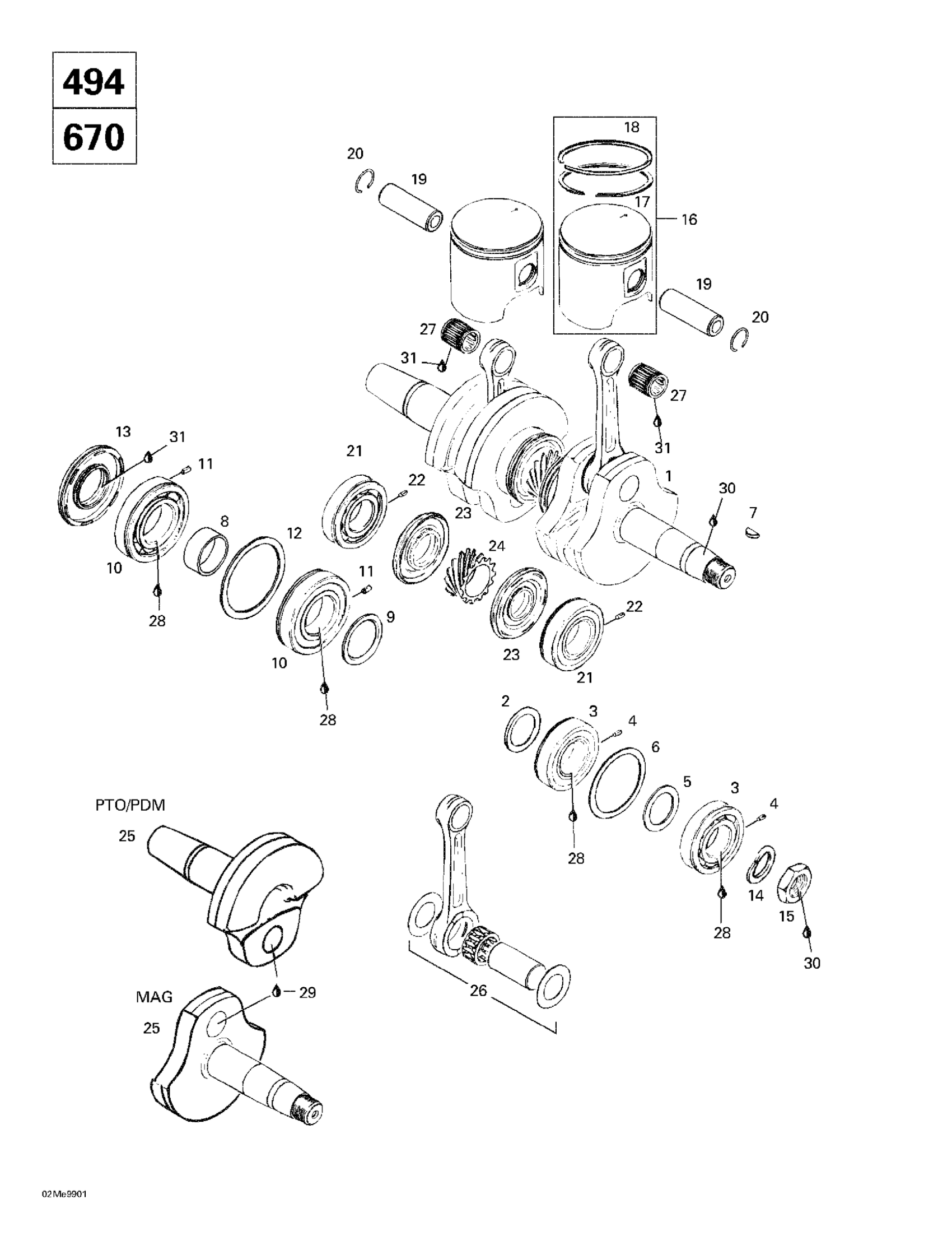

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 01- Crankshaft And Pistons (494, 670) Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 15. Formula Deluxe 500 LC.

420886932

Unavailable

1

Crankshaft Ass'y | Includes 1 - 13. Formula Deluxe 670.

420887985

Unavailable

2

DISTANCE RING - Call your local BRP dealership

420827445

Unavailable

3

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

4

Dowel Pin

420929972

Unavailable

5

ADJUSTMENT WASHER - Call your local BRP dealership

420427684

Unavailable

6

RETAINING DISK - Call your local BRP dealership

420827050

Unavailable

7

Woodruff Key

420246015

$3.17

8

Distance Sleeve | Formula Deluxe 500 LC. Formula Deluxe 670.

420847684

Unavailable

9

DISTANCE RING - Call your local BRP dealership

420827760

Unavailable

10

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

11

Dowel Pin

420929972

Unavailable

12

Retaining Disk

420927710

$7.41

13

Oil Seal This part replaces 290831952.

420831952

$18.01

14

Lock Washer, 22 mm

420945759

$1.90

15

Hex. Nut, M22 X 1.5

420842239

$17.53

16

Piston Ass'y (2 rings 69.39 mm) | Includes 16 - 18.

420887553

Unavailable

Piston Ass'y (2 rings 77.90 mm) | Formula Deluxe 670.

420887610

Unavailable

Oversize Pist. Ass'y (2 rings 69.64 mm)

420887554

Unavailable

Oversize Pist. Ass'y (2 rings 78.15 mm) | Formula Deluxe 670.

420887611

Unavailable

17

Rectangular Ring 69.5 mm

420915985

Unavailable

Rectangular Ring 78.0 mm | Formula Deluxe 670.

420815025

Unavailable

OVERSIZE RECTANGULAR RING 69.75 MM - Call your local BRP dealership

420915986

Unavailable

Oversize Rectangular Ring 78.25 mm | Formula Deluxe 670.

420815021

Unavailable

18

Semi-trapez Ring 69.5 mm

420815045

Unavailable

SEMI-TRAPEZ RING 78.00 MM - Call your local BRP dealership | Formula Deluxe 670.

420815090

Unavailable

Oversize Semi-trapez Ring 69.75 mm

420815046

Unavailable

Oversize Semi-trapez Ring 78.25 mm | Formula Deluxe 670.

420815091

Unavailable

19

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916371

Unavailable

20

Piston Circlip

420945735

$4.46

CIRCLIP - Call your local BRP dealership

420845100

Unavailable

21

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

BALL BEARING - Call your local BRP dealership | Includes 3 - 4.

420832538

Unavailable

22

Dowel Pin

420929972

Unavailable

23

Oil Seal

420831990

$20.49

24

Central Gear 14 Teeth

420935748

Unavailable

25

Crankshaft (PTO side)

420818660

Unavailable

Crankshaft (PTO side) | Formula Deluxe 670.

420818704

Unavailable

Crankshaft (MAG side)

420818690

Unavailable

Crankshaft (MAG side) | Formula Deluxe 670.

420818733

Unavailable

26

Crankshaft Repair Kit (PTO side)

420886955

Unavailable

Crankshaft Repair Kit (MAG side) | Formula Deluxe 670.

420887988

Unavailable

CRANKSHAFT REPAIR KIT (MAG SIDE) - Call your local BRP dealership

420886956

Unavailable

Crankshaft Repair Kit (PTO side) | Formula Deluxe 670.

420887989

Unavailable

27

Needle Bearing

420832438

Unavailable

Needle Bearing

420832445

$27.49

28

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

29

Sealant Loctite 648

219703000

$45.99

30

Loctite 243, 10 ml

293800060

$21.49

31

Dow Corning 111, 150 g

413707000

$59.99
