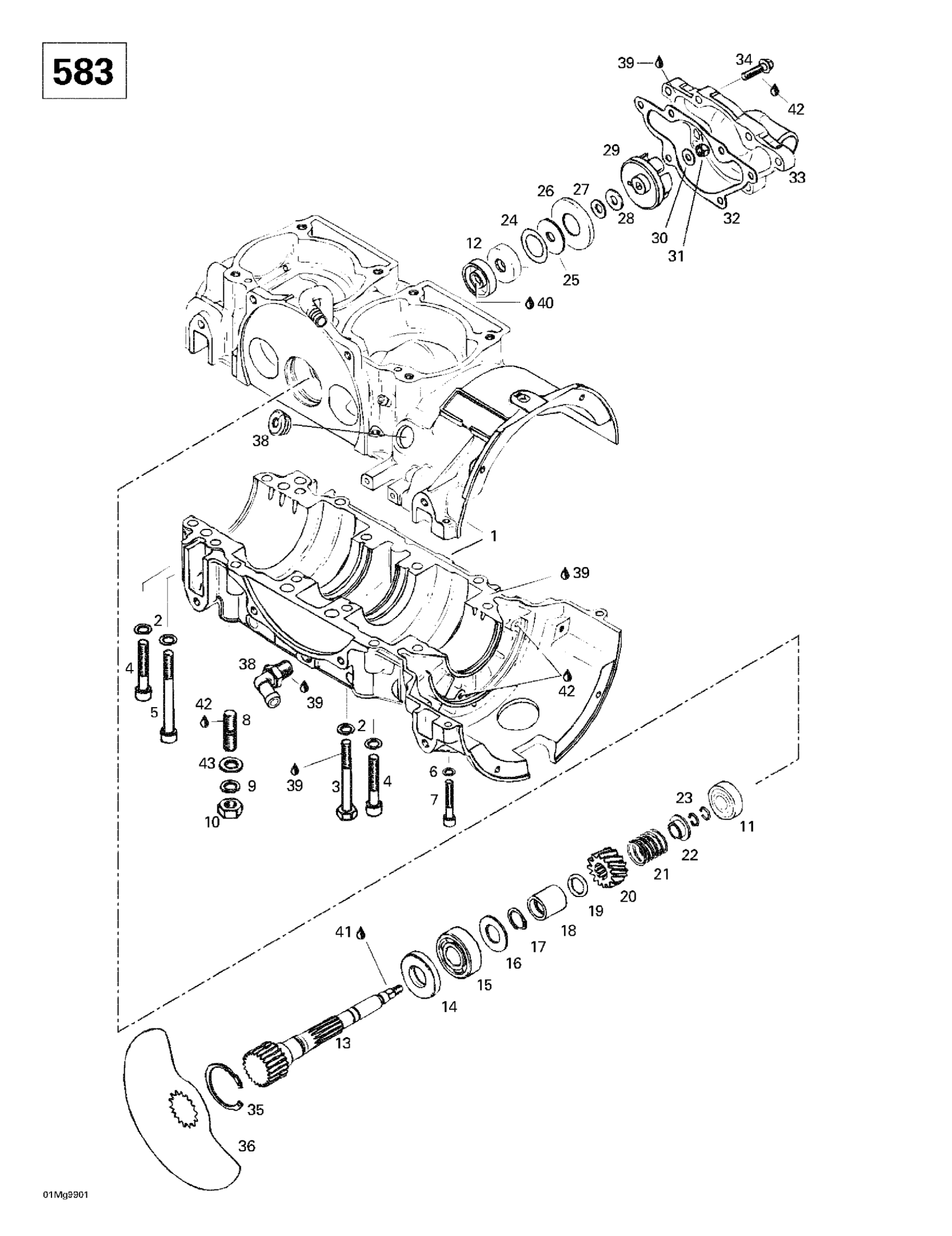

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Crankcase, Rotary Valve, Water Pump (583) Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 - 7. Formula Deluxe 583.

420888091

Unavailable

2

Washer-Lock Din.128

420945832

Unavailable

3

Hex. Screw M8 x 65

207086544

Unavailable

4

Socket Head Screw M8 X 45

420841561

Unavailable

5

ALLEN SCREW M8 X 75 - Call your local BRP dealership

420841831

Unavailable

6

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

7

Socket Head Screw M6 X 35 | Formula Deluxe 583. This part replaces 420241811.

420241814

Unavailable

8

Stud M10 X 29/20

420940190

Unavailable

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Hex. Nut M10 X 1.5

232006414

Unavailable

11

Ball Bearing

420932797

Unavailable

12

Oil Seal This part replaces 420850710.

420850711

Unavailable

13

Rotary Valve Shaft | Formula Deluxe 583.

420837242

Unavailable

14

OIL SEAL - Call your local BRP dealership

420930580

Unavailable

15

BALL BEARING - Call your local BRP dealership

293350051

Unavailable

16

SHIM - Call your local BRP dealership

420227439

Unavailable

17

SNAP RING - Call your local BRP dealership

420845450

Unavailable

18

SPACER BUSHING - Call your local BRP dealership

420847282

Unavailable

19

O-Ring

293300024

Unavailable

20

Sprocket 14Th This part replaces 420935735.

420935736

Unavailable

21

SPRING - Call your local BRP dealership

420938810

Unavailable

22

SPRING SEAT - Call your local BRP dealership

420827430

Unavailable

23

CIRCLIP - Call your local BRP dealership

420845160

Unavailable

24

SHIM - Call your local BRP dealership | Formula Deluxe 583.

420944462

Unavailable

25

Rubber Washer | Formula Deluxe 583.

420850890

Unavailable

26

Supporting Plate | Formula Deluxe 583.

420827970

Unavailable

27

Thrust Washer

420227945

Unavailable

28

Washer

420227155

Unavailable

29

WATER IMPELLER - Call your local BRP dealership

420922036

Unavailable

30

Flat Washer

224061121

Unavailable

31

Locking Nut M6

420842042

Unavailable

32

Gasket

420931355

Unavailable

33

Water Pump Housing

420922551

Unavailable

34

Hex. Screw M6 X 25

420240034

Unavailable

35

Lock Ring

420945880

Unavailable

36

ROTARY VALVE, 159 - Call your local BRP dealership This part replaces 290924502.

420924502

Unavailable

37

Angular Tube

420922242

Unavailable

38

Cable Grommet

420860965

Unavailable

39

Was 413702700 Loctite 515, 50 ml

219704462

Unavailable

40

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

Unavailable

41

Sealant Loctite 648

219703000

Unavailable

42

Loctite 243, 10 ml

293800060

Unavailable
