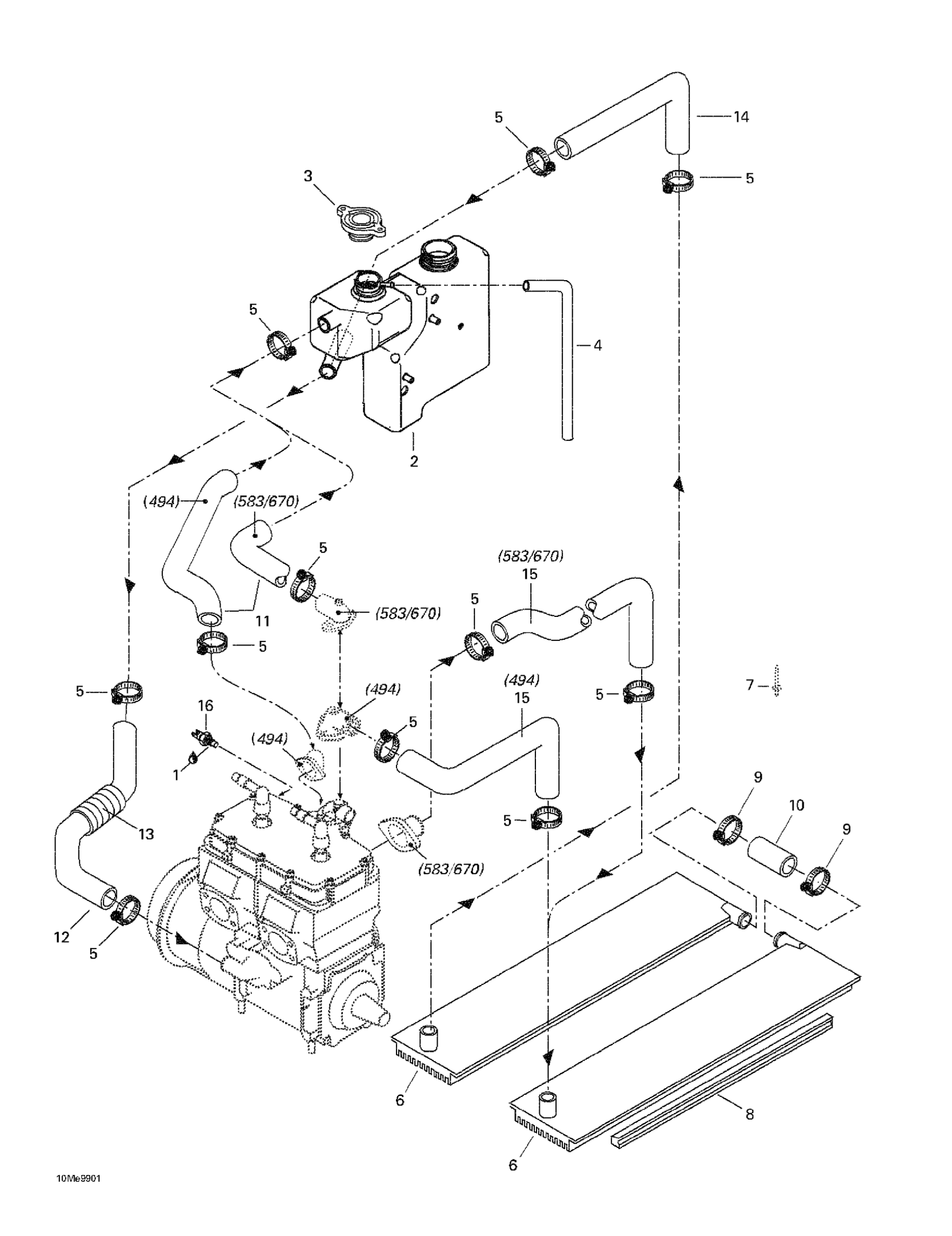

Ski-Doo Formula Deluxe 500 LC/583/670, 1999 Cooling System Diagram

#

Description
Price

1

Was 293800018 Loctite 592, 50 ml | Package T

219704455

Unavailable

2

Coolant Tank

519000014

Unavailable

3

Pressure Cap

509000187

Unavailable

4

Polyurethane Hose 10000Mm Long

219704410

Unavailable

5

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

6

RH Radiator

517280510

Unavailable

LH Radiator

517280511

Unavailable

7

Not Available As Spare Part - Friction Washer

Unavailable

8

Radiator Protector

415056500

Unavailable

9

Clamp Tridon

408803400

Unavailable

10

Radiator Hose

414795800

Unavailable

11

Engine Outlet Hose

414972900

Unavailable

Engine Outlet Hose | Formula Deluxe 583. Formula Deluxe 670.

414973300

Unavailable

12

Engine Inlet Hose

415010400

Unavailable

13

Was 415084700 Protective Shield | Grand Touring 500.

219704413

Unavailable

14

Radiator Outlet Hose

414973000

Unavailable

15

Radiator Inlet Hose

415028000

Unavailable

Radiator Inlet Hose | Formula Deluxe 583. Formula Deluxe 670.

415008500

Unavailable

16

Temperature Sensor | Formula Deluxe 600. Formula Deluxe 700.

414728700

Unavailable
