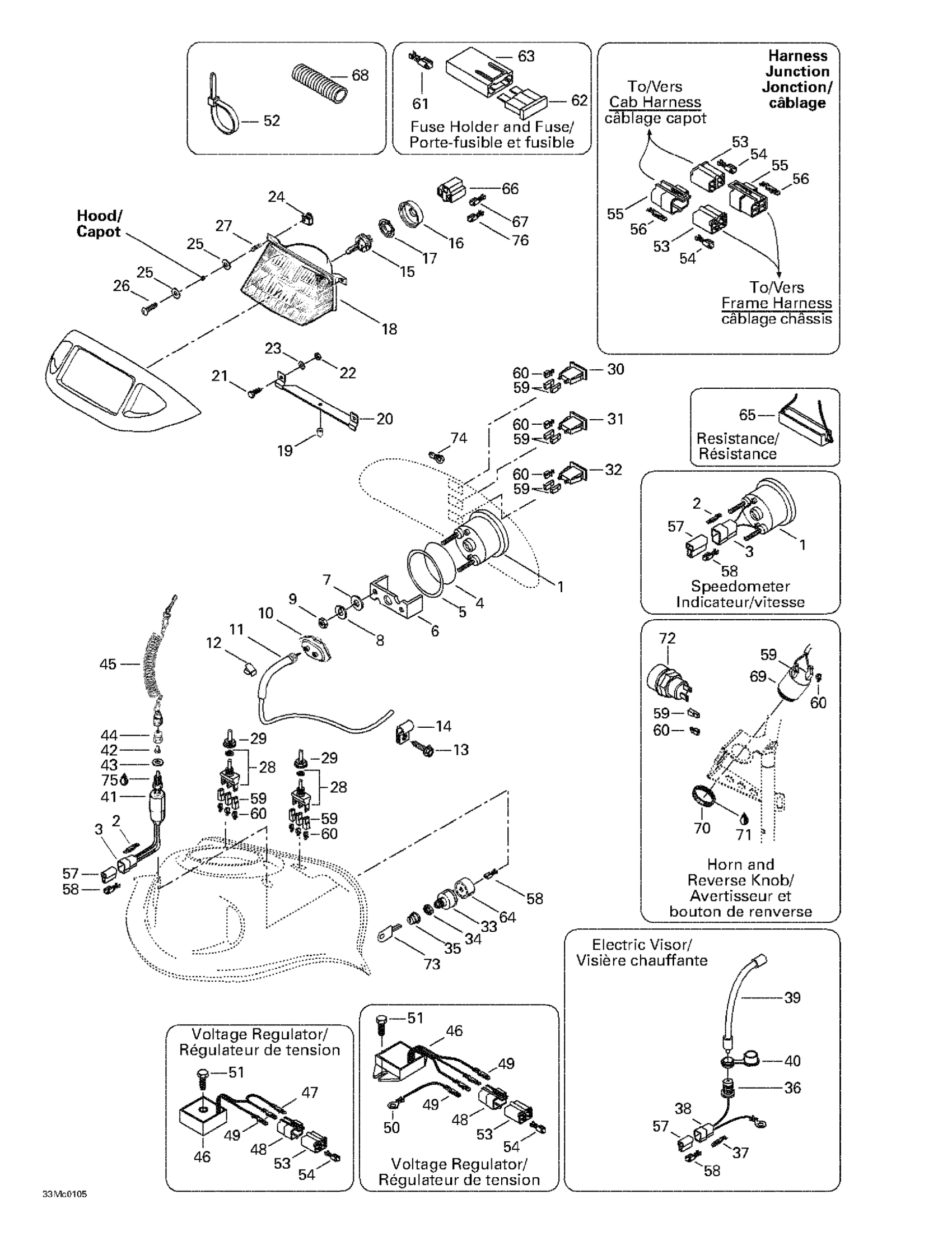

Ski-Doo Formula Deluxe 500 F, 2001 10- Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

O-Ring

414807100

Unavailable

5

Washer

517258500

Unavailable

6

Case Holder

414806500

Unavailable

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Lock Washer

414806700

Unavailable

9

Nut

414806900

Unavailable

10

Drive Angle

515175400

Unavailable

11

Speedometer Cable

414761400

Unavailable

12

Clip

414227300

$1.67

13

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

14

Open Clamp

414176000

$1.99

15

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

16

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

17

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

18

Headlamp | Includes 53 to 56

410609300

Unavailable

19

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

20

Headlamp Support

517218500

Unavailable

21

Hex. Screw M5 X 12

207151244

$0.90

22

Elastic Stop Nut M5

232551414

$0.87

23

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

24

Projector Nut

572078600

Unavailable

25

Flat Washer M5

234051410

$0.53

26

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

27

Spring

517168600

$7.39

28

Switch (Heating Grip) | FREERIDE

410107300

$35.99

29

Switch Cover

515175281

$15.99

30

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

31

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

32

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

33

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

34

FACE NUT - Call your local BRP dealership

410112100

Unavailable

35

Switch Boot

570013700

$11.49

36

Visor Plug Harness | Formula Deluxe 380 F.

515175111

Unavailable

37

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

38

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

39

EXTENSION - Call your local BRP dealership

515175971

Unavailable

40

Cap

572103300

$10.49

41

Brake Switch

515175653

$19.49

42

Plunger Cap

570151100

$9.85

43

Not Available As Spare Part - Friction Washer

Unavailable

44

Switch Nut

515145900

$12.12

45

Cap Ass'y

515178283

$38.99

46

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

46

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515175546

Unavailable

47

Not Available As Spare Part - Friction Washer

Unavailable

48

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

51

Hex. Flange Screw M6 X 16

210261650

$1.67

SCREW-FORMING HEX.HD.FL.GM6174M - Call your local BRP dealership

210263580

Unavailable

52

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Tie-Rap 180 mm

414115200

$0.11

Tie Wrap 368 mm

293750008

$1.04

Tie Wrap 94 mm | 4X4

293750001

$1.03

53

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

54

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

55

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

56

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

57

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

58

Female Terminal

561503100

$2.41

59

Female Terminal Housing, 1 Circuit

409010400

$7.62

60

Female Terminal

409010100

$5.61

61

Female Terminal

409003600

Unavailable

62

Fuse, 30 Amperes

410917200

$3.28

63

Fuse Holder

409004000

$8.09

64

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

65

Resistance

515175241

$17.99

66

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

67

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

68

Tubing 10 MM 1000MM Long

219704407

$2.79

69

HORN - Call your local BRP dealership

515176035

Unavailable

70

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

71

Silicone Sealant 51388, 300 ml

296000309

$36.99

72

Push Button

415130372

$122.49

73

Blank Key

415129350

$26.49

74

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable

75

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

76

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

77

Frame Harness (Not Shown) | MX Z 380 F.

515175362

Unavailable

78

Frame Harness (Not Shown) | Formula Deluxe 380 F.

515175361

Unavailable

79

Hood Harness (Not Shown) | MX Z 380 F.

515175359

Unavailable
