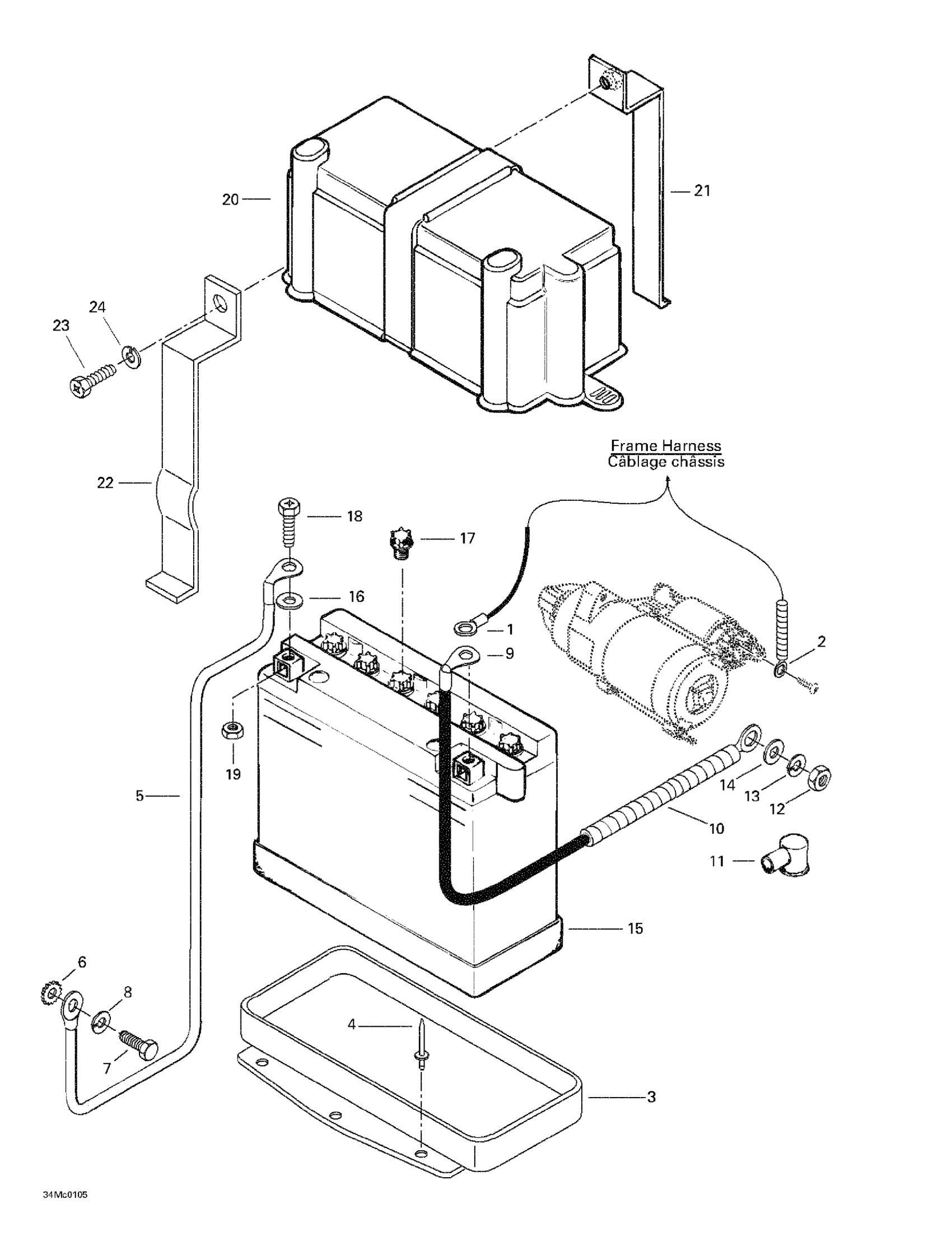

Ski-Doo Formula Deluxe 500 F, 2001 10- Battery Diagram

#

Description
Price

1

Open Barrel Terminal

278001392

$4.79

2

Open Barrel

409012500

Unavailable

3

Battery Seat | Formula Deluxe 380 F.

517286200

Unavailable

4

Pop Rivet 3/16"

390402200

$0.35

5

Ground Wire | Formula Deluxe 380 F.

515175425

Unavailable

6

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

7

Hex. Screw M6 X 14

207161444

$0.58

8

Lock Washer M6, Black

234161471

$0.53

9

Battery Wire | Formula Deluxe 380 F.

515175488

Unavailable

10

Was 409901700 Tubing (9 mm)

219704399

$84.99

11

Protection Cap

570151000

$21.99

12

Hex. Nut M8

232081414

$0.72

13

Washer-Lock Din.128

420945832

$1.15

14

Flat Washer 8 mm

234081410

$0.83

15

Battery | Includes 4 - 8.

410301100

Unavailable

16

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

17

Battery Cap

410300800

Unavailable

18

Hex. Screw M6 X 16

207161644

$0.74

19

Hex. Nut M6

232061414

$0.53

20

Battery Cover

570022000

Unavailable

21

Steel Strip | Formula Deluxe 380 F.

517286000

Unavailable

22

Steel Strip | Formula Deluxe 380 F.

517286100

Unavailable

23

Hex. Screw M5 X 20

207152044

$0.90

24

Lock Washer 5 mm | Europe

234151401

$0.55
