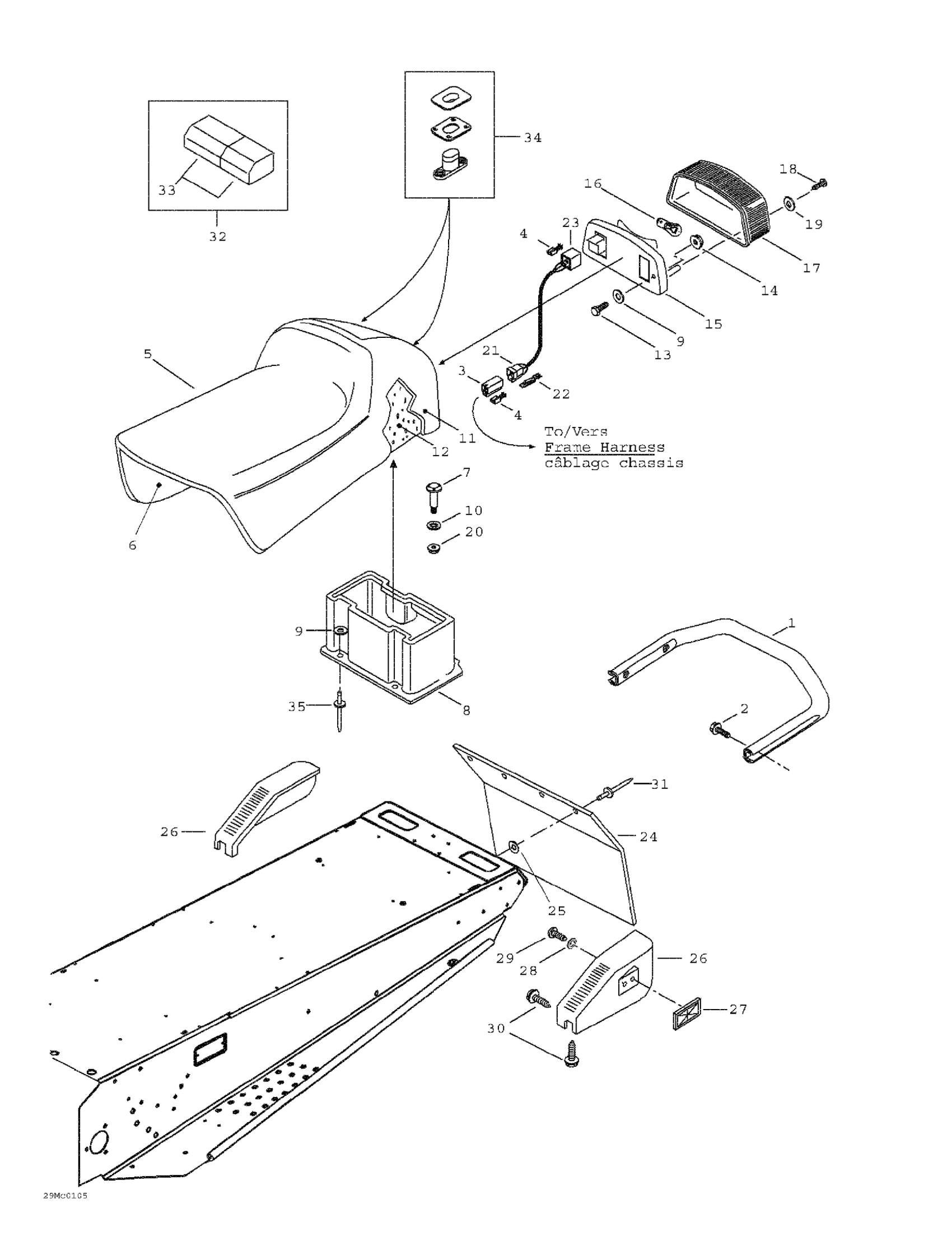

Ski-Doo Formula Deluxe 500 F, 2001 09- Seat And Accessories Diagram

#

Description
Price

1

REAR BUMPER - Call your local BRP dealership

518322438

Unavailable

2

Hex. Flange Screw M8 X 20

207682044

$1.15

3

Female Housing

409204300

Unavailable

4

Female Terminal

561503100

$2.41

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Sub Seat

510003597

Unavailable

7

«T» Bolt

732601221

Unavailable

8

Rear Trunk, Se-Air | Grand Touring 600. Grand Touring 700.

572106300

Unavailable

9

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

10

Push Nut

732610072

$2.19

11

Seat Cover | MX Z 380 F.

510003891

Unavailable

Seat Cover | Formula Deluxe 380 F.

510003704

Unavailable

12

Foam Seat

414837100

Unavailable

13

Hex. Screw M5 X 30

207053044

$1.16

14

Hex. Flange Elastic Nut M5

233251414

$1.04

15

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

16

Bulb

520000758

$9.10

17

Lens

414513700

$28.99

18

Phillips Tapping Screw M3.9 X 25

209632540

$1.26

19

Washer - Call your local BRP dealership

414516400

Unavailable

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

21

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

22

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

23

Female Terminal Housing, 3 Circuits

515175250

Unavailable

24

Snow Guard | MX Z 380 F.

572099100

Unavailable

Snow Guard | Formula Deluxe 380 F.

572059700

Unavailable

25

Flat Washer

517225900

$0.18

26

RH Moulding Ass'y | Includes 26 - 29.

580642000

Unavailable

LH Moulding Ass'y

580642100

Unavailable

27

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

28

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

29

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

30

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

31

Pop Rivet 3/16"

293150100

$1.09

32

TOOL KIT - Call your local BRP dealership

529035500

Unavailable

33

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

34

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable
