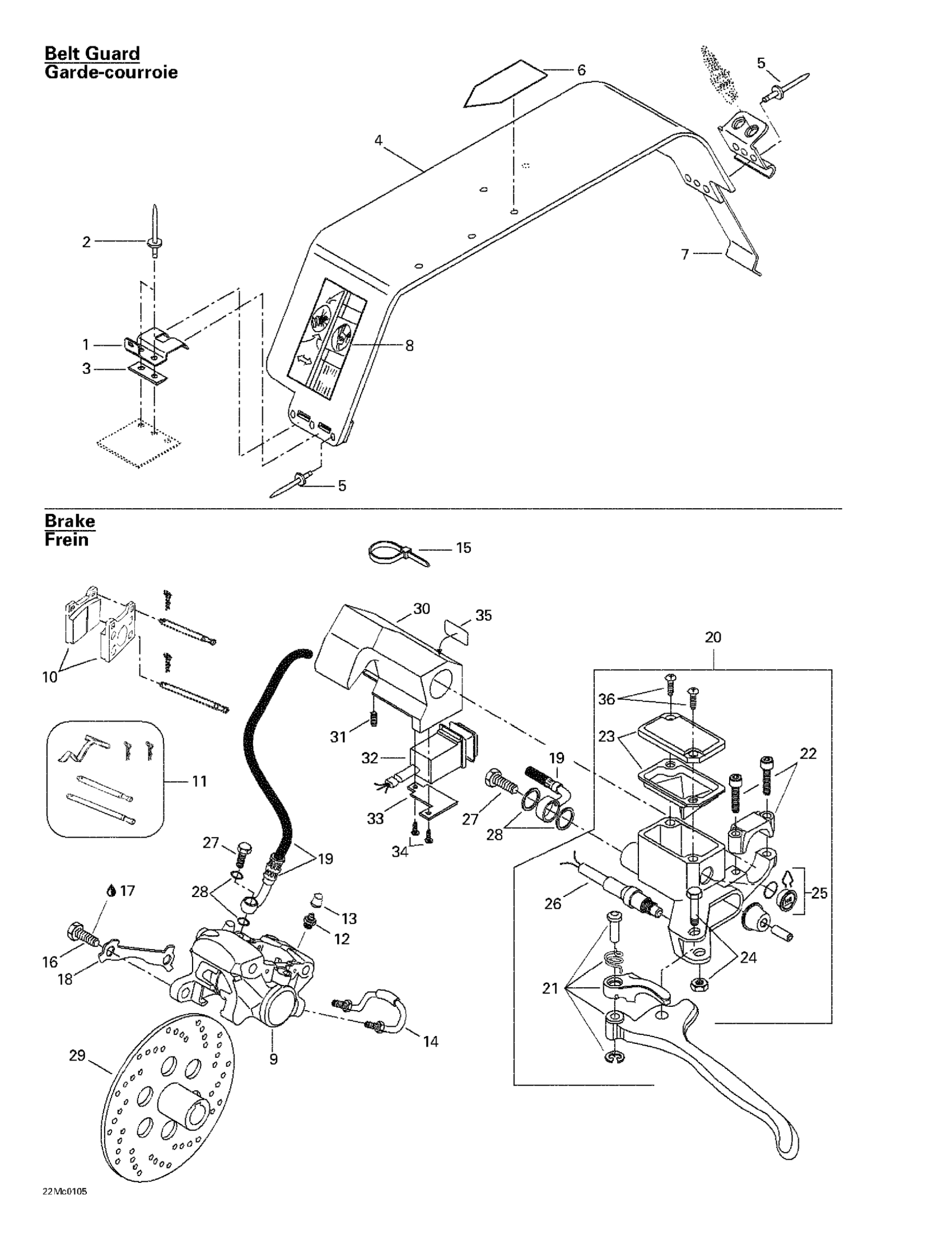

Ski-Doo Formula Deluxe 500 F, 2001 Hydraulic Brake And Belt Guard Diagram

#

Description
Price

1

Pulley Guard Bracket

518314200

Unavailable

2

Pop Rivet 3/16"

390402200

$0.30

3

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

4

Belt Guard Ass'y | Includes 4 - 7.

417300012

Unavailable

5

Pop Rivet 3/16"

380402200

Unavailable

6

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

7

Tool Box Spring

414941800

Unavailable

8

Suspension Adjustment Decal

418001701

Unavailable

9

Caliper | Includes 6 - 11. 500 F.

415034500

Unavailable

10

Brake Pad Kit

415129172

$49.22

11

KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership

414990700

Unavailable

12

BLEEDER SCREW - Call your local BRP dealership

414989800

Unavailable

13

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

14

RIGID TUBING - Call your local BRP dealership

414989900

Unavailable

15

Tie-Rap 180 mm

414115200

$0.10

16

Hex. Screw M10 X 35

207103544

$1.63

17

Loctite 243, 10 ml

293800060

$21.49

18

Locking Tab

507029900

Unavailable

19

HOSE - Call your local BRP dealership This part replaces 507032212.

507032568

Unavailable

20

Master Cylinder Kit | Includes 20 - 26. This part replaces 507032294.

415130002

$328.33

21

LEVER - Call your local BRP dealership

507032428

Unavailable

22

Clamp And Screw Kit

507032477

$22.36

23

Cap

415029900

$38.78

24

Pin Ass'y

415030000

$17.13

25

WINDOW - Call your local BRP dealership

414990600

Unavailable

26

Microswitch

507032366

$101.46

27

Banjo Bolt

414920500

$8.24

28

Washer

414920600

$1.75

29

Brake Disk

507032203

Unavailable

30

DIMMER SWITCH HOUSING - Call your local BRP dealership | SWT 550

572079500

Unavailable

31

Socket Set Screw M8 X 10

414440800

$3.88

32

Dimmer Switch

515175371

Unavailable

33

Plate | SWT 550

517283800

Unavailable

34

Screw

414473200

Unavailable

35

Switch Decal

415025500

Unavailable

36

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable
