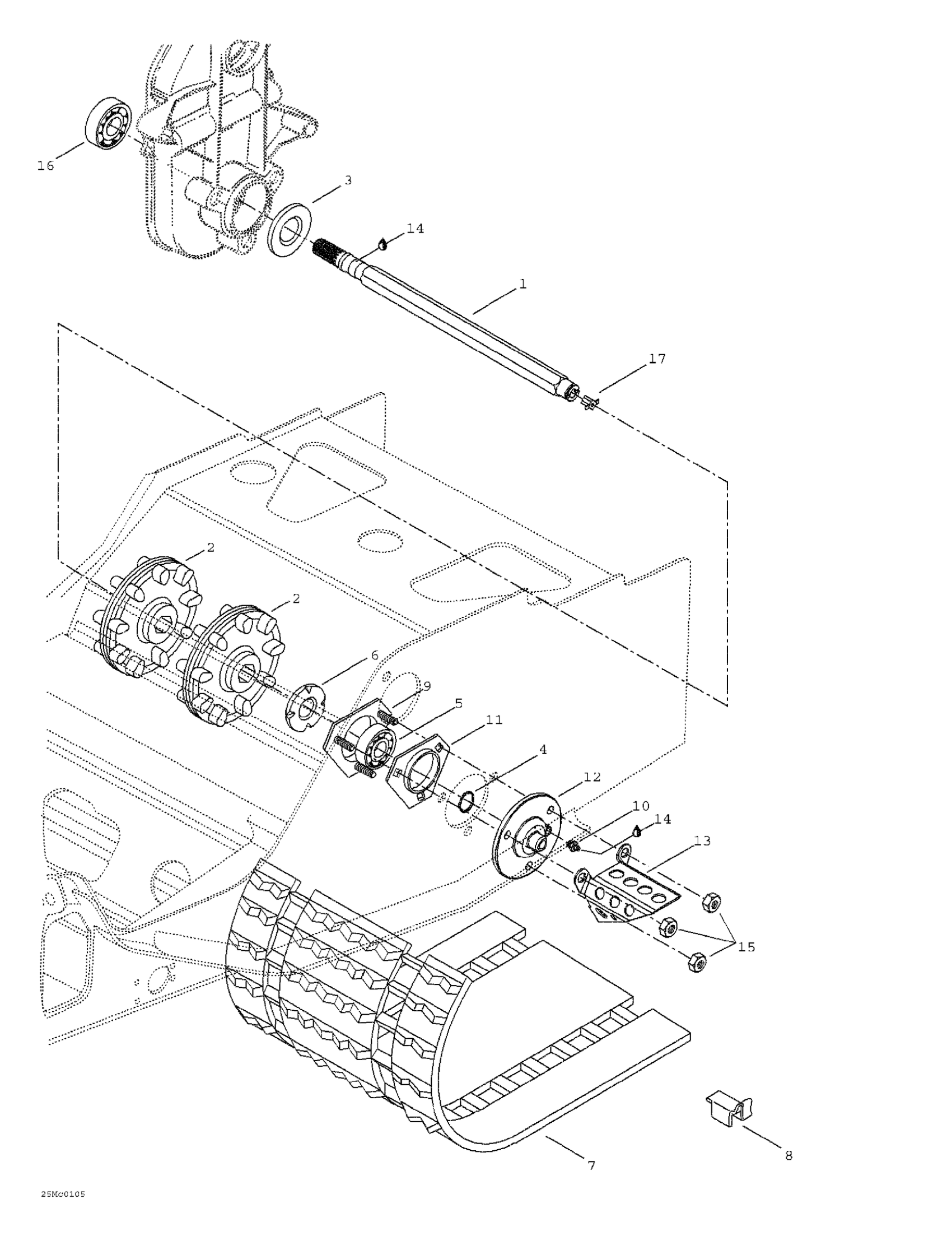

Ski-Doo Formula Deluxe 500 F, 2001 05- Drive Axle And Track Diagram

#

Description
Price

1

Drive Axle

504151714

Unavailable

2

Sprocket (9 Teeth)

414882600

Unavailable

3

Seal Oil Ass'y

504152076

$27.99

4

CIRCLIP - Call your local BRP dealership

371910200

$2.09

5

Ball Bearing

293350060

$38.49

6

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

7

Track 15" X 121" X 0.88" Ass'y | Includes 8 to 10

504152485

$719.99

8

Track Guide | Track Width 16''

415129528

$3.29

9

BEARING HOUSING - Call your local BRP dealership

504151860

Unavailable

10

Grease Fitting

408200700

$3.49

11

FLANGE - Call your local BRP dealership

501025000

Unavailable

12

Flange, Speedo Drive Insert

504151836

Unavailable

13

CABLE PROTECTOR - Call your local BRP dealership

517290100

Unavailable

14

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

Ball Bearing

293350115

$12.11

17

SPEEDO DRIVE INSERT - Call your local BRP dealership

572010100

Unavailable
