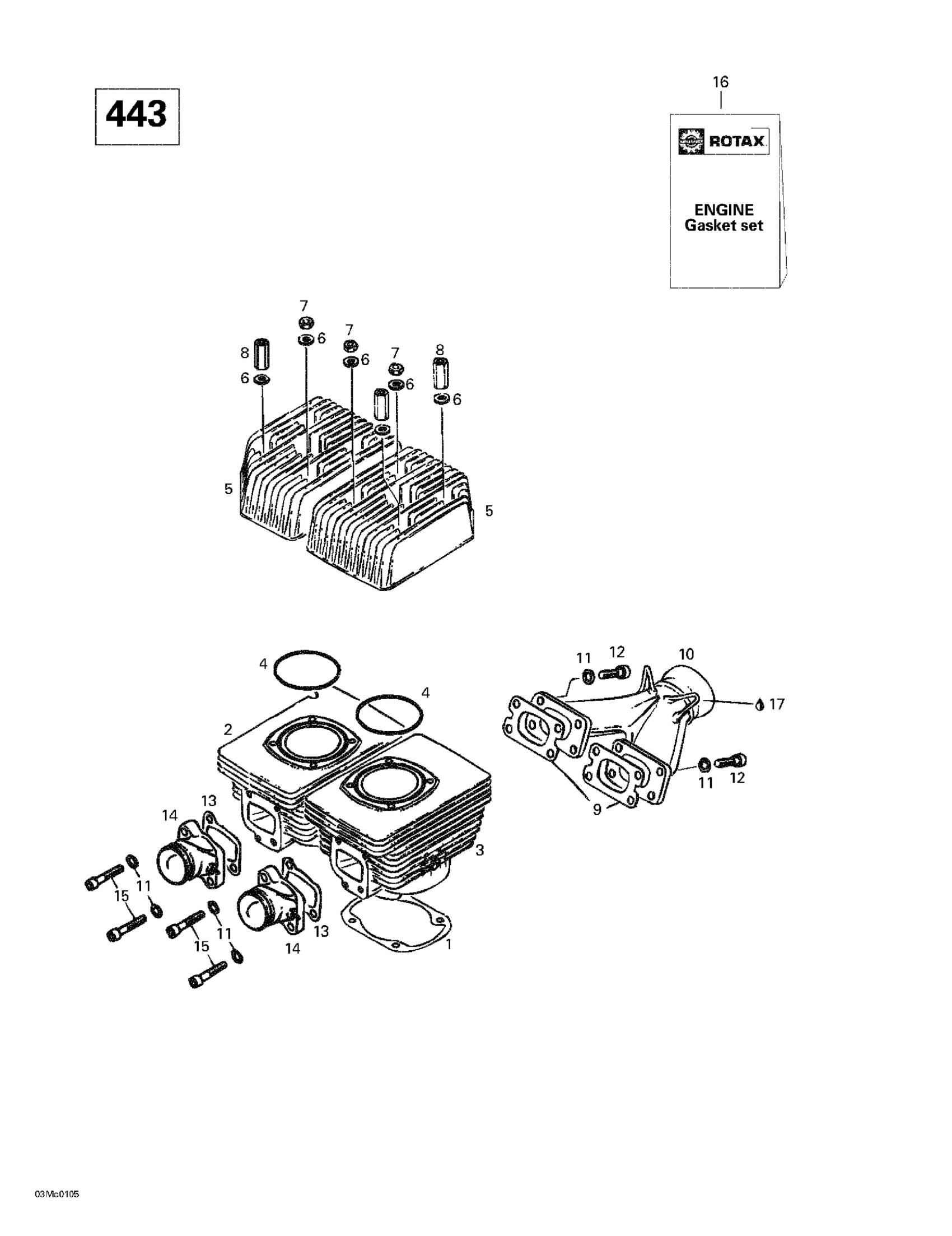

Ski-Doo Formula Deluxe 500 F, 2001 01- Cylinder, Intake Exhaust Manifold (443) Diagram

#

Description
Price

1

GASKET 0.6 - Call your local BRP dealership

420931782

Unavailable

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

GASKET 0.3 - Call your local BRP dealership

420931780

Unavailable

2

PTO Side Cylinder

420923790

Unavailable

3

Mag Side Cylinder

420923795

Unavailable

4

O-Ring

420931380

$12.70

5

Cylinder Head | MX Z 440 F.

420923375

Unavailable

6

Flat Washer 8.4 mm

420250315

$1.15

7

Hex. Nut M8

232081414

$0.72

8

DISTANCE NUT M8 X 51 - Call your local BRP dealership

420842208

Unavailable

9

GASKET - Call your local BRP dealership

420850114

Unavailable

10

Exhaust Manifold Ass'y

420978437

Unavailable

11

Lock Washer 8 mm

234181401

$0.92

12

Socket Head Screw M8 X 30

205083044

$1.15

13

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

14

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

15

Screw M8 X 35

420841591

$2.96

16

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable

17

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
