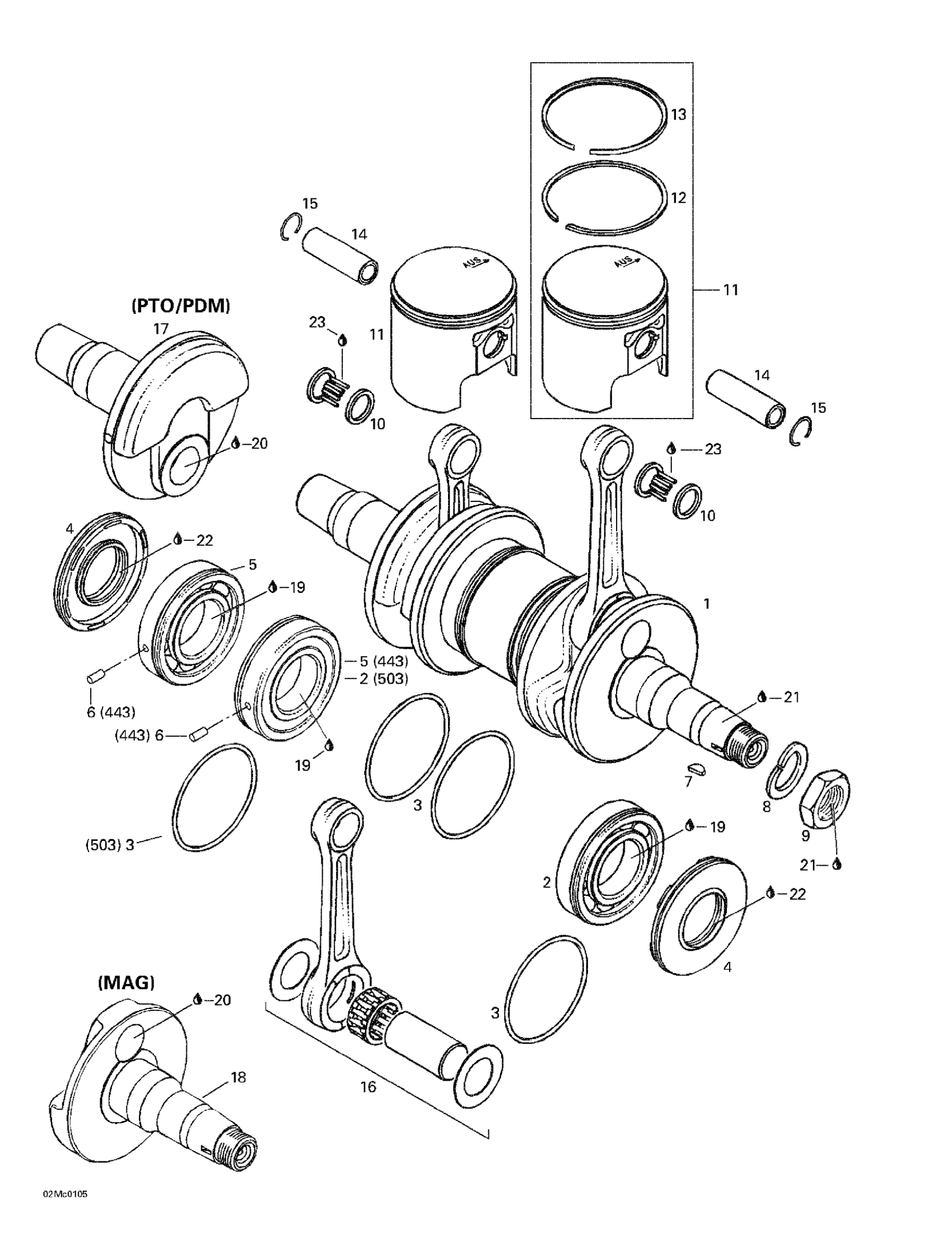

Ski-Doo Formula Deluxe 500 F, 2001 Crankshaft And Pistons Diagram

#

Description
Price

1

Crankshaft Ass'y | Includes 1 - 7. MX Z 440 F.

420888249

Unavailable

1

REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership

421000155

Unavailable

Crankshaft Ass’Y | Includes 1 - 7. Skandic 500F. Skandic 500F (SWT).

420888390

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$41.49

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Oil Seal This part replaces 290831952.

420831952

$18.01

5

BALL BEARING - Call your local BRP dealership

420832574

Unavailable

6

Dowel Pin

420929972

Unavailable

7

Woodruff Key

420246055

$2.43

8

Lock Washer, 22 mm

420945759

$1.90

9

Hex. Nut, M22 X 1.5

420842239

$17.53

10

NEEDLE BEARING - Call your local BRP dealership

420832325

Unavailable

Needle Bearing

420832320

$30.49

11

PISTON - Call your local BRP dealership | Includes 11 to 13

420887485

Unavailable

Piston 71.91, Std | 22 to 24 This part replaces 420888175.

420890070

$169.99

PISTON - Call your local BRP dealership | Includes 11 to 13

420887486

Unavailable

PISTON - Call your local BRP dealership | Includes 11 to 13

420887487

Unavailable

Piston 72.16, 1st Oversize This part replaces 420888176.

420890071

$169.99

Piston 72.41, 2nd Oversize This part replaces 420888177.

420890072

$154.49

12

RING R 67.5 - Call your local BRP dealership

420915960

Unavailable

RING R 67.75 - Call your local BRP dealership

420915961

Unavailable

RING R 68 - Call your local BRP dealership

420915962

Unavailable

RECTANGULAR RING 72 MM, STD - Call your local BRP dealership

420915850

Unavailable

RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership

420915851

Unavailable

RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership

420915852

Unavailable

13

RING L 67.5 - Call your local BRP dealership

420915845

Unavailable

RING L 67.75 - Call your local BRP dealership

420915846

Unavailable

RING L 68.0 - Call your local BRP dealership

420915847

Unavailable

SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership

420815200

Unavailable

SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership

420815201

Unavailable

SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership

420815202

Unavailable

14

PISTON PIN - Call your local BRP dealership

420916136

Unavailable

GUDGEON PIN - Call your local BRP dealership

420916186

Unavailable

15

Piston Circlip

420945735

$4.46

16

Rod repair kit

420996334

Unavailable

Crankshaft Repair Kit | Skandic 500F. Skandic 500F (SWT).

420994564

Unavailable

17

PTO Side Crankshaft

420818204

Unavailable

CRANKSHAFT HALF PTO - Call your local BRP dealership

420818244

Unavailable

18

MAG SIDE HALF-CRANK - Call your local BRP dealership

420819010

Unavailable

CRANKSHAFT HALF MAG - Call your local BRP dealership

420819020

Unavailable

19

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

20

Sealant Loctite 648

219703000

$45.99

21

Loctite 243, 10 ml

293800060

$21.49

22

Dow Corning 111, 150 g

413707000

$59.99

23

OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.

779119

$12.99
