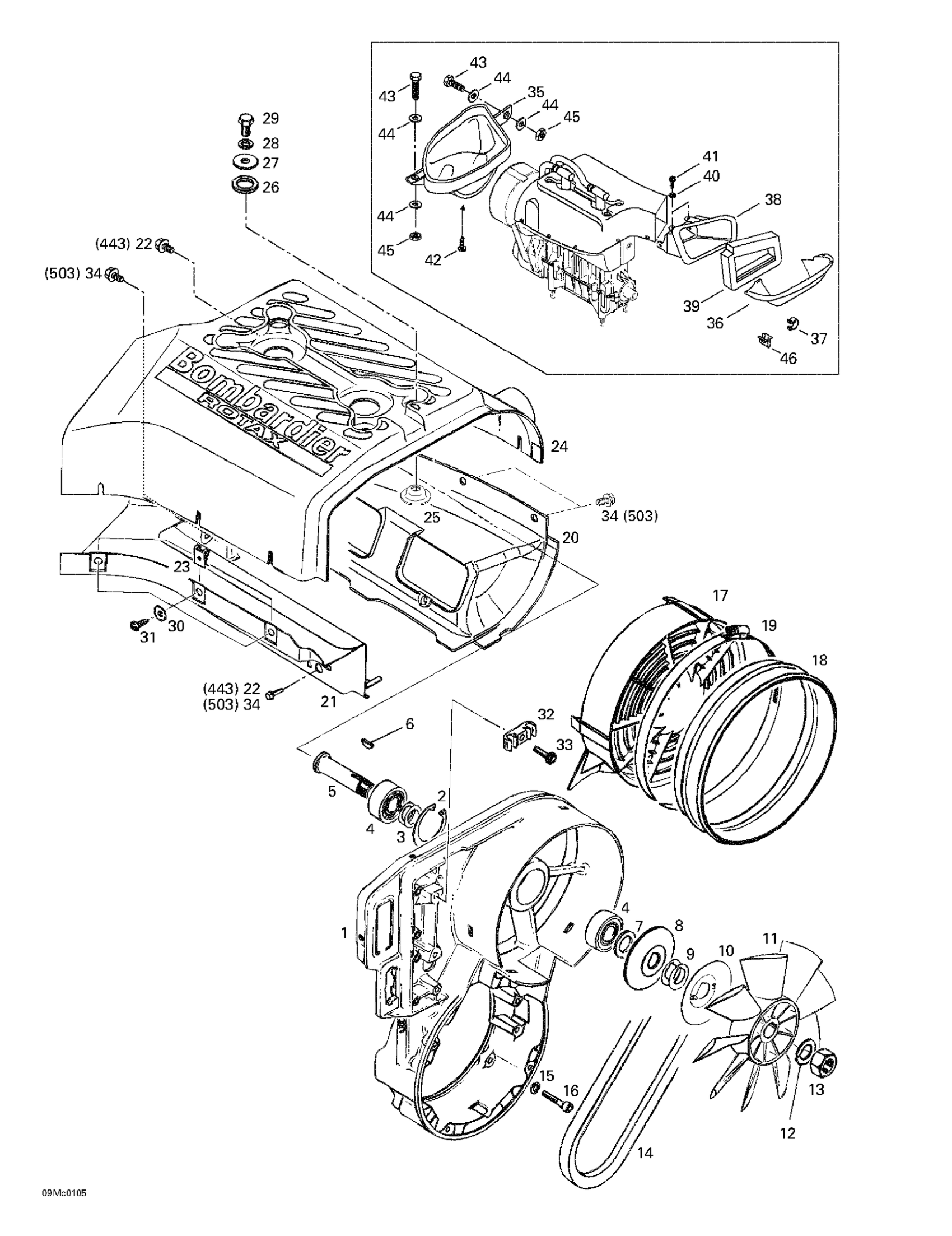

Ski-Doo Formula Deluxe 500 F, 2001 01- Cooling System And Fan Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

$476.49

2

Lock Ring

420945880

$4.44

3

Shim

420244585

$1.90

4

Ball Bearing

420832161

$35.99

5

Fan Axle This part replaces 420937940.

420937941

$14.28

6

Woodruff Key

420246015

$3.17

7

Spacer Bushing

420827650

$13.16

8

Flange

420980496

$14.28

9

Shim 0.5 mm

420827080

$2.11

Shim 0.2 mm

420827082

$3.17

10

Protection Washer

420980523

$13.16

11

FAN - Call your local BRP dealership

420866292

$98.99

12

Lock Washer

420945756

$3.17

13

Nut M16 This part replaces 420942285.

420942289

$10.33

14

V-Belt

414630800

$24.99

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

$1.69

17

FAN COVER - Call your local BRP dealership

420975695

Unavailable

18

Rubber Adaptor | MX Z 440 F.

570068200

Unavailable

19

Tridon Gear Clamp | MX Z 440 F.

408803700

Unavailable

20

CYLINDER COWL - Call your local BRP dealership | 380 F.

420810764

Unavailable

Lower Cowling | 550 F.

420811392

$190.49

21

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810792

Unavailable

Cylinder Cowl (Intake Side) | MX Z 500 F. Formula DLX 500 F.

420811395

Unavailable

22

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable

23

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

24

CYLINDER COWL - Call your local BRP dealership | MX Z 440 F.

420810776

Unavailable

Cylinder Cowl | MX Z 500 F. Formula DLX 500 F.

420810603

Unavailable

25

Cup Washer

420827817

$14.28

26

Rubber Washer

420960865

$2.11

27

Washer This part replaces 420227935.

420227936

$3.38

28

Washer-Lock Din.128

420945832

$1.15

29

Hex. Screw M8 x 16

207181644

$1.15

30

FLAT WASHER - Call your local BRP dealership

420926180

Unavailable

31

Tapping Screw M4.8 X 16

417300006

$0.72

32

CLAMP - Call your local BRP dealership

420860940

Unavailable

33

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$5.09

34

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

35

Inlet Duct

572097800

Unavailable

36

Air Deflector

509000058

Unavailable

37

Clip

414979100

Unavailable

38

Outlet Duct

572083900

Unavailable

39

Seal

415036500

Unavailable

40

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

41

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

42

Tapping Screw

732601292

Unavailable

43

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

44

Washer

517124300

$0.19

45

Elastic Stop Nut M5

232551414

$0.87

46

Edge Clip

517302785

$0.88
