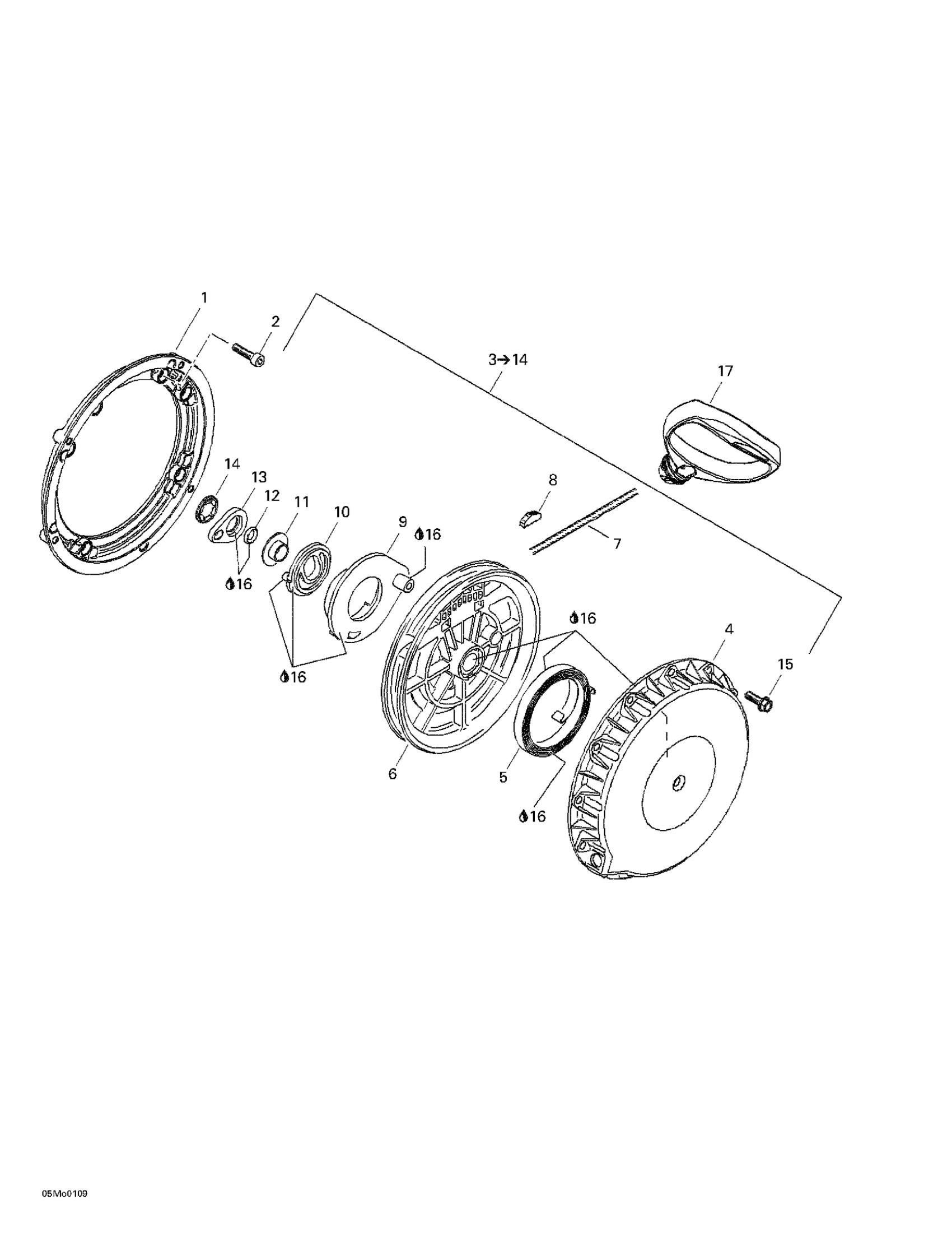

Ski-Doo Formula Deluxe 500/600/700, 2001 Rewind Starter Diagram

Description

Price

Flange Connector

420810868

$88.99

Socket Head Screw M6 x 16

420241237

$2.22

Rewind Starter Ass'y | Includes 3a to 12 This part replaces 420892619.

420892614

$174.49

Starter Housing

420910256

$94.99

Rewind Spring

420939115

$30.49

Rope Sheave

420852285

Unavailable

Was 412500100 Rope-Starter

219704403

$158.99

Key Clamp

420852070

$4.23

Pawl

420852633

$33.99

PAWL LOCK - Call your local BRP dealership

420852305

Unavailable

Stage Sleeve

420847926

$16.33

O-Ring

420250400

$5.39

Lock Ring

420852520

$9.27

Locking Element

420845560

$2.11

Torx Flange Screw M6 X 20

420441386

$2.11

Molykote PG 54, 10 g

420899763

$21.99

Starter Grip

572084400

$14.83
