Description

Price

1

Handle Ass'y

512059348

$93.99

2

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

3

Flange Screw

732601143

$4.12

4

Socket Set Screw M8 X 10

414440800

$4.12

5

Kill Switch

515175410

Unavailable

6

Switch Cover

572100901

$14.83

7

Throttle Cable | Formula Deluxe 500.

512059111

Unavailable

8

Flat Washer 8 mm, Nylon

234081100

$1.39

9

Circlip

414753500

$0.71

10

Circlip

414274500

$0.90

11

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

12

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

512059203

Unavailable

13

Lock Washer, Interior Teeth

394103300

Unavailable

14

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

15

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

16

Fuel Tank

513032987

Unavailable

17

Fuel Tank Cap | Sport / Sport GT

513033020

$37.99

18

Grommet

513032908

$10.49

19

Male Connector

414814100

$2.22

20

Was 415080100 Fuel Line Primer 3,2mm

219704409

$79.49

21

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

22

SPRING - Call your local BRP dealership

414818200

Unavailable

23

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$12.49

24

Hose

415005700

$11.58

25

Norma Spring Clamp

513033010

$9.69

26

Male Connector

414872700

$1.90

27

Grommet | Europe

707800347

$10.49

28

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

513032979

Unavailable

29

Formed Hose

513032903

$30.99

30

CLIP - Call your local BRP dealership

415018200

Unavailable

31

Pop Rivet 3/16"

390406500

$0.88

32

PUMP-FUEL - Call your local BRP dealership | Formula Deluxe 500. This part replaces 403901803.

403901807

Unavailable

33

HEX. SCREW M6 X 12 - Call your local BRP dealership

210361280

Unavailable

34

Hose

219704549

$50.99

35

Spring Clamp

414415200

$0.88

36

Tube

415117800

Unavailable

37

Spring Clamp

414420700

$0.72

38

Flat Washer 8 mm

234082410

$1.47

39

Hex. Elastic Stop Nut M8

232581414

$0.56

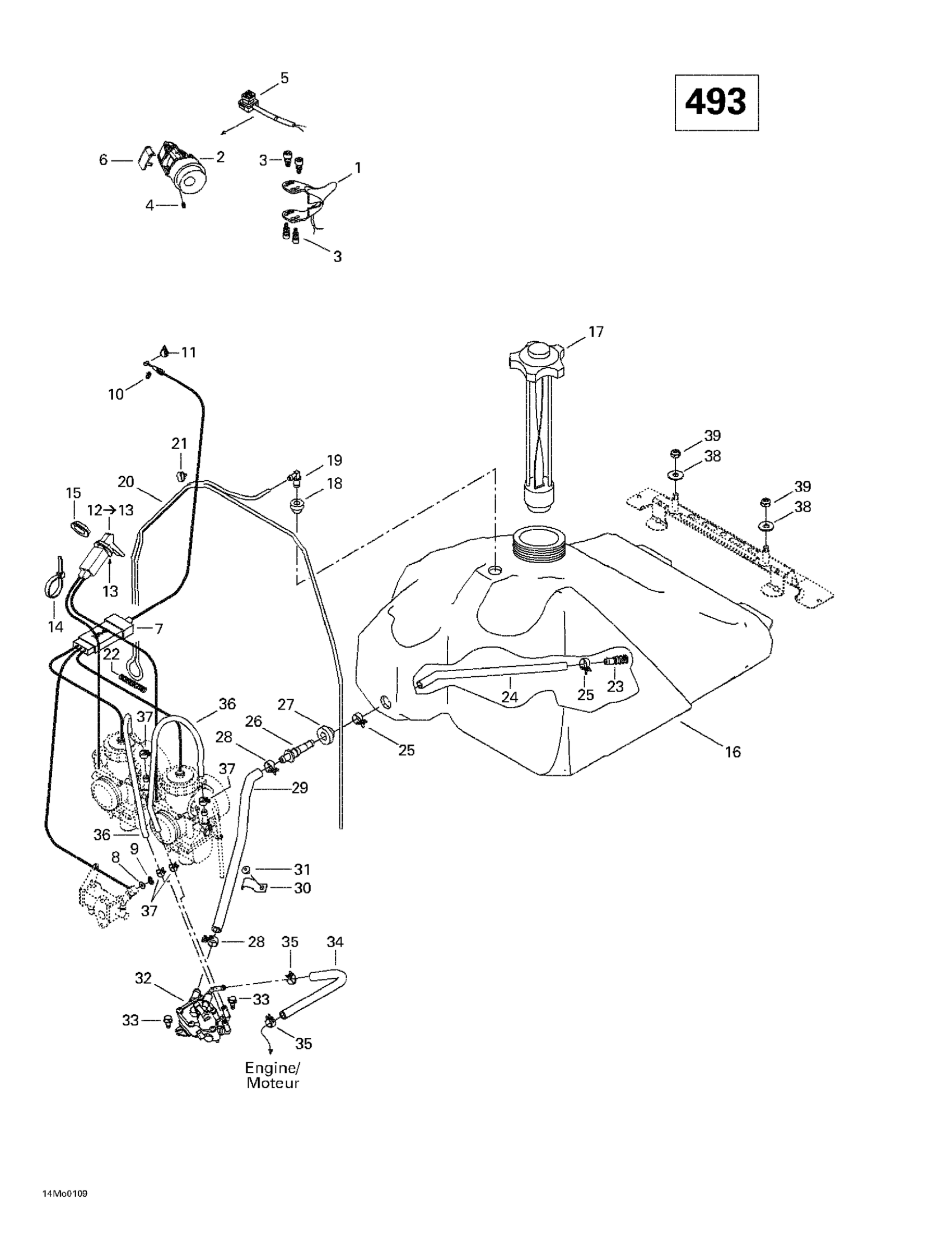

Ski-Doo Formula Deluxe 500/600/700, 2001 02- Fuel System (493) Diagram

Handle Ass'y

THROTTLE HOUSING - Call your local BRP dealership

Flange Screw

Socket Set Screw M8 X 10

Kill Switch

Switch Cover

Throttle Cable | Formula Deluxe 500.

Flat Washer 8 mm, Nylon

Circlip

Circlip

Was 293550004 Dielectric Grease, 150 g

Choke Cable | Includes 12 - 13. Formula Deluxe 500.

Lock Washer, Interior Teeth

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

PLASTIC NUT - Call your local BRP dealership

Fuel Tank

Fuel Tank Cap | Sport / Sport GT

Grommet

Male Connector

Was 415080100 Fuel Line Primer 3,2mm

TUBE CLAMP - Call your local BRP dealership

SPRING - Call your local BRP dealership

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

Hose

Norma Spring Clamp

Male Connector

Grommet | Europe

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

Formed Hose

CLIP - Call your local BRP dealership

Pop Rivet 3/16"

PUMP-FUEL - Call your local BRP dealership | Formula Deluxe 500. This part replaces 403901803.

HEX. SCREW M6 X 12 - Call your local BRP dealership

Hose

Spring Clamp

Tube

Spring Clamp

Flat Washer 8 mm

Hex. Elastic Stop Nut M8
