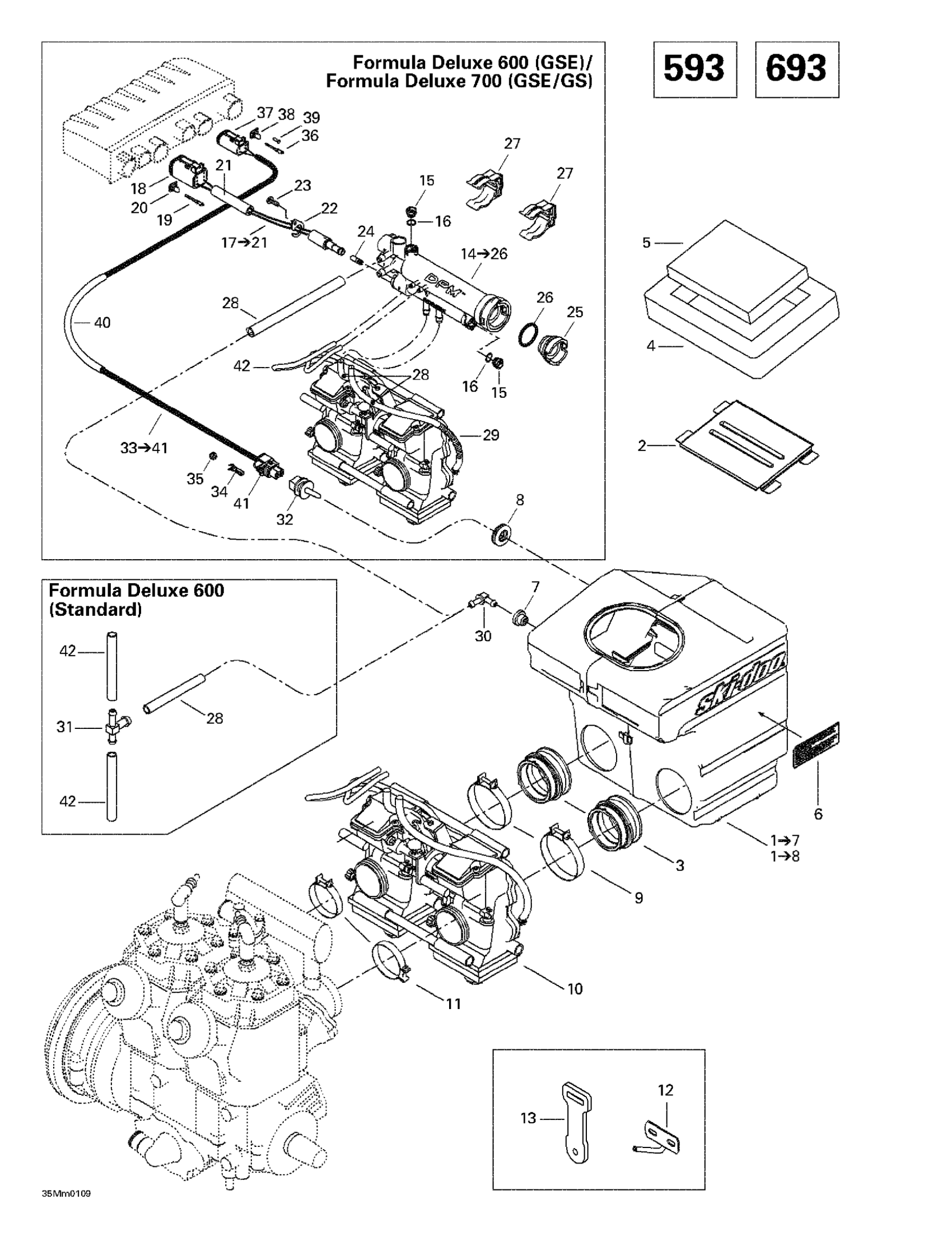

Ski-Doo Formula Deluxe 500/600/700, 2001 02- Air Intake System (593, 693) Diagram

#

Description
Price

1

Air Intake Ass'y (Standard) | Includes 1 - 7. Formula Deluxe 600.

508000139

Unavailable

1

Air Intake Ass'y (GSE) | Includes 1 - 8. Formula Deluxe 600.

508000140

Unavailable

1

Air Intake Ass'y (GSE/GS) | Includes 1 - 8. Formula Deluxe 700.

508000169

Unavailable

2

INTAKE GRILL - Call your local BRP dealership

508000004

Unavailable

3

Air Intake Adaptor, 40 mm

508000092

Unavailable

4

Lower Foam

508000099

Unavailable

5

Air Filter

508000154

$23.49

6

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516001191.

516002715

Unavailable

7

Grommet

513032908

$10.49

8

GROMMET - Call your local BRP dealership

570065500

Unavailable

9

Gemi Clamp

508000346

$10.33

10

CARBURETOR KIT TM 40 B-112 - Call your local BRP dealership | Formula Deluxe 600.

403138670

Unavailable

CARBURETOR KIT TM 40 B-115 - Call your local BRP dealership | Formula Deluxe 700.

403138671

Unavailable

11

Gemi Clamp

512059835

$11.60

12

Carburetor Bracket | Formula Deluxe 600. Formula Deluxe 700.

512059369

Unavailable

13

CARBURETOR LATCH - Call your local BRP dealership

512059372

Unavailable

14

Pressure Manifold Ass'y (GSE) | Includes 14 - 26. Formula Deluxe 600.

512059342

Unavailable

14

Pressure Manifold Ass'y (GSE/GS) | Includes 14 - 26. Formula Deluxe 700.

512059408

Unavailable

15

Cap | Grand Touring 600. Grand Touring 700.

512058921

Unavailable

16

O-Ring | Grand Touring 600. Grand Touring 700.

512058925

Unavailable

17

Pressure Manifold Harness | Includes 4 - 8.

515175271

Unavailable

18

FEMALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

409015400

Unavailable

19

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

20

FEMALE LOCK, 6 CIRCUITS - Call your local BRP dealership

409014900

Unavailable

21

Tubing 10 MM 1000MM Long

219704407

$2.79

22

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

23

Screw K40 X 10

241140060

$1.48

24

STARTER JET - Call your local BRP dealership

404161825

Unavailable

25

Cap | Grand Touring 600. Grand Touring 700.

512058949

Unavailable

26

O-Ring | Grand Touring 600. Grand Touring 700.

512058950

Unavailable

27

SUPPORT - Call your local BRP dealership

512058919

Unavailable

28

Polyurethane Hose 10000Mm Long

219704410

$56.99

29

Was 409901700 Tubing (9 mm)

219704399

$84.99

30

Elbow Male Connector

414580600

$4.23

31

T-Fitting

572045500

$7.51

32

AIR TEMPERATURE SENSOR - Call your local BRP dealership

270600000

Unavailable

33

Temperature Harness | Includes 33 - 41. Formula Deluxe 600. Formula Deluxe 700.

515175589

Unavailable

34

Female Terminal

278000998

$4.39

35

Wire Seal

278000999

$3.19

36

FEMALE TERMINAL - Call your local BRP dealership

409015100

Unavailable

37

Female Terminal Housing (4 circuits)

515175245

Unavailable

38

Female Lock (4 circuits)

515175246

Unavailable

39

PLUG - Call your local BRP dealership

515175303

Unavailable

40

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

41

FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

515175588

Unavailable

42

HOSE - Call your local BRP dealership

404161904

Unavailable
