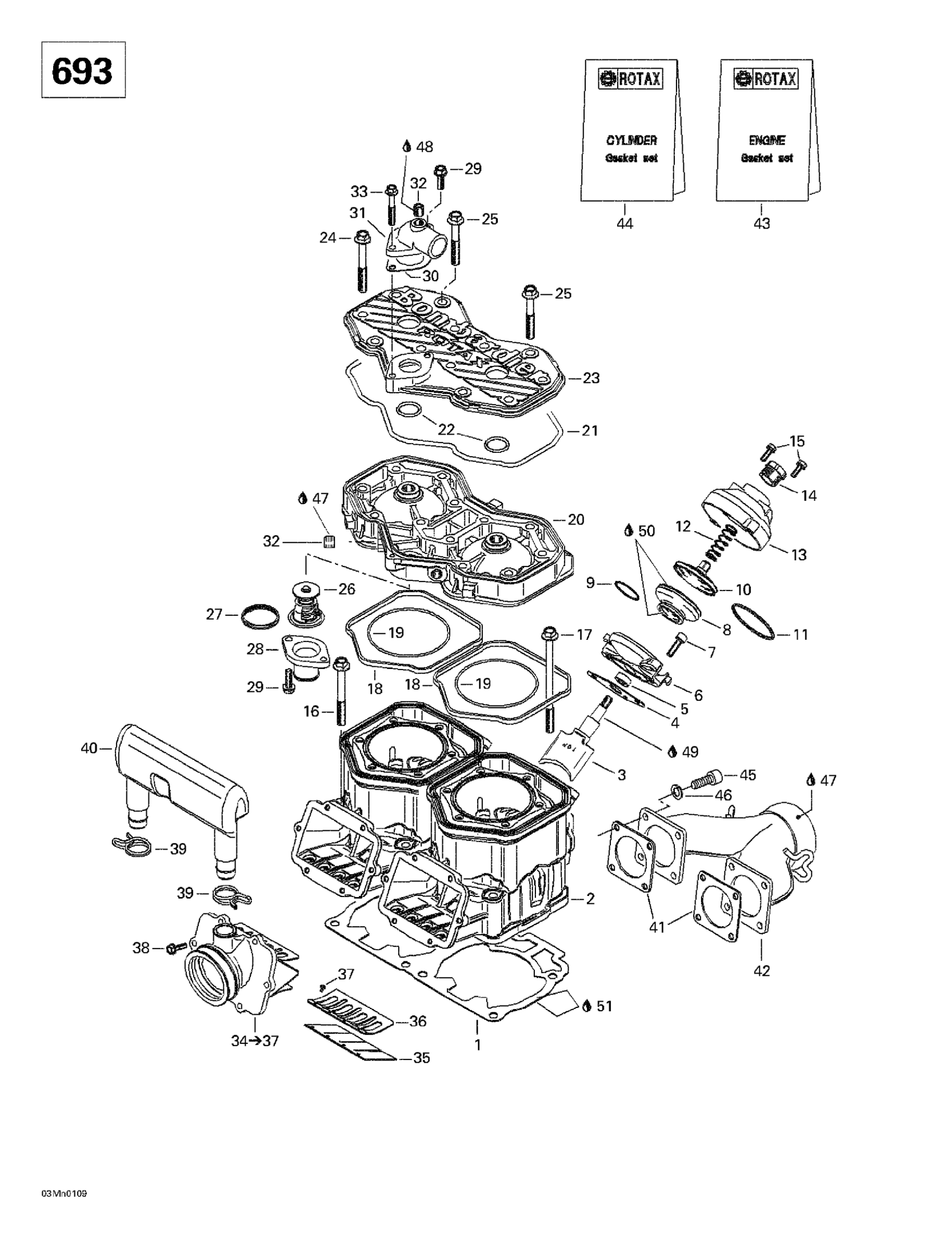

Ski-Doo Formula Deluxe 500/600/700, 2001 Cylinder, Exhaust Manifold, Reed Valve (693) Diagram

#

Description
Price

1

Double Gasket 0.8 mm

420431163

$22.36

Gasket 0.7 mm

420431162

$22.36

Gasket 0.6 mm

420431161

$22.36

Gasket 0.5 mm

420431160

$16.39

2

Cylinder with Sleeve (Nicasil) | Formula Deluxe 700.

420923694

Unavailable

3

EXHAUST VALVE - Call your local BRP dealership

420854332

Unavailable

4

Gasket

420250239

$6.42

5

Oil Seal | Included in gasket kit

420950732

$8.09

6

Valve Housing

420854266

$91.01

7

Socket Head Screw M6 X 20

205062044

$1.22

8

Exhaust Bellows

420260723

$40.27

9

Hose Spring This part replaces 420838253.

420838255

$7.01

10

Exhaust Valve This part replaces 290253257.

420854449

$34.30

11

Hose Spring This part replaces 420239048.

420939281

$6.88

12

Spring This part replaces 420239944.

420239954

$7.09

13

Valve Cover

420911552

$36.54

14

Adjuster Screw

420241221

$12.15

15

Hex. Tapping Screw M5 X 20

420841555

$1.63

16

Hex. Collar Screw

420640524

$11.18

17

Hex. Collar Screw

420640534

$13.18

18

Rubber Ring

420931590

$5.52

19

O-RING - Call your local BRP dealership

420931840

$11.75

20

CYLINDER HEAD (SILVER) - Call your local BRP dealership | Grand Touring 700.

420923457

Unavailable

21

O-Ring This part replaces 290950320.

420950320

$13.18

22

O-Ring

420430782

$5.06

23

CYLINDER HEAD COVER - Call your local BRP dealership

420923465

Unavailable

24

Hex. Collar Screw M8 X 65 This part replaces 420841306.

420841307

$8.09

25

Hex. Screw M8 X 56.5

420941627

$8.09

26

Thermostat This part replaces 414834100.

420922519

$57.43

27

SEALING RING - Call your local BRP dealership

420931270

Unavailable

28

BENT OUTLET SOCKET - Call your local BRP dealership

420922025

Unavailable

29

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

$4.51

30

Gasket

420850338

$9.97

31

BENT OUTLET SOCKET - Call your local BRP dealership

420922062

Unavailable

32

PLUG SCREW - Call your local BRP dealership

420240480

Unavailable

33

HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership

420941451

Unavailable

34

Carburetor Socket | INCLUDES ITEMS 34 TO 37

420867873

$241.01

35

Reed Pedal

420924680

$36.54

36

Reed Pedal Stop

420924695

$13.18

37

Phillips Screw M3 X 5

420941215

$1.63

38

Taptite Screw M5 X 16

420941928

Unavailable

39

CLAMP - Call your local BRP dealership

420851440

Unavailable

40

Intake Resonator

420867817

Unavailable

41

Gasket

420850552

$7.69

42

Exhaust Manifold | Grand Touring 700.

420973591

Unavailable

43

Engine Gasket Set | Formula Deluxe 700.

420888602

Unavailable

44

Cylinder Gasket Set | Formula Deluxe 700.

420888607

Unavailable

45

Socket Head Screw M6 X 20

205062044

$1.22

46

Lock Washer M6, Black

234161471

$0.51

47

Sealant, Loctite, 80 ml | DS 650

293800090

$23.85

48

Loctite 243, 10 ml

293800060

$21.49

49

Molykote G-N, 50 g

420297433

$26.09

50

Dow Corning 111, 150 g

413707000

$59.99

51

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48
