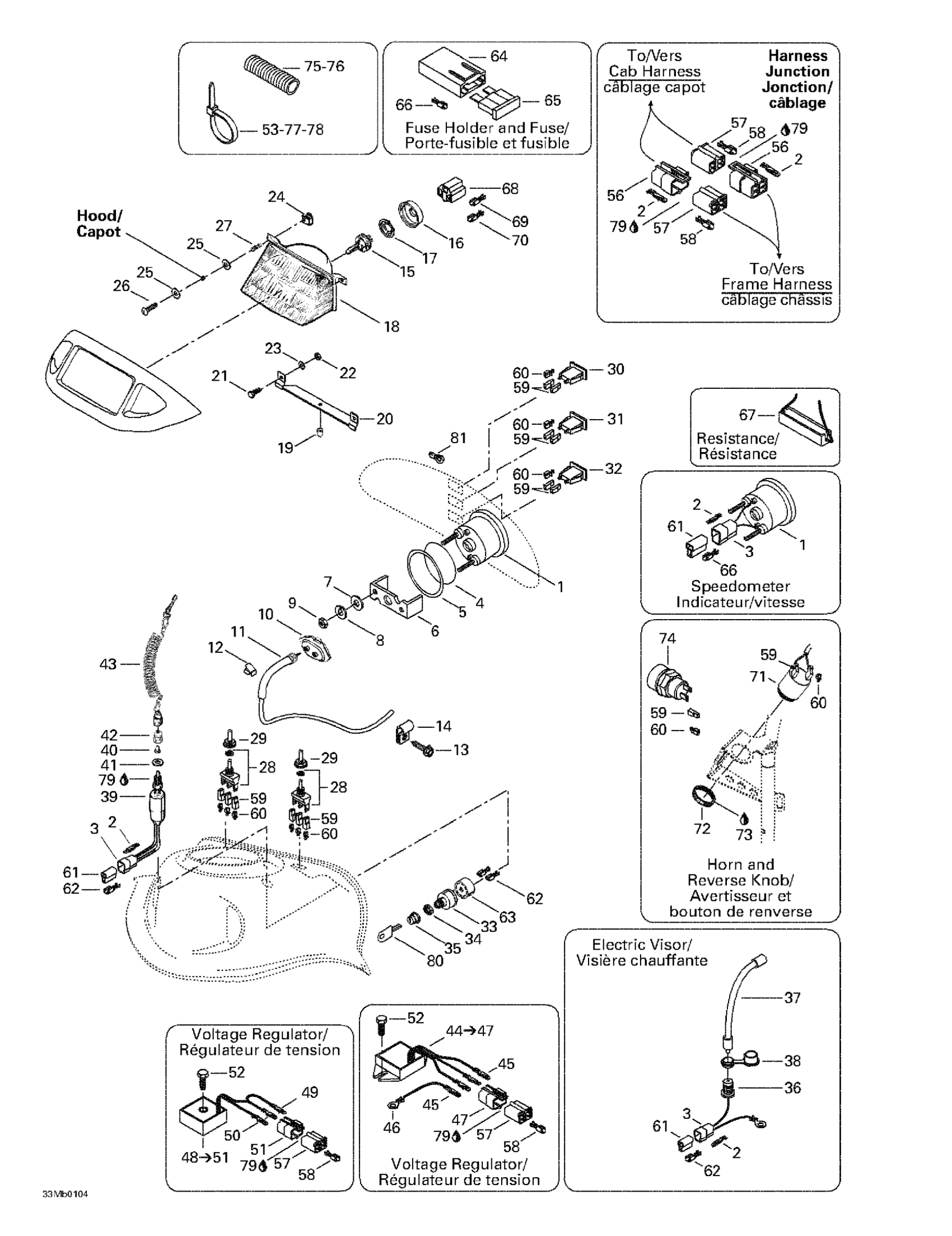

Ski-Doo Formula Deluxe 380 F, 2001 10- Electrical System Diagram

#

Description
Price

1

Speedometer, Kmh

515175335

Unavailable

Speedometer, Mph

515175336

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

3

MALE HOUSING - Call your local BRP dealership

409204500

Unavailable

4

O-Ring

414807100

Unavailable

5

Washer

517258500

Unavailable

6

Case Holder

414806500

Unavailable

7

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

8

Lock Washer

414806700

Unavailable

9

Nut

414806900

Unavailable

10

Drive Angle

515175400

Unavailable

11

Speedometer Cable

414761400

Unavailable

12

Clip

414227300

$1.67

13

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

14

Open Clamp

414176000

$1.99

15

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

16

PROTECTOR CAP - Call your local BRP dealership

410607100

Unavailable

17

BULB HOLDER - Call your local BRP dealership

410608300

Unavailable

18

Headlamp | Includes 53 to 56

410609300

Unavailable

19

RUBBER STOPPER - Call your local BRP dealership

410608200

Unavailable

20

Headlamp Support

517218500

Unavailable

21

Hex. Screw M5 X 12

207151244

$0.90

22

Elastic Stop Nut M5

232551414

$0.87

23

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

24

Projector Nut

572078600

Unavailable

25

Flat Washer M5

234051410

$0.53

26

PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership

243244040

Unavailable

27

Spring

517168600

$7.39

28

Switch (Heating Grip) | FREERIDE

410107300

$35.99

29

Switch Cover

515175281

$15.99

30

PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership

515175728

Unavailable

31

PILOT LAMP, HEADLAMP - Call your local BRP dealership | North America

515175726

Unavailable

32

PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership | North America

410113400

Unavailable

33

IGNITION SWITCH - Call your local BRP dealership | Formula Deluxe 380 F.

410111300

Unavailable

IGNITION SWITCH - Call your local BRP dealership | MX Z 380 F.

410111200

Unavailable

34

FACE NUT - Call your local BRP dealership

410112100

Unavailable

35

Switch Boot

570013700

$11.49

36

Visor Plug Harness | Formula Deluxe 380 F.

515175111

Unavailable

37

EXTENSION - Call your local BRP dealership

515175971

Unavailable

38

Cap

572103300

$10.49

39

Brake Switch

515175653

$19.49

40

Plunger Cap

570151100

$9.85

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Switch Nut

515145900

$12.12

43

Cap Ass'y

515178283

$38.99

44

VOLTAGE REGULATOR - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).

515175546

Unavailable

45

Not Available As Spare Part - Friction Washer

Unavailable

46

OPEN BARREL - Call your local BRP dealership

409003200

Unavailable

47

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

48

VOLTAGE REGULATOR - Call your local BRP dealership

515163800

Unavailable

49

Not Available As Spare Part - Friction Washer

Unavailable

50

Not Available As Spare Part - Friction Washer

Unavailable

51

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

52

SCREW-FORMING HEX.HD.FL.GM6174M - Call your local BRP dealership

210263580

Unavailable

Hex. Flange Screw M6 X 16

210261650

$1.67

53

Tie Wrap 368 mm

293750008

$1.04

54

Frame Harness (Not Shown) | Formula Deluxe 380 F.

515175361

Unavailable

Frame Harness (Not Shown) | MX Z 380 F.

515175362

Unavailable

55

Hood Harness (Not Shown) | MX Z 380 F.

515175359

Unavailable

56

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

57

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

58

Female Terminal PACKARD

561503200

Unavailable

59

Female Terminal Housing, 1 Circuit

409010400

$7.62

60

Female Terminal

409010100

$5.61

61

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

62

Female Terminal

561503100

$2.41

63

FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership

572150700

Unavailable

64

Fuse Holder

409004000

$8.09

65

Fuse, 30 Amperes

410917200

$3.28

66

Female Terminal

409003600

Unavailable

67

Resistance

515175241

$17.99

68

FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership

409202700

Unavailable

69

FEMALE TERMINAL - Call your local BRP dealership

515175320

Unavailable

70

FEMALE TERMINAL - Call your local BRP dealership

409011500

Unavailable

71

HORN - Call your local BRP dealership

515176035

Unavailable

72

PLASTIC NUT - Call your local BRP dealership

414805101

Unavailable

73

Silicone Sealant 51388, 300 ml

296000309

$36.99

74

Push Button

415130372

$122.49

75

Was 409901700 Tubing (9 mm)

219704399

$84.99

Was 409901800 Tubing (13 mm)

219704400

$14.49

76

Tubing 10 MM 1000MM Long

219704407

$2.79

77

Tie-Rap 180 mm

414115200

$0.11

78

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

79

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

80

Blank Key

415129350

$26.49

81

INSTRUMENTATION BULB - Call your local BRP dealership

410504200

Unavailable
