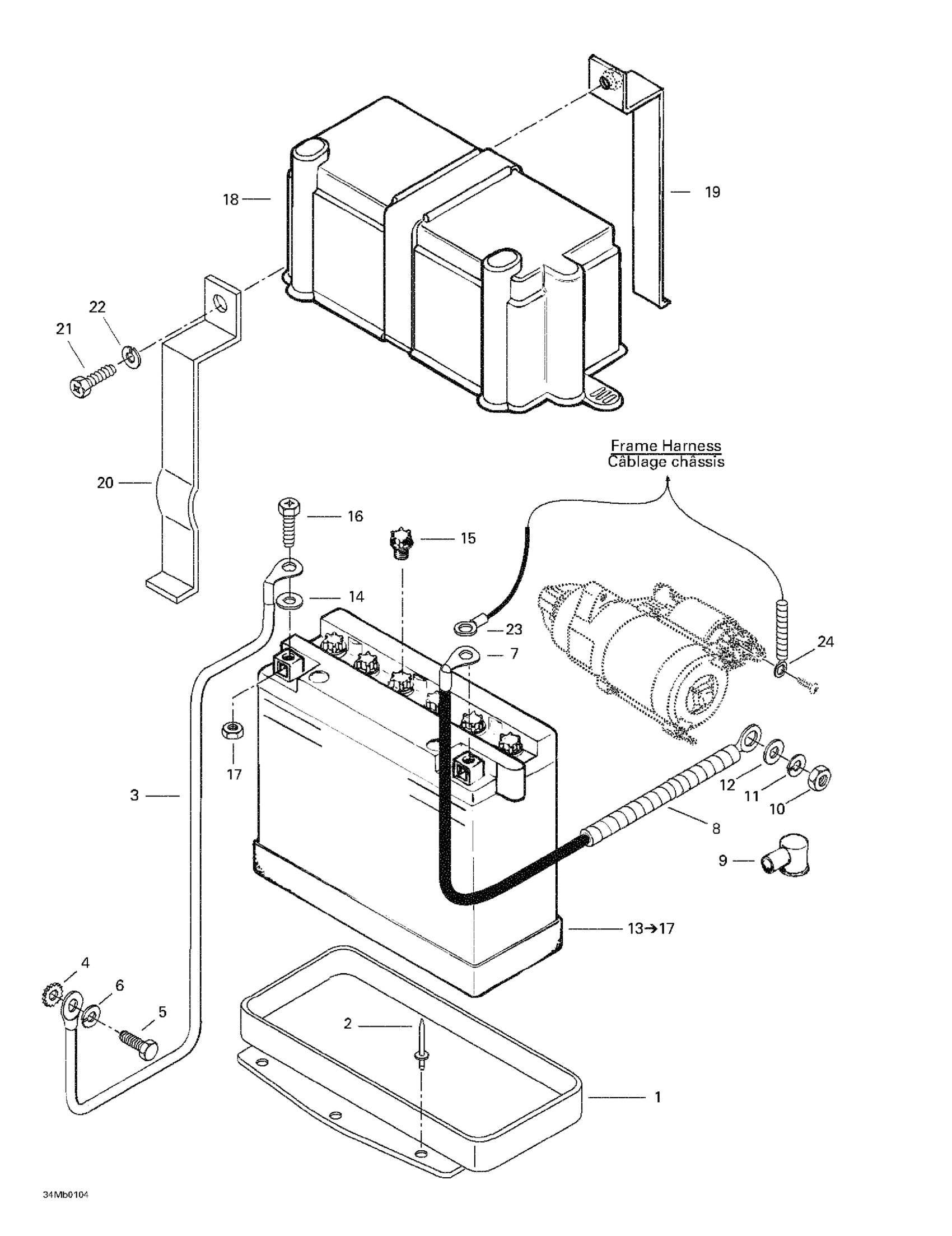

Ski-Doo Formula Deluxe 380 F, 2001 10- Battery Diagram

#

Description
Price

1

Battery Seat | Formula Deluxe 380 F.

517286200

Unavailable

2

Pop Rivet 3/16"

390402200

$0.35

3

Ground Wire | Formula Deluxe 380 F.

515175425

Unavailable

4

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

5

Hex. Screw M6 X 14

207161444

$0.58

6

Lock Washer M6, Black

234161471

$0.53

7

Battery Wire | Formula Deluxe 380 F.

515175488

Unavailable

8

Was 409901700 Tubing (9 mm)

219704399

$84.99

9

Protection Cap

570151000

$21.99

10

Hex. Nut M8

232081414

$0.72

11

Washer-Lock Din.128

420945832

$1.15

12

Flat Washer 8 mm

234081410

$0.83

13

Battery | Includes 4 - 8.

410301100

Unavailable

14

FLAT WASHER - Call your local BRP dealership

391302100

Unavailable

15

Battery Cap

410300800

Unavailable

16

Hex. Screw M6 X 16

207161644

$0.74

17

Hex. Nut M6

232061414

$0.53

18

Battery Cover

570022000

Unavailable

19

Steel Strip | Formula Deluxe 380 F.

517286000

Unavailable

20

Steel Strip | Formula Deluxe 380 F.

517286100

Unavailable

21

Hex. Screw M5 X 20

207152044

$0.90

22

Lock Washer 5 mm | Europe

234151401

$0.55

23

Open Barrel | Formula Deluxe 380 F.

278012600

Unavailable

24

Open Barrel

409012500

Unavailable
