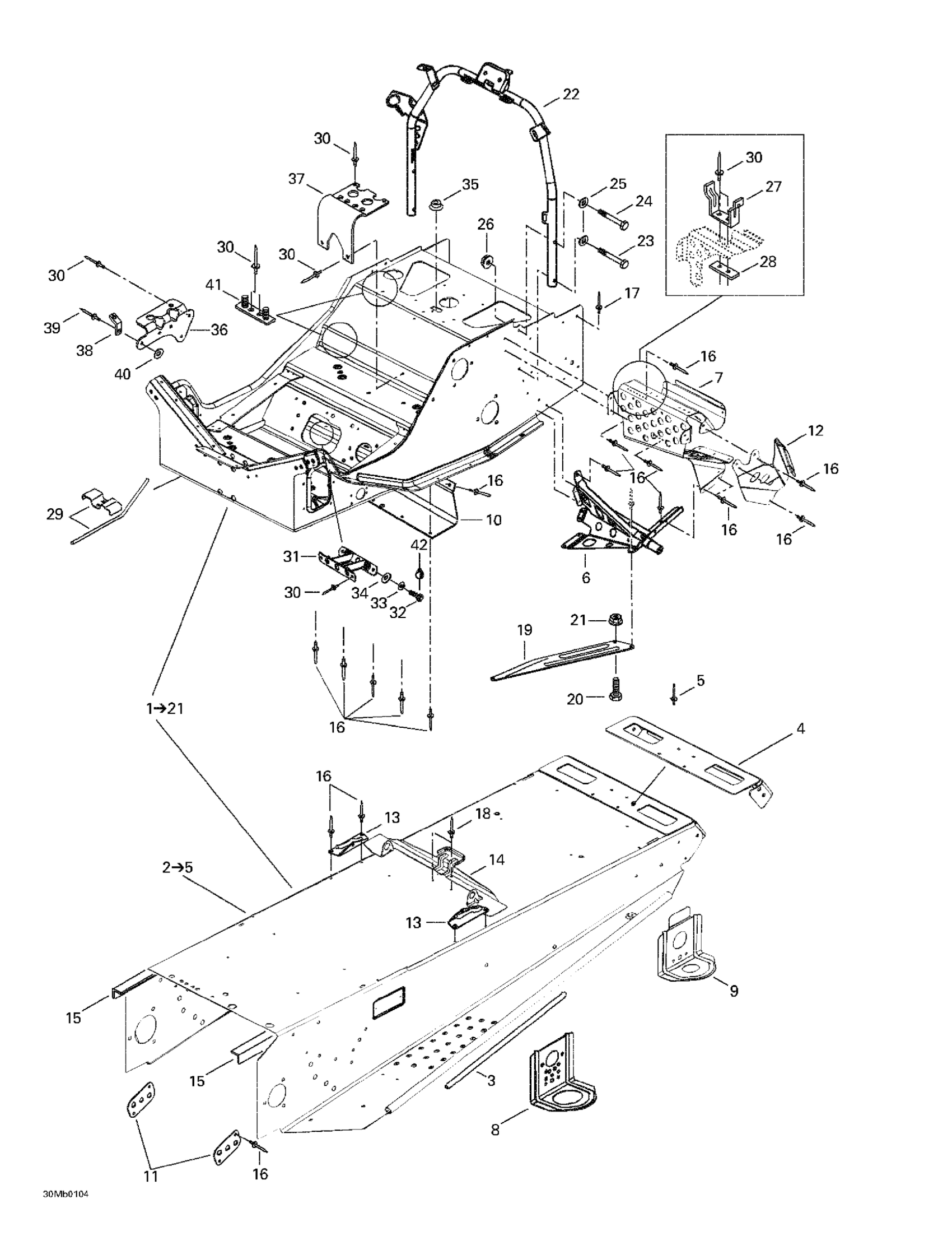

Ski-Doo Formula Deluxe 380 F, 2001 09- Frame And Accessories Diagram

#

Description
Price

1

Frame Ass'y | Includes 1 - 21.

518322490

Unavailable

2

Forming frame | Includes 2 - 5.

518322535

Unavailable

3

FOOTREST REINFORCEMENT - Call your local BRP dealership

518304746

Unavailable

4

Cap-End

518321301

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

RH Footrest Support

518320506

Unavailable

LH SOOTREST SUPPORT - Call your local BRP dealership

518320507

Unavailable

7

RH Front Footrest

518318933

Unavailable

LH Front Footrest

518318934

Unavailable

8

Front Bracket

518321495

Unavailable

9

Rear Bracket

518308704

Unavailable

10

Deflector

518321867

Unavailable

11

REINFORCEMENT PLATE - Call your local BRP dealership

518201321

Unavailable

12

Upper Plate R.H

518308715

Unavailable

Upper Plate L.H

518308714

Unavailable

13

RH Tank Bracket

517266900

Unavailable

LH Tank Bracket

517267000

Unavailable

14

Seat Bracket

518317506

Unavailable

15

LH Tunnel Reinforcement

518316713

Unavailable

RH Tunnel Reinforcement

518316714

Unavailable

16

Pop Rivet 3/16"

390402200

$0.35

17

Pop Rivet 3/16"

390402300

$0.75

18

Pop Rivet 3/16"

390402400

$0.35

19

RH Reinforcement Plate

518321958

Unavailable

LH Reinforcement. Plate

518321959

Unavailable

20

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

21

Hex. Flange Elastic Nut M5

233251414

$1.04

22

Handle Steering Support

518321428

Unavailable

23

Hex. Screw M6 X 40

207064044

$1.48

24

Hex. Flange Screw M6 X 35

207063544

$1.37

25

Flat Washer 6 mm

234061410

$1.36

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

27

Belt Guard Bracket

518202100

$17.49

28

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

29

Guide Rope

517276100

Unavailable

30

Pop Rivet 3/16"

390402200

$0.35

31

Reinf. Plate

518304741

Unavailable

32

Hex. Screw M8 X 20

207182044

$0.74

33

Lock Washer 8 mm

234181401

$0.92

34

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

35

CAP - Call your local BRP dealership

414859400

Unavailable

36

Muffler Support

518316704

Unavailable

37

AIR INTAKE SUPPORT - Call your local BRP dealership

518310400

Unavailable

38

Spring Bracket

514054522

$8.45

39

Pop Rivet 3/16"

390402300

$0.75

40

Flat Washer

517225900

$0.18

41

Support Plate

518315300

Unavailable

42

Loctite 271, 10 ml

293800005

$26.99
