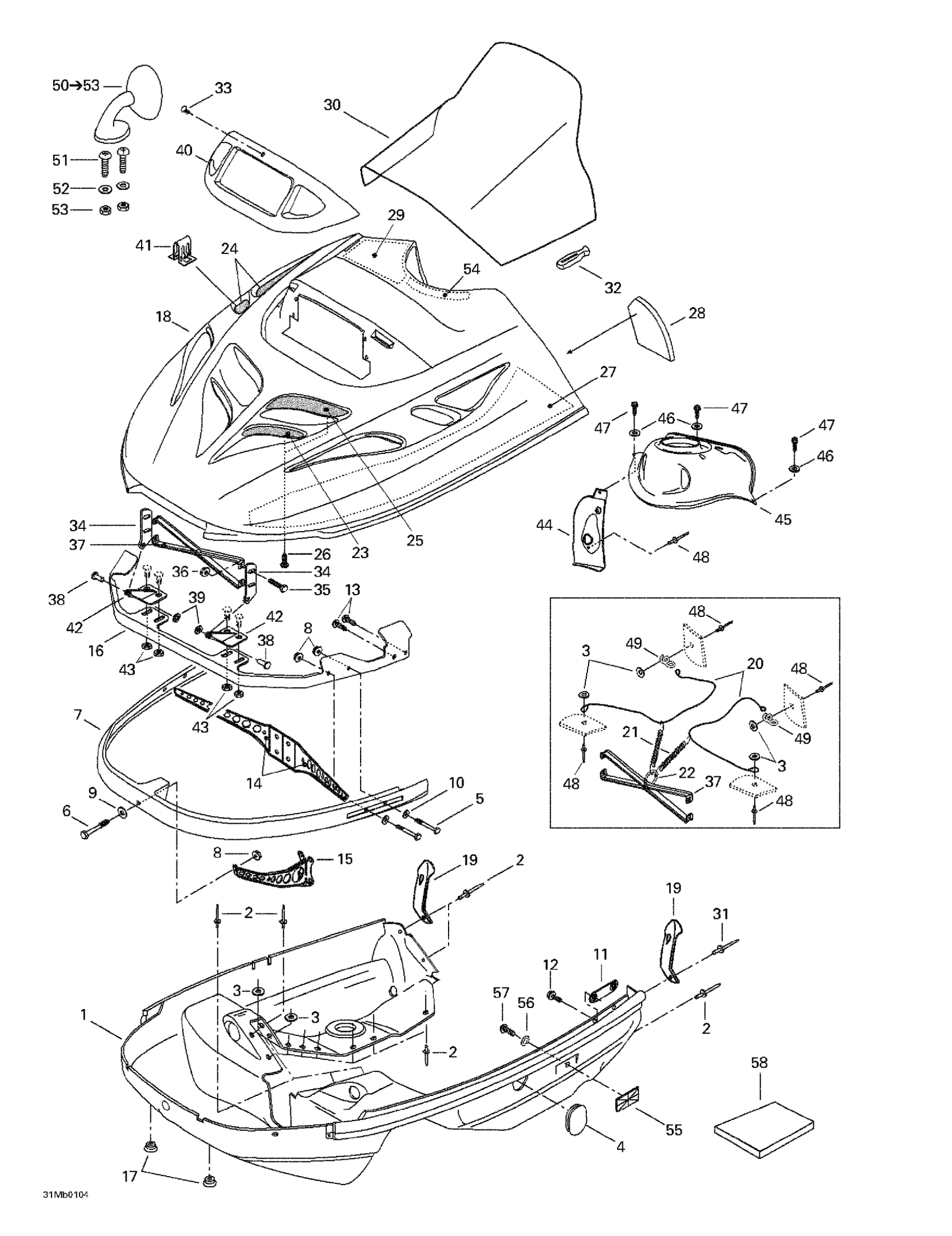

Ski-Doo Formula Deluxe 380 F, 2001 09- Cab, Console Diagram

#

Description
Price

1

Bottom Pan (Black) | Formula Deluxe 380 F.

502006572

Unavailable

Bottom Pan (Yellow) | MX Z 380 F.

502006574

Unavailable

2

Pop Rivet 3/16"

390906800

$0.93

Pop Rivet 3/16"

390906800

$0.93

3

Washer

517124300

$0.19

4

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

Bottom Pan Cap (Yellow) | MX Z 380 F.

570053704

Unavailable

5

Hex. Screw M6 X 30

207063044

$1.26

6

Hex. Screw M6 X 40

207064044

$1.48

7

Front Bumper

517265400

Unavailable

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

9

Flat Washer

224061201

$1.37

10

Flat Washer

224061121

$0.53

11

Side Bracket

517267100

Unavailable

12

Hex. Flange Screw M6 X 16

210261650

$1.67

13

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

14

LH Support

517295000

Unavailable

RH Support

517295100

Unavailable

15

Front Support

517294500

Unavailable

16

Hinge Bracket

517296600

Unavailable

17

CAP - Call your local BRP dealership

572072100

Unavailable

18

Cab (Cloud) | Formula Deluxe 380 F.

517302318

Unavailable

Cab (Yellow) | MX Z 380 F.

517302201

Unavailable

19

Hood Latch

570027100

$13.49

20

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

21

Spring

414763300

Unavailable

22

RING - Call your local BRP dealership

415058300

Unavailable

23

LH Front Grill

517265903

Unavailable

24

Side Grill (Black)

517280200

Unavailable

25

LH Upper Grill

517277102

Unavailable

26

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

27

LH Lower Foam

414883500

Unavailable

RH Lower Foam

415048700

Unavailable

28

R.H Rear Foam

414883800

Unavailable

LH Rear Foam

414883700

Unavailable

29

Upper Foam

414975000

Unavailable

30

High Windshield

517302106

Unavailable

31

Pop Rivet 3/16"

390906800

$0.93

32

Windshield Latch

570023800

$4.49

33

Black, Dart

414644300

$0.98

34

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

35

Hex. Screw M5 X 16 | 4X4

207151644

$0.90

36

Hex. Flange Elastic Nut M5

233251414

$1.04

37

Hood Reinforcement

517278100

Unavailable

38

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

39

Push Nut

389804300

$0.53

40

Lamp Moulding

572079200

Unavailable

41

Edge Clip

517302785

$0.88

42

Welded Lower Hinge

517289900

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

44

Handle Dash | MX Z 380 F.

572052101

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

45

Switch Dash

517302524

Unavailable

46

Washer | DS 650 X

391301600

$0.48

47

Forming Screw M5 x 16

250000676

$1.01

48

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

49

Bracket

517262800

Unavailable

50

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

Unavailable

51

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

52

Washer

517124300

$0.19

53

Elastic Stop Nut M4

232541414

$0.58

54

Foam

415050900

Unavailable

55

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

56

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership | Outlander T3

234451418

Unavailable

57

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

58

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable
