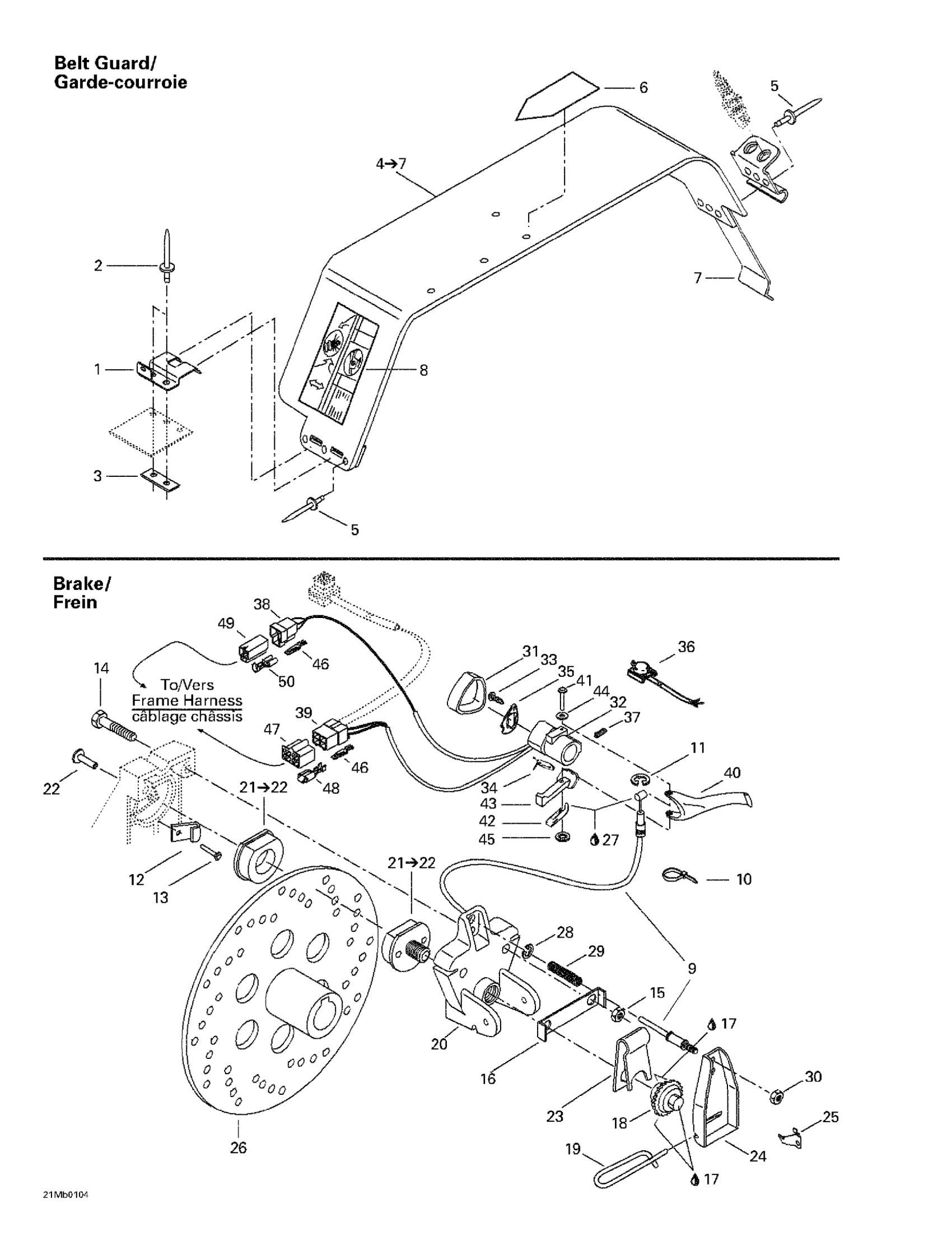

Ski-Doo Formula Deluxe 380 F, 2001 06- Brake And Belt Guard Diagram

#

Description
Price

1

Pulley Guard Bracket

518314200

Unavailable

2

Pop Rivet 3/16"

390402200

$0.35

3

REINFORCEMENT - Call your local BRP dealership

518207500

Unavailable

4

Belt Guard Ass'y | Includes 4 - 7.

417300012

Unavailable

5

Pop Rivet 3/16"

390402200

$0.35

6

WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership

516002670

Unavailable

7

Tool Box Spring

414941800

Unavailable

8

Suspension Adjustment Decal

418001701

Unavailable

9

BRAKE CABLE - Call your local BRP dealership

414922500

Unavailable

10

Tie-Rap 180 mm

414115200

$0.11

Tie-Rap 180 mm

414115200

$0.11

11

Circlip

414274500

$0.90

12

WEAR INDICATOR - Call your local BRP dealership

507022600

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Hex. Screw M8 X 55

207085544

$1.68

15

Hex. Elastic Stop Nut M8

232581414

$0.56

16

LOCK-TAB - Call your local BRP dealership

507020400

Unavailable

17

LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership

293800023

Unavailable

18

Wheel Ratchet

507019600

Unavailable

19

Hair Pin

507027500

Unavailable

20

Machined Caliper

507027600

Unavailable

21

Pad_Brake Kit - Call your local BRP dealership | Includes Items 19 to 20

860701700

Unavailable

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

23

RELEASE SPRING - Call your local BRP dealership

507020200

Unavailable

24

LEVER - Call your local BRP dealership

507021500

Unavailable

25

RATCHET SPRING - Call your local BRP dealership

507009400

Unavailable

26

WELDED DISK - Call your local BRP dealership

507029000

Unavailable

27

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

28

Circlip

371901300

Unavailable

29

SPRING - Call your local BRP dealership

414460600

Unavailable

30

Elastic Stop Nut M6

232561414

$0.55

31

BRAKE COVER - Call your local BRP dealership

572073800

Unavailable

32

BRAKE HOUSING - Call your local BRP dealership

572086500

Unavailable

33

Screw

414473200

Unavailable

34

Brake Switch

415085700

Unavailable

35

LH Plate

572086600

Unavailable

36

Dimmer Switch

415085800

Unavailable

37

Socket Set Screw M8 X 10

414440800

$4.12

38

FEMALE HOUSING - Call your local BRP dealership

409204200

Unavailable

39

MALE HOUSING - Call your local BRP dealership

409209300

Unavailable

40

BRAKE HANDLE - Call your local BRP dealership

572025700

Unavailable

41

PIN - Call your local BRP dealership

517229400

Unavailable

42

Spring

517229300

Unavailable

43

Brake Lever

572025200

Unavailable

44

WAVE SPRING WASHER METALCRAFT - Call your local BRP dealership

414729400

Unavailable

45

Push Nut

389804300

$0.53

46

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

47

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

48

Female Terminal PACKARD

561503200

Unavailable

49

Female Housing

409204300

Unavailable

50

Female Terminal

561503100

$2.41
