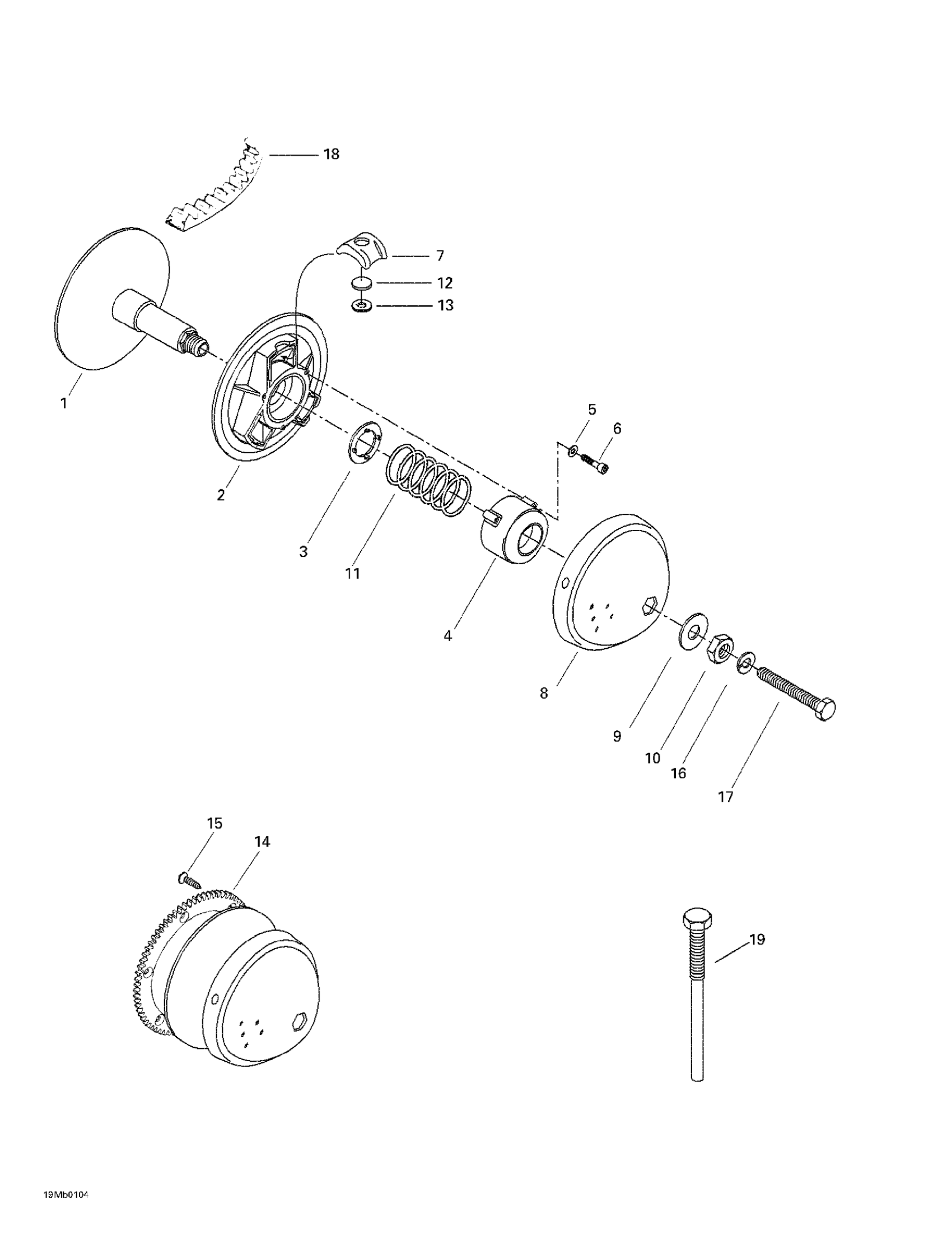

Ski-Doo Formula Deluxe 380 F, 2001 05- Drive Pulley Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 10.

417222392

Unavailable

1

Inner Flange

417121200

Unavailable

2

Outer Flange

417126531

Unavailable

3

Guide Washer | 380 F.

417116200

Unavailable

4

Spring Cover

417121400

Unavailable

5

WASHER - Call your local BRP dealership

420245370

Unavailable

6

Socket Screw M6 X 40

205064086

Unavailable

7

CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA

417118100

Unavailable

8

Cap

417125100

Unavailable

9

Washer

417122400

Unavailable

10

NUT - Call your local BRP dealership

417118300

Unavailable

11

Spring (Red/Blue)

417118400

Unavailable

12

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417120400

Unavailable

13

CAPSULE - Call your local BRP dealership | CDN, USA

417114500

Unavailable

14

Ring Gear (86 Theet) | Formula Deluxe 380 F.

414807500

Unavailable

15

SCREW-FORMING HEX.HD.GM6174M - Call your local BRP dealership | Formula Deluxe 380 F.

210361686

Unavailable

16

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

Unavailable

17

BOLT - Call your local BRP dealership

417113800

Unavailable

18

Drive Belt

415060600

$104.99

19

Puller Inner Half | 380 F.

529031400

$38.99
