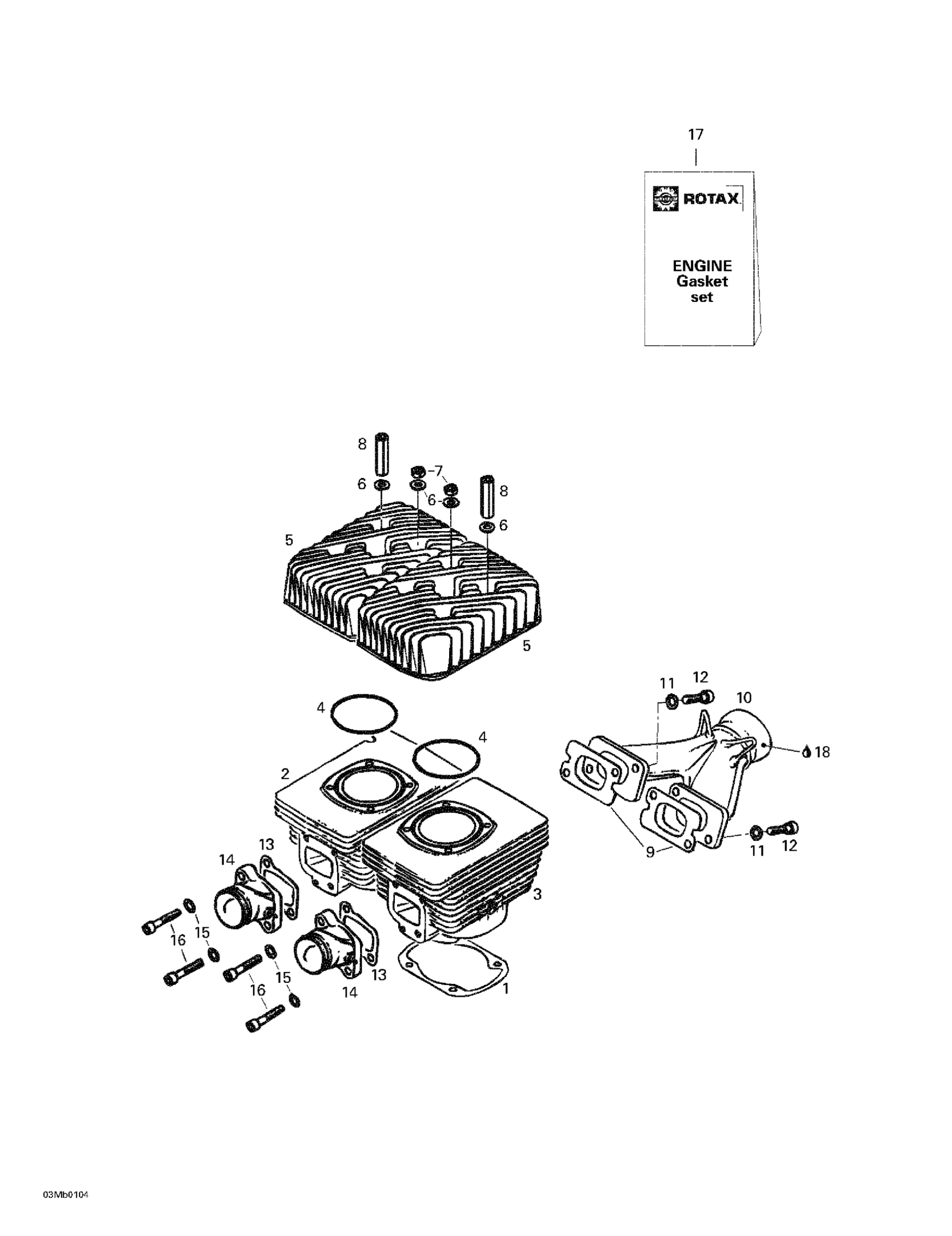

Ski-Doo Formula Deluxe 380 F, 2001 01- Cylinder, Intake Exhaust Manifold Diagram

GASKET 0.4 - Call your local BRP dealership

420430351

Unavailable

Cylinder With Sleeve, PTO

420923403

Unavailable

Cylinder With Sleeve, Mag

420923408

Unavailable

O-Ring

420931380

$12.70

Cylinder Head

420923602

Unavailable

Flat Washer 8.4 mm

420250315

$1.15

Hex. Nut M8

232081414

$0.72

Distance Nut M8

420842385

Unavailable

GASKET - Call your local BRP dealership

420850114

Unavailable

Exhaust Manifold Ass'y

420978437

Unavailable

Lock Washer 8 mm

234181401

$0.92

Socket Head Screw M8 X 30

205083044

$1.15

INTAKE GASKET 1.0 MM - Call your local BRP dealership

420831867

Unavailable

INTAKE SOCKET ASS?Y - Call your local BRP dealership

420867408

Unavailable

Washer-Lock Din.128

420945832

$1.15

Screw M8 X 35

420841591

$2.96

GASKET SET, ENGINE - Call your local BRP dealership

420994232

Unavailable

Sealant, Loctite, 80 ml | DS 650

293800090

$26.99
